Harmonica Installation Guide Technical Specifications
MAN-HARIG (Ver. 1.902)
www.elmomc.com
53

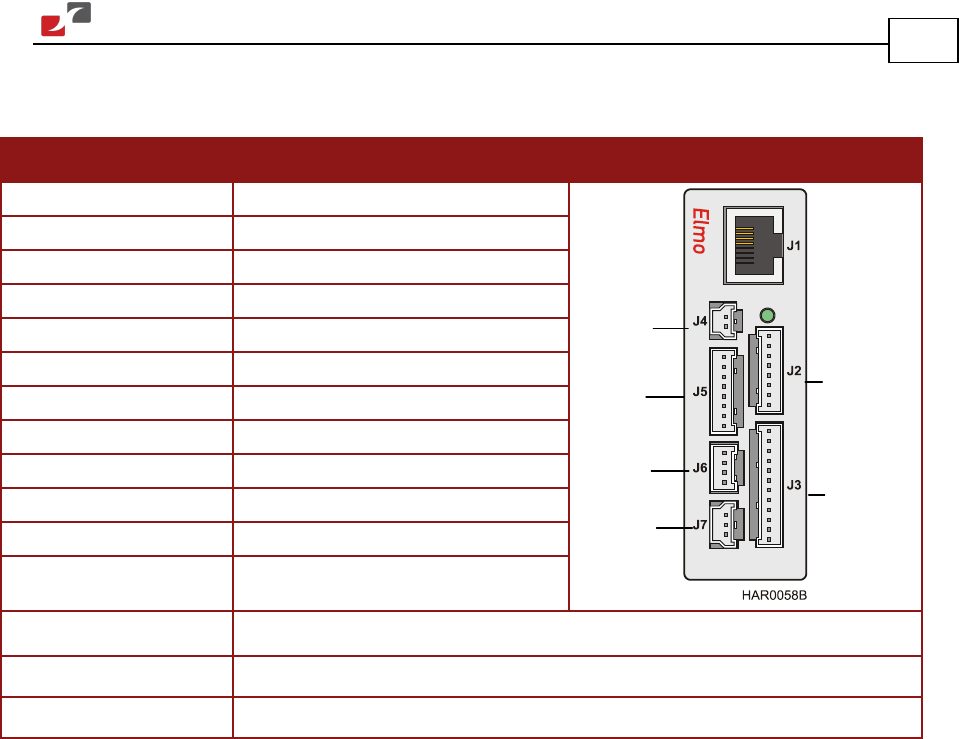

4.5.2. Control and Feedback Connector Specifications
Feature Details Connector Location
Product name Sherlock
Manufacturer Molex
Wire size 24, 26, 28, 30 AWG
Maximum current 2 A
Temperature range -40
°
C to 105
°
C (-40
°
F to 221
°
F)
Plating contact Tin/Lead (Sn/Pb)
Maximum voltage 125 V
Contact resistance < 20 m
Ω
Withstanding voltage 500 VAC
Insulation resistance > 1000 M
Ω
Terminal contact Phosphor bronze
UL files E29179, UL 94 V-0
Cable connector
Molex 35507-XX00, where XX is the number of leads
Hand crimper
Molex 63811-1200
Crimp terminal
Molex 50212
Auxiliary
Power
supply
Digital
Output
Analog
Input
Feedback B
Feedback A
Digital
Input
