4.1.7. Built-In Protection
• Software error handling
• Abort (hard stops and soft stops)
• Status reporting
• Protection against
Shorts between motor power outputs
Shorts between motor power output and power input/return
Failure of internal power supplies
Overheating
Over/Under voltage
Loss of feedback
Following error
Current limits

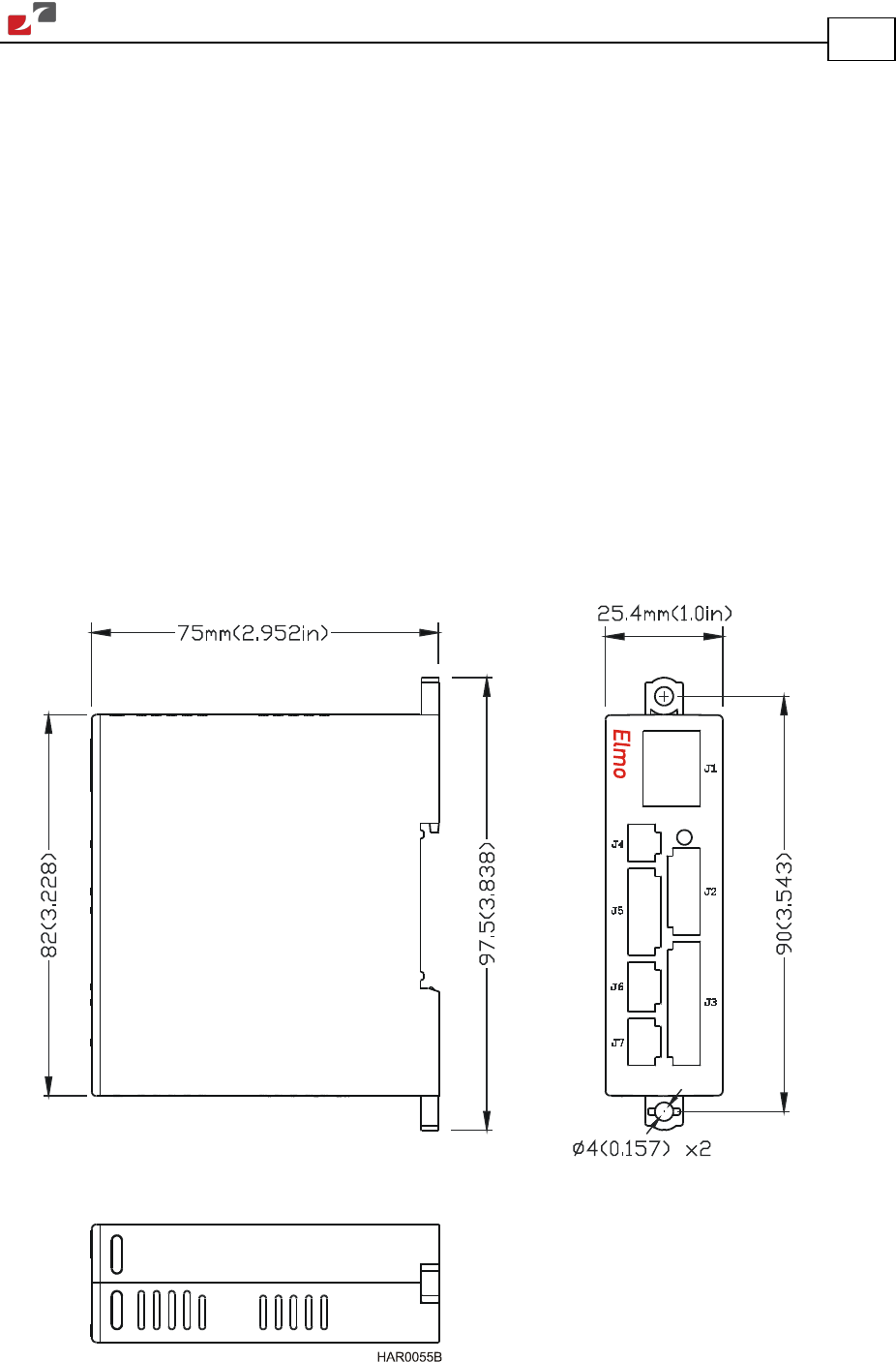

4.2. Harmonica Dimensions
