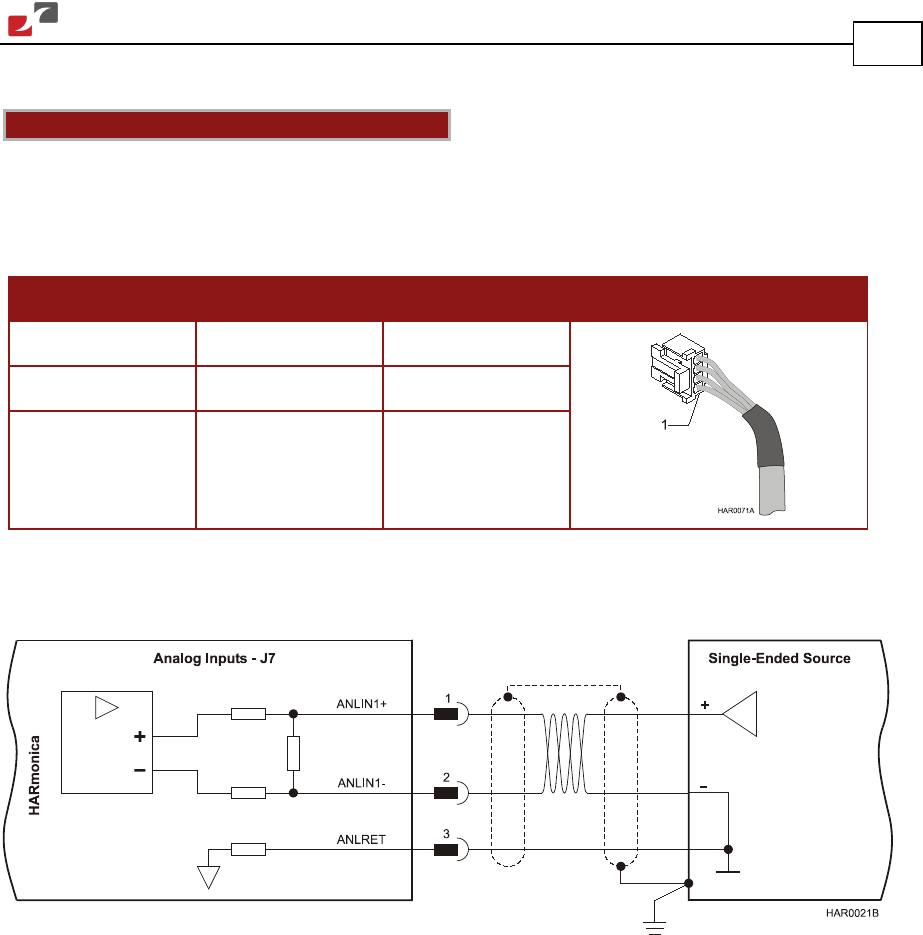

3.5.5.3.c Analog Input (Port J7)
Notes for connecting the analog input cable:
• Use 24, 26 or 28 AWG twisted pair shielded cable. For best results, the shield should have
aluminum foil and copper braid.
• Connect the cable shield to the ground near the signal source (controller).
Pin (J7) Signal Function Pin Positions
1 ANLIN1+ Analog input 1+
2 ANLIN1- Analog input 1-
3 ANLRET Analog ground
Table 10: Analog Input Cable Pin Assignments
Figure 25: Analog Input with Single-Ended Source
