Harmonica Installation Guide Installation
MAN-HARIG (Ver. 1.902)
www.elmomc.com
30
10
9
Harmonica
Feedback A
Tacho+
Tacho-
11
Tac 2 +
Tac 2 -
Tac 1 +
Tac 1 -
HAR0091A
12
Tacho+
Tacho-
Up to 20v max feedback input
(use with applications having a
tacho voltage below 20v)
Tachometer
Up to 50v max feedback input
(use with applications having a
tacho voltage between 20v and 50v)
6
4
5
+5v
SUPRET
Only one tachometer port is available at a time

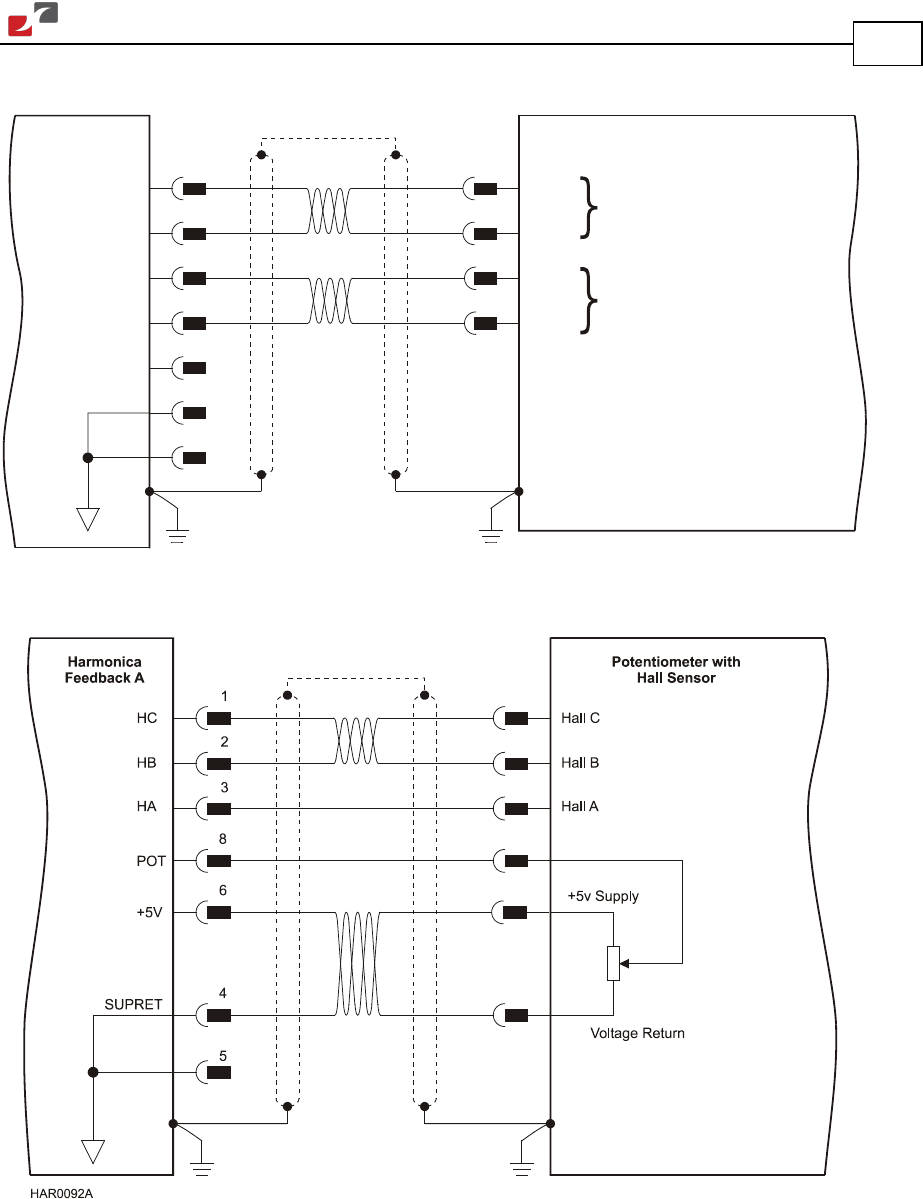

Figure 16: Main Feedback – Tachometer Feedback Connection Diagram for Brush Motors
Figure 17: Main Feedback – Potentiometer Feedback with Digital Hall Sensor Connection
Diagram for Brushless Motors
