User guide

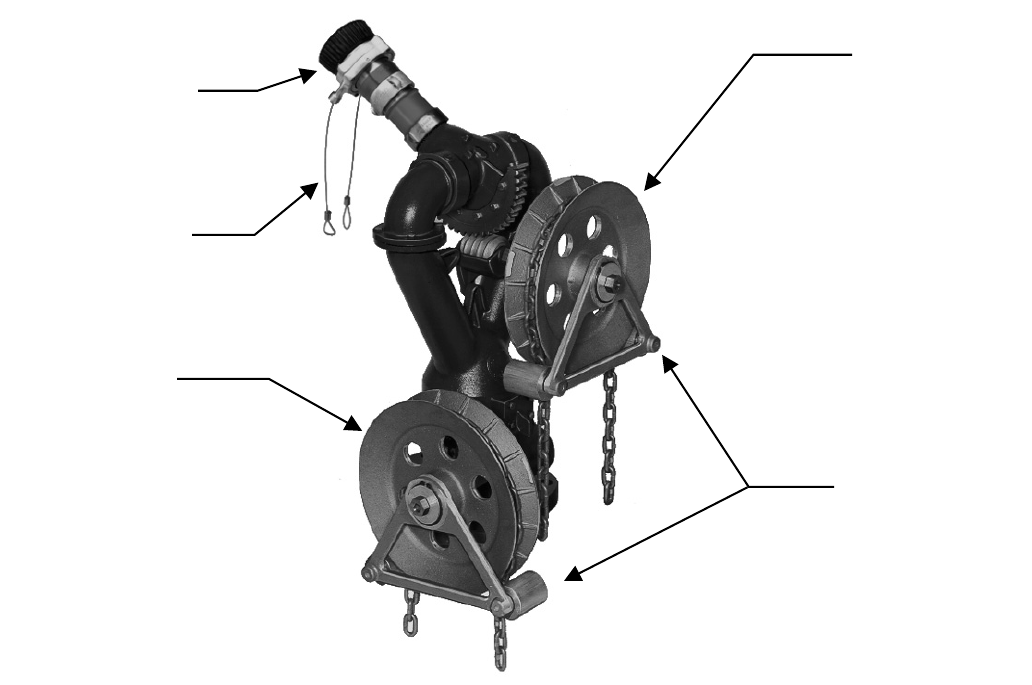

Vertical
Movement
Chain wheel
CJ-B-RC or
CJN-B-RC
Nozzle
Stream Pattern
Control Cables
Chain Wheel
Guides
Horizontal
Movement
Chain wheel
III. Operation
1. The upper Chainwheel controls the monitor’s vertical movement of 150 degrees (+90 to -60
degrees)
2. Rotating the upper Chainwheel clockwise will raise the nozzle elevation, a counter clockwise
movement lowers the nozzle elevation
3. The lower Chainwheel rotates the monitor a full 360 degrees.
4. Rotating the lower Chainwheel clockwise will rotate the monitor to the right, a counter
clockwise movement moves the monitor to the left
5. Stream pattern adjustment is accomplished by pulling on the cable guides attached to the
nozzle
