VX900-I2 USER MANUAL

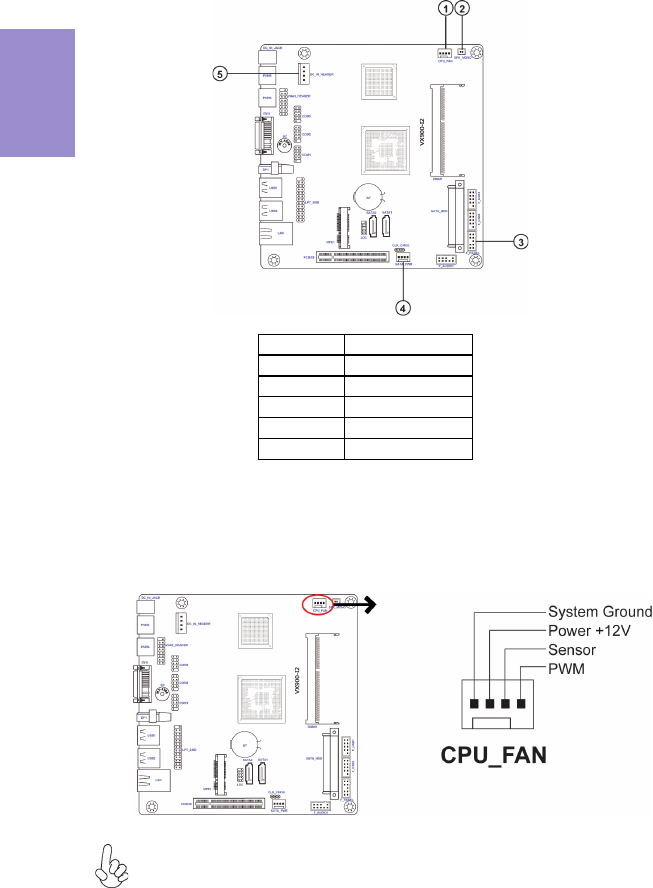

1. CPU_FAN (CPU cooling FAN Power Connector)
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
Connect the CPU cooling fan cable to CPU_FAN.
No. Components
1CPU_FAN
2SPK_MONO
3F_PANEL
4 SATA_PWR
5DC_IN_HEADER
Users please note that the fan connector supports the CPU cooling fan of 1.1A
~ 2.2A (26.4W max) at +12V.
2-4-7. Connecting Case Components
