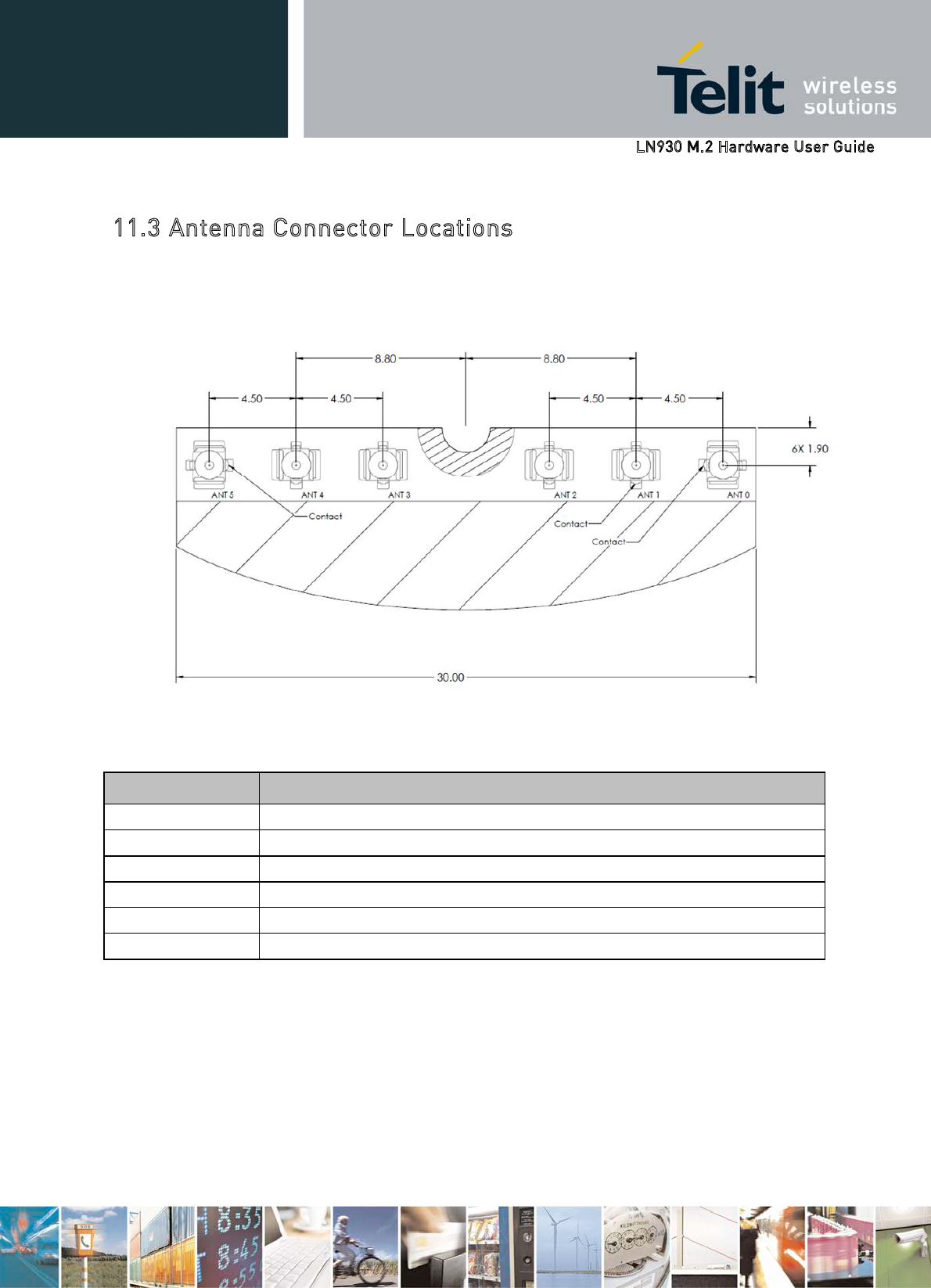

Figure 21 illustrates the locations for the main Rx/Tx antenna and the Diversity/GPS antenna.
Figure 21 Antenna Connector Location
Table 41 Antenna Connector Assignment
Antenna Interface
0 TBD
1 Diversity/ GPS
2 TBD
3 TBD
4 WWAN Main Tx/Rx
5 TBD
For M.2 Modules positions 1 and 4 are used. The other antenna connectors are not
mounted on the module.
