Instruction Manual

-44-

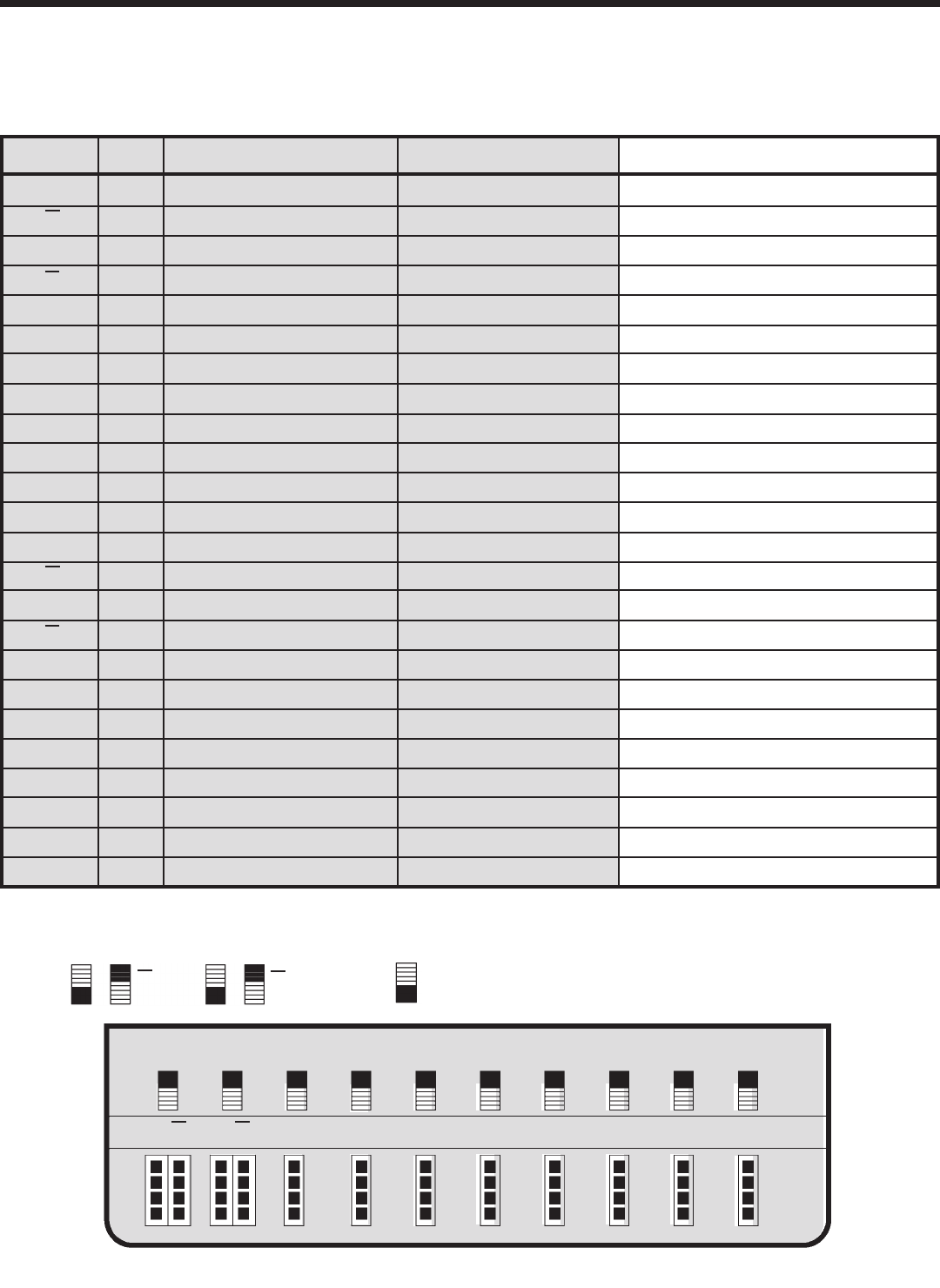

VOLTAGE ANALYSIS OF DIGITAL SECTION
P
lug the power supply into a 117 volt power source. The values given below are approximate.
From To Switch Position Volts Volts Measured
X GND In up position 5V
X GND In up position less than 1V
Y GND In up position 5V
Y GND In up position less than 1V
SW1 GND In up position 5V
SW2 GND In up position 5V
SW3 GND In up position 5V
SW4 GND In up position 5V
SW5 GND In up position 5V
SW6 GND In up position 5V
SW7 GND In up position 5V
SW8 GND In up position 5V
X GND In down position less than 1V
X GND In down position 5V
Y GND In down position less than 1V
Y GND In down position 5V
SW1 GND In down position less than 1V
SW2 GND In down position less than 1V
SW3 GND In down position less than 1V
SW4 GND In down position less than 1V
SW5 GND In down position less than 1V
SW6 GND In down position less than 1V
SW7 GND In down position less than 1V
SW8 GND In down position less than 1V
High Positions
SW1-8
XX
YY
LOGIC SW
DATA SWITCHES
XX
YY
SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8
