GLOBAL MENU
54

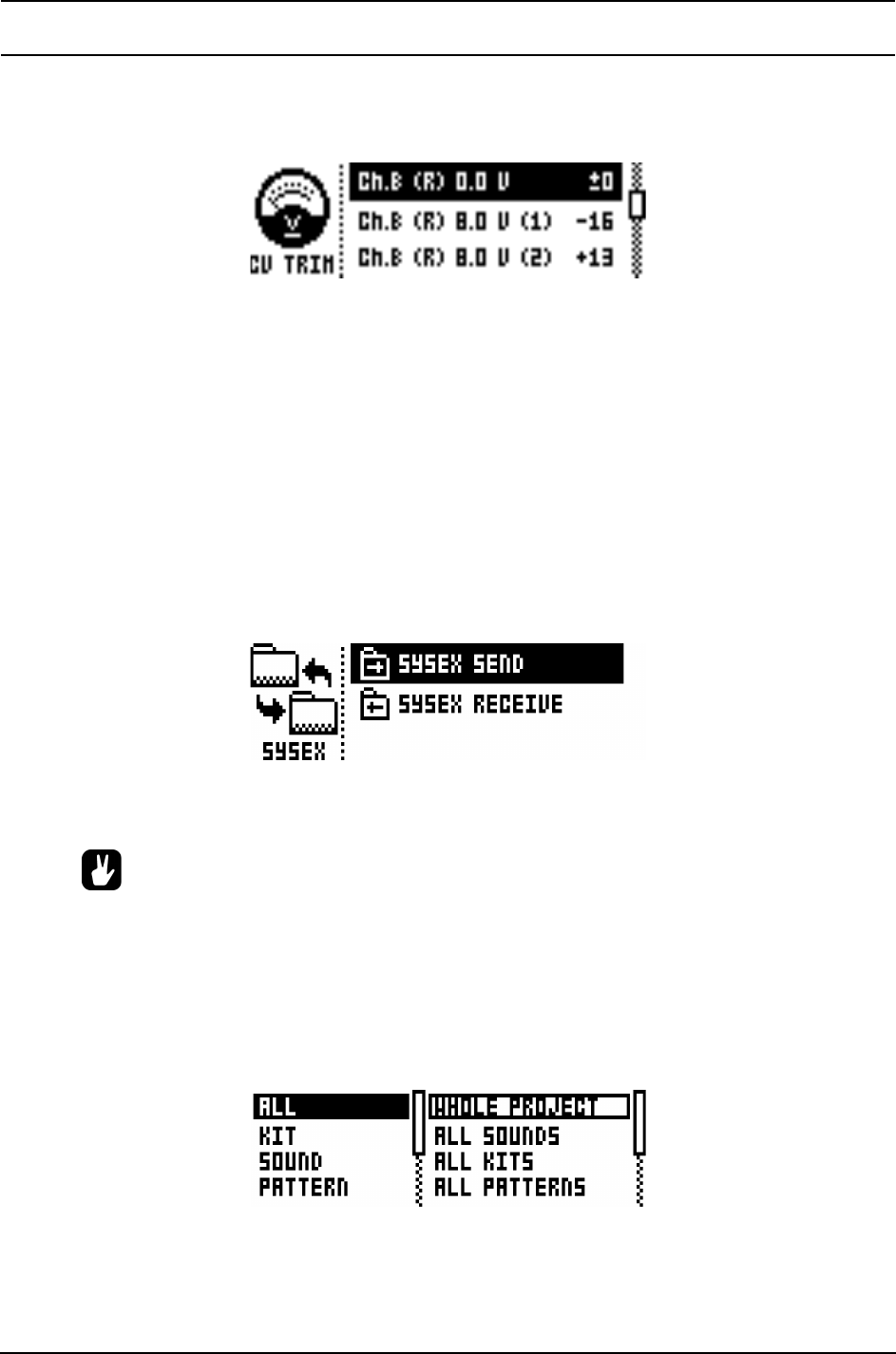

Make sure you have a good voltmeter before proceeding. Connect a TRS cable to the output you want to trim.
Connect the volt meter’s negative terminal to the sleeve of the connector. Connect the positive terminal to either
the tip or the ring of the connector, depending on the channel you wish to trim.
Each CV output has three trim settings. Begin by selecting 0 V, then press and hold the [YES/SAVE] key. 0 V is
output as long as [YES/SAVE] is held down. Use [ARROW] keys [LEFT] / [RIGHT] or DATA ENTRY KNOB A
to adjust the voltage until your voltmeter shows exactly 0 V. Repeat the process for both 8 V settings (the first
one is for continuous voltage, the second is for pulse).
Note that adjusting the CV does not actually improve CV pitch control. If you have set up pitch control of an
external synth properly then any linear error has already been compensated for by that calibration. In fact, you
will have to reconfigure the CV pitch control after changing the values in the VOLTAGE TRIM Menu, because
you will have changed the point of reference.
SYSEX DUMP
In the SYSEX DUMP menu, kits, Sounds, patterns, songs and global slots can be sent and received. Select a
menu option using [UP]/[DOWN] or the LEVEL knob. Press [YES/SAVE] to open the highlighted menu selec-
tion.
When receiving or sending SysEx data, the MIDI ports or the USB port of the Analog Four should be connected
to the external sending/receiving device.
• If the Analog Four is sending or receiving SysEx data through the MIDI ports, use the Elektron TM-
1 USB MIDI interface for up to 10x transfer speeds.
• If the external device is a computer, we recommend using our free SysEx utility C6, which can be
downloaded from the Elektron website.
SYSEX SEND
Here kits, Sounds, patterns, songs and global slots can be sent to an external device via the MIDI OUT port or
the USB port of the Analog Four.
The column to the left selects what will be backed up. Select the column using the [LEFT] arrow key. Use the
[UP]/[DOWN] keys or the LEVEL knob to navigate in the column. The SysEx data send alternatives located in
the column to the right will change depending on the selection made in the left column. Press the [RIGHT] arr-
