User guide

*MODEL190MagnaValve*

ELECTRONICSINCORPORATED

SHOTPEENINGCONTROLTECHNOLOGY

*Normallyclosed

*300lbs./min.

*110Vacor

*24Vdc

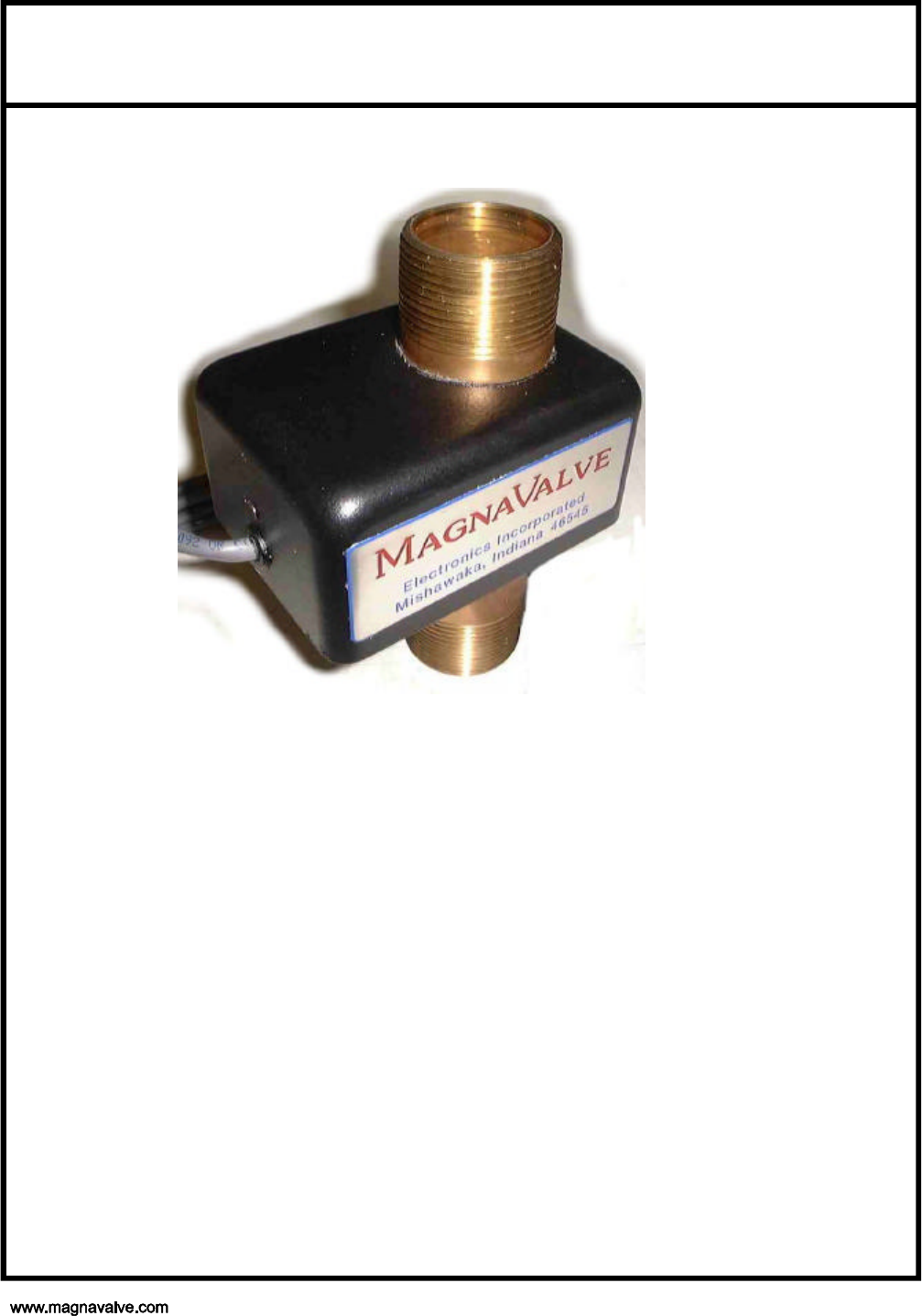

TheModel190MagnaValveisanormallyclosedmagneticvalvetypicallyused

toreplenishshothopperswithcaststeelshotorcutwireshot.

Thevalveconstructionincludesapermanentmagnetfornormallyclosed

operationandanelectromagnettoactivateshotflow.Byapplyingpowertothe

electromagnet,afullflowconditionmaybeachieved.Whenpowerisoff,the

valvewillholdshotduetothepermanentmagnet.

190_ac_dcDATA.CDR02/02/2004

*On-OffValve

*Nomovingparts

*Noaircylinders

*Steelshot/grit

*FailSafepermanent

Magnetconstruction

Preliminary

PAGE 1
* MODEL 190 MagnaValve * Preliminary * On - Off Valve * No moving parts * No air cylinders * Steel shot/grit * Fail Safe permanent Magnet construction * Normally closed * 300 lbs./min. * 110 Vac or * 24 Vdc The Model 190 MagnaValve is a normally closed magnetic valve typically used to replenish shot hoppers with cast steel shot or cut wire shot. The valve construction includes a permanent magnet for normally closed operation and an electromagnet to activate shot flow.
PAGE 2
* MODEL 190 MagnaValve * Preliminary SPECIFICATIONS VALVE 5” Input : 80-125VAC @ 2A or 23-25 Vdc @ 2A Output : 300 lbs./min. Media: Steel shot Mode: Normally closed Temp. Range : 32 - 167° F 0 - 75° C LED: Red for flow Note: The MagnaValve is designed to operate in a vertical position and must be mounted within 5 degrees of vertical. Model 190 DC CPN # 999337 Model 190 AC CPN # 999338 56790 Magnetic Drive, Mishawaka, In.
