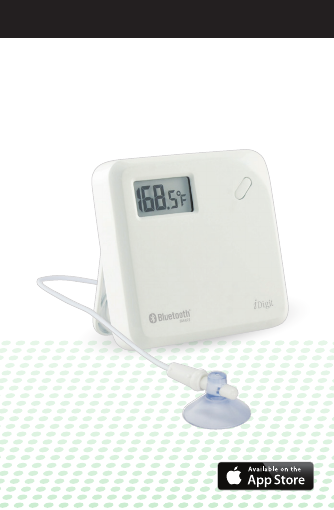

Instruction Manual Bluetooth Thermometer Logger Wire
Main Unit Location of Control 1. 2. 3. 4. 5. Pair Reset Temperature Probe Battery Compartment Battery Door 2 4 RESET 1.5V''AA'' 1.
Features Thanks you for purchasing the BTL - Wire. This product is designed as a BTL- Wire by working with Ipad, Iphone , IPod or other IOS devices. • • • • • • Support IOS version 7.1 or above Support Bluetooth version 4.0. Fahrenheit / Celsius reading. Operating temperature from 0°C to 50°C Temperature measuring range from -50°C to 70°C Temperature display with logging up to 14000 data and graphical display in app Before you start using it • Please make sure to read the instruction manual carefully.
Getting started 1. Install battery: 1.1 Open the battery door. 1.2 Insert AA x 2 batteries in polarity (+) and (-) as indicated. 1.3 Close the battery Door. RESET 1.5V''AA'' 1.5V''AA'' 2. Install BTL App on your device. 2.1 Access App Store and search for “BTL”. 2.2 Select and install BTL into your device.
Pairing the BTL Wire 3. Pair the BTL Wire with the BTL app. 3.1 Before running the BTL app, make sure the Bluetooth in turned ON at your I-device. 30 20 3.2 After you tap the app icon screen appears. , the ‘Nearby Devices’ 10 Wire You need to pair the BTL- Wire device before you enter the main app screen.
Pairing the BTL Wire 3.3 Press the “Pair” button of the BTL - Wire. The new BTL_XXXX will be displayed on the App “Pair New Device’, it is ready for Pairing. Tap the BTL_XXXX will start the pairing and connection process. The BTL Pro will BI-BI sound. Once the BTL-Wire is paired. It will show on Paired Device. 3.4 Tap the BTL_XXXX at Paired device, which you want to connect to i-device. 3.5 App will ask you to setting the new parameter or use the Pervious setting (When open at second times).
View the Maximum - Minimum and Average reading During started the experiment. User can slide the temperature reading to view the Maximum - Minimum or Average reading of the experiment.
Edit the Experiment name name: Tap the experiment name location. User can edit the name of the experiment.
Set the Experiment Parameter Start the experiment. User need to set some parameter at the first use, otherwise it will use the default setting. For next experiment, user can use the pervious setting or setting again.
Set the Temperature Alert & Change the temperature reading You can set the range of the temperature alert. Use the rolling dial to set the Maximum and Minimum temperature. Press the Done to confirm the setting. If the measure temperature out of the setting. It will pop –up message and alert sound. To select either Fahrenheit / Celsius need to go Settings page to choose the selection. After setting the app will show user selected reading.
Set the Sampling interval You can set the sampling interval by temperature only. Use the rolling dial to choice the desired temperature range. Press the Done to confirm the setting.
Set Sampling interval section number You can choice the no. (1-3) of section for the sampling. Use the rolling dial to choice the desired sampling section number. Press the Done to confirm the setting.
Recorded You can check your record by press the Recorded at setting menu. Press the Recorded you can view the history of record.
Share the information You can share the cooking information include Image / PDF and CSV through the social app, which install at your idevice.
Notes Writing You can write notes on your aexperiment record by tap “ Add Notes ”. The notes will attach to your experiment record history and can share through the information sharing device.
RTL Wire unit buzzer space Manufacturer reserves the right to update the contents of this manual and App.
Disposal of Your Old Product Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste.
