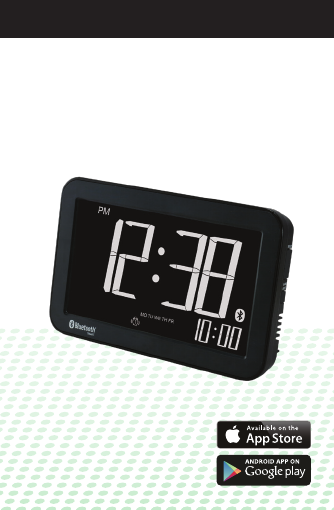

Instruction Manual Bluetooth Alarm Clock with temperature and humidity sensor
Main Unit Location of Control 1. Snooze button 2. 3. 4. 5. 6. Alarm Pair Scroll Reset Battery Compartment 7. Battery door 8. Stand 1 3 PAIR SCROLL RESET 5 4 1.5V''AA'' 6 2 1.
Features Thank you for purchasing the BLE Alarm Clock. This product is designed as a BLE Alarm Clock by working with your mobile devices. - Support Bluetooth version 4.0. - Set wake up buzzer alarm with snooze function, up to 5 alarms. - Take full control of the BLE Alarm Clock with device app via Bluetooth Low Energy. - Selectable alarm tone pattern and volume to different alarms.
Getting started 1. Install battery 1.1 Open the battery compartment. 1.2 Insert 2 x AA batteries in polarity (+) and (-) as indicated. 1.3 Close the battery compartment. PAIR 1.5V''AA'' SCROLL RESET 1.5V''AA'' 2. Install BleAlarm App on your device. 2.1 Access App Store and Google play search for BleAlarm . BLE ALARM 2.2 Select and install BleAlarm App on your mobile device.
Pairing the BLE Alarm Clock 3. Pair the BLE Alarm Clock with BleAlarm app. 3.1 Before running the BleAlarm app, make sure the Bluetooth is turned ON at your device. 3.2 After you tap the app icon , the ‘Nearby Devices’ screen appears. You need to pair the BLE Alarm Clock device before you enter the main app screen.
Pairing the BLE Alarm Clock BLE Alarm Clock 3.5 The new BLE Alarm Clock will be displayed on App and is ready for pairing. Tap the "BLE Alarm Clock" will start the pairing and 3.4 Press and hold the [PAIR] connection process. Once button on the BLE Alarm Clock device for 5 seconds. the BLE Alarm Clock is paired, it will start time and You can find that the icon start to blink. data synchronization. 3.3 Tap “ Pair New Device” to search for nearby devices.
Pairing the BLE Alarm Clock 3.
Pairing the BLE Alarm Clock 3.7 When the BLE Alarm Clock is paired with one device, other devices cannot pair with it again. 3.8 One device can pair with maximum 5 BLE Alarm clocks. 3.
Rename the BLE Alarm Clock 4. Rename the device. Tap the device name (default is “BLE Alarm Clock”) at the top of the screen to edit the device name.
Battery status indicator 5. Battery status indicator It indicates the battery level of your BLE Alarm Clock device. While the battery level drops below 20%, the battery icon is in red status and a low battery warning will pop up for to remind battery replacement. Meanwhile, low battery indicator icon will shown on the alarm clock LCD. Above 60% Between 20% ~ 60% Warning Below 20% BLE Alarm clock:Battery level very low! Please replace device batteries.
Setting the alarm time 6. Setting the alarm time 6.1 Each BLE Alarm Clock can set up maximum 5 Alams. On the main screen. Tap individual alarm e.g. Alarm1 to enter the alarm setting page Alarm 1 6.2 The alarm setting screen appears. You can edit and adjust different items on this screen, which include: i) Alarm Name: Tap alarm 1- 5 to edit your preferred name to this alarm. ii) Time: Tap to adjust the time for this alarm. iii) Day of Week: Tap to select which day of week to enable the alarm.
Setting the alarm time v) Alarm volume level: Tap to select the alarm sound volume level (three options: Low, Med and High). 6.3 Complete the alarm setting. i) ii) Tap [Done] to save the alarm setting and turn on the alarm. At the main screen,user can turn the alarm on / off by scrolling the right and left On Off 6.4 Stop the alarm via app. i) When the alarm clock is alarming, you can enter the alarm by tapping the notification on device. ii) There is an “ ” icon at the right hand side of the row.
Snooze operation 7. Using the SNOOZE function 7.1 When the alarm sounds, press the [Snooze] button to get an extra 5 minutes of sleep. The snooze will repeat up to three times. 7.2 The above default value is set by the factory. User can set the “Maximum Snooze” and “Snooze Duration” in the preference screen.
To turn off the alarm 8. To disable the alarm 8.1 When the alarm sounds, press the [Snooze] button once or press [Alarm] to disable the alarm. 8.2 The alarm will sound for 1 minute and stop automatically. If Snooze Enabled setting is ON, the alarm will repeat every 5 minutes. You can press the [Snooze] button to interrupt the alarm momentarily, or can press [Alarm] button to turn off the alarm and stop the snooze function completely. 8.
Setting the Timer 9. To set the timer Tap timer of main screen and go into timer screen. 9.1 You can edit and adjust items below on this screen. i) Timer period: Scroll to adjust the timer period. Sound pattern: Tap to select the tone pattern (5 patterns plus one random pattern available). iii) Sound volume level: Tap to select the sound volume level (three options: Low, Med and High).
Setting the timer 9.2 Using the Timer In the Home screen, you can tap “Start” under Timer to start counting. Then you can tap “Stop” to stop the current timer and “Start” to re-continue the timer again. The timer can be reset by tapping the [Reset].
Delete the BLE Alarm Clock record 10. Delete the BLE Alarm Clock record. BLE Alarm Clock You can tap the at Nearby Devices screen to Alarm Clock enter the Known Devices page. By tapping “Edit” and then the , you can select “Delete” to delete the BLE Alarm Clock record on the current device.
Preference 11) Preference setting Tap the to enter the Preference screen. You can edit and adjust the following items on this screen. 11.1 Snooze Enabled: Tap to select ON/OFF to enable /disable the Snooze function. If 'Snooze Enabled is ON, you will have two more options, which are: Maximum Snoozes:The maximum number of times to repeat the snooze function, which can be set to Unlimited or values from 1 to 9.
Preference 11.2 Alarm Sound Duration: The alarm duration, which can be set to values from 1 to 15 minutes. 11.3 Auto DST update: It will adjust Daylight Saving Time (DST) automatically based on your device time zone setting. The alarm clock will be automatically one hour ahead of Standard Time in summer time and will be back to the normal Standard Time when back to winter time, according to your device’s time zone. 11.
Reset the BLE Alarm Clock 12. Reset the BLE Alarm Clock 1) Pull down flip over stand to access battery compartment 1 1 2 2 2) Insert stand into the back case BLE Alarm Clock If the BLE Alarm Clock is not working properly, try to press RESET button to resume default setting. The LED flashes twice in (purple) color, then the LED will flash once per 6 seconds in red color. After reset, all data in the BLE Alarm Clock is deleted. Press and hold the [PAIR] button again to re-pair the BLE Alarm Clock.
Temperature Relative Reset the BLEand Alarm ClockHumidity 13. Current Temperature and Relative Humidity (Conditions) 13.1 The unit can measure temperature and relative humidity. The current temperature and humidity reading will be shown on the App or you can browse it on the BLE Alarm Clock LCD screen by pressing the “Scroll” button.
Temperature Relative Reset the BLEand Alarm ClockHumidity 13.2 The unit can accumulate temperature / humidity reading up to 7 days. To read the data tap the conditions then go into the historical chart showing temperature / relative humidity reading by time and date, including the maximum and minimum record of each day. Number of historical record stored in app can more than 7 days depends on your idevice memory.
Temperature Relative Reset the BLEand Alarm ClockHumidity 13.3 Reading history chart without alarm clock connection At the Nearby Devices page, you can tap the history chart icon at the right hand side of the row to go to the history chart page.
Scrollthefunction Reset BLE Alarm C 14. You can press the [Scroll] button on the BLE Alarm Clock to switch between different information manually. Or you can press and hold the [Scroll] button to enable/disable auto-scrolling display function. 14.
Scroll function “Temperature and humidity with clock mode” ”Clock with alarm time mode” (show if any alarm enabled) TIMER mode (only if the timer is running) 14.2 In auto-scrolling mode, each mode will stay 3 seconds and then switch to next display.
BLE Alarm Clock unit buzzer space Manufacturer reserves the right to update the contents of this manual and App.
Disposal of Your Old Product Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste.
