With the K3 right side up, plug the speaker wire into P25 on the KIO3 board at the left rear of the K3 as
shown in Figure 6.
TO SPEAKE
R
ORIENT
CONNECTOR
AS SHOWN
KIO3 BOARD
IN BACK LEF
T
CORNER OF
CHASSIS

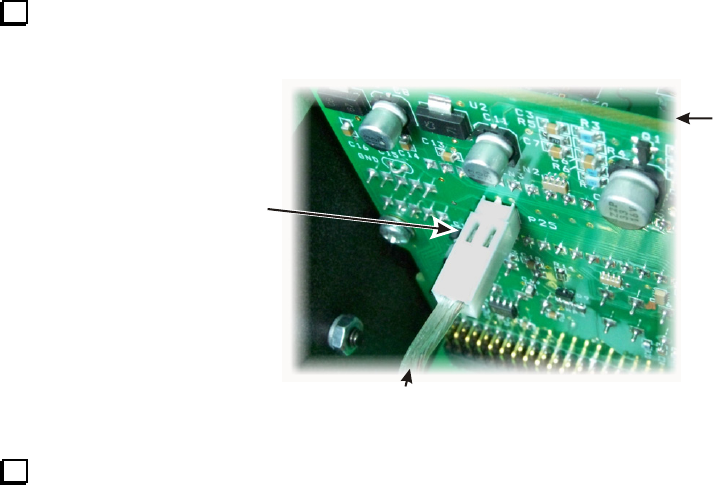

Figure 6. Connecting Speaker Cable.
Position the top cover on the K3. Note that the tab on the back center goes under the rear lip of the K3 rear
panel. Secure the top cover with the nine 4-40 3/16” black flat head screws you removed earlier.
That completes the installation of your new crystal I.F. filters.
