Installation guide

1-14 Installing the StormPort 401 eSled Modem
Revision 1.0 Storm Port 401 eSled Modem Installation Guide
08-00025-01
Task:
Installing the Modem
Note: Some PCs and laptops require an adapter between the RJ-45
Ethernet cable and the Ethernet connector on the PC/laptop (the
adapter is often a round, 8-pin connector).
Step Action
1 Make sure all of the StormPort 401 eSled Modem equipment is
available before proceeding.

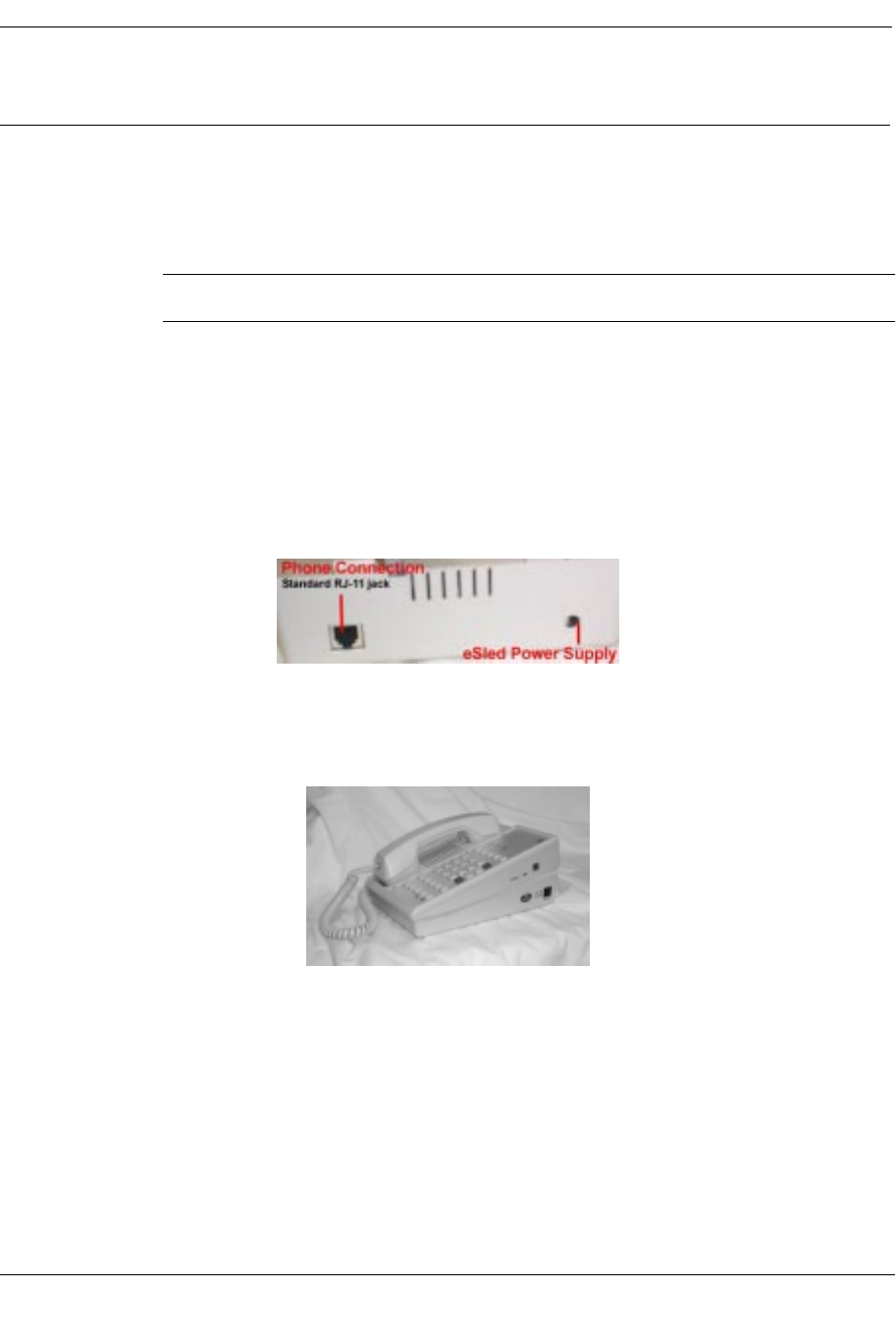

2 The modem is connected with an RJ-11 modular phone line cord to the
telephone wall jack. Insert one end of the RJ-11 cord into the telephone
wall jack and insert the other end into the jack in the rear of the
StormPort 401 eSled modem, as shown below:
3 Slide the phone set onto the modem, as shown below:
4 Connect the modem to the phone set with the second RJ-11 connector
attached to the modem.
5 The modem is connected to the computer with an RJ-45 Ethernet cable
(RJ-45 Ethernet cable is not included). Insert one end of the RJ-45
cable into the 10Base-T Ethernet card connector on the computer, and
the other end into the Ethernet port on the side of the StormPort 401
eSled modem.
