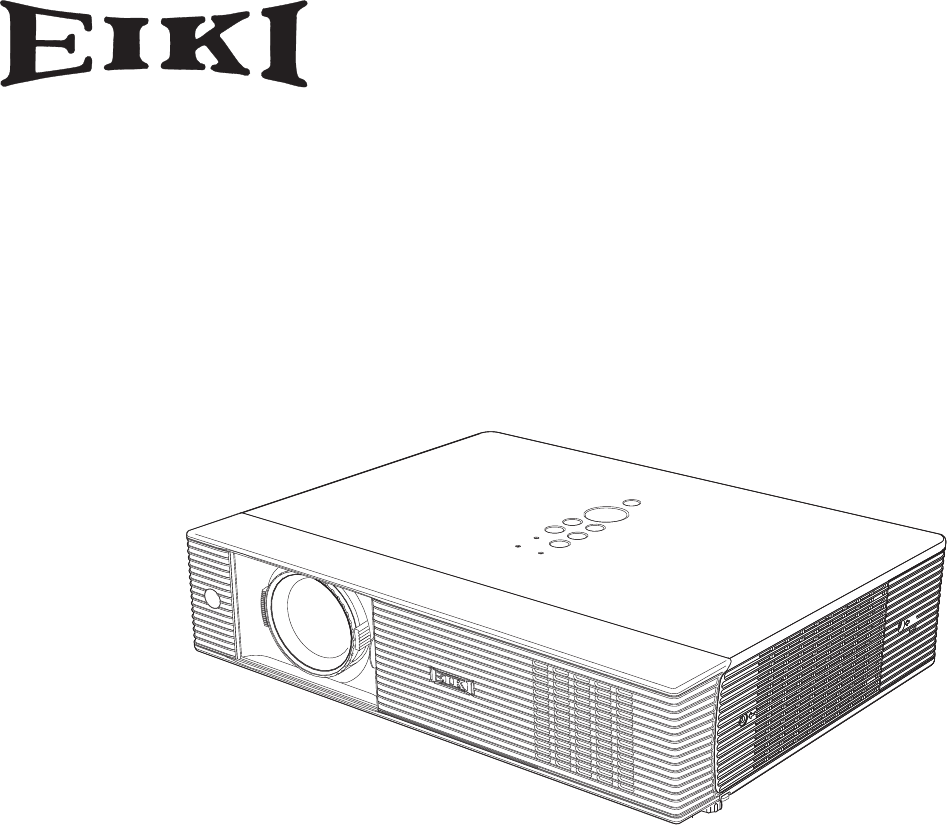

Multimedia Projector MODEL LC-XB42 Owner's Manual
Features and Design This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. ◆ Compact Design ◆ This projector is designed compact in size and weight. It is easy to carry and installed anywhere you wish to use. ◆ *Some restriction required, see page 7.
Table of Contents Features and Design . . . . . . . . . . . . . . . . . . . 2 Table of Contents . . . . . . . . . . . . . . . . . . . . . 3 To the Owner . . . . . . . . . . . . . . . . . . . . . . . . . 4 Safety Instructions . . . . . . . . . . . . . . . . . . . . 5 Air Circulation Moving the Projector Installing the Projector in Proper Directions 6 6 7 Compliance . . . . . . . . . . . . . . . . . . . .
To the Owner Before installing and operating this projector, read this manual thoroughly. This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in good condition for many years to come. Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents.
Safety Instructions All the safety and operating instructions should be read before the product is operated. Do not install the projector near the ventilation duct of air-conditioning equipment. Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. This projector should be operated only from the type of power source indicated on the marking label.
Safety Instructions Air Circulation Moving the Projector Openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. When moving the projector, close the Slide Shutter and retract adjustable feet to prevent damage to the lens and cabinet. CAUTION Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken.
Safety Instructions Installing the Projector in Proper Directions Use the projector properly in specified positions. Improper positioning may reduce the lamp life and result in severe accident or fire hazard. This projector can project the picture upward, downward, or backward, perpendicular to the plane of the screen as shown in the figure below.
Compliance Federal Communications Commission Notice Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Part Names and Functions Front ① Infrared Remote Receiver ② Focus Ring ③ Projection Lens ④ Zoom Lever ⑤ Slide Shutter CAUTION Do not turn on a projector with slide shutter closed. High temperature from light beam may damage slide shutter and result in fire hazard. ⑦ ① ② ③④ ⑤ ⑥ ⑦ ⑥ Top Controls and Indicators ⑦ Air Intake Vent Back ⑧ ⑧ Exhaust vent CAUTION Hot air is exhausted from the exhaust vents. Do not put heat-sensitive objects near this side.
Part Names and Functions Rear Terminal ① ② ③ ⑤ ① SERVICE PORT This jack is used to service the projector. ② COMPUTER IN 2/COMPONENT IN Connect the computer or component video (or RGB Scart) output signal to this terminal. Use the supplied VGA cable or a Component-VGA cable (not supplied). ③ MONITOR OUT This terminal can be used to output the incoming RGB signal from COMPUTER IN 1 terminal or COMPUTER IN 2/COMPONENT IN terminal to the other monitor (p.16).
Part Names and Functions Top Control ① ⑦ ② ⑧ ③ ⑨ ④ ⑩ ⑤ ⑥ ① LAMP REPLACE indicator Lights yellow when the projection lamp reaches its end of life (pp.57, 65). ② ON/STAND–BY button Turn the projector on or off (pp.19–20). ③ INPUT button Select an input source (pp.27, 36–37). ④ KEYSTONE button ⑦ WARNING indicator –Lights red when the projector detects an abnormal condition. –Blinks red when the internal temperature of the projector exceeds the operating range (pp.54, 65).
Part Names and Functions Remote Control ① ON/STAND-BY button Turn the projector on or off. (pp.19, 20) ③ ② ① ② VIDEO button Select VIDEO input source. (pp.25, 36) ③ COMPUTER button Select COMPUTER input source. (pp25, 27, 37) ④ MENU button Open or close the On-Screen Menu. (p21) ⑤ Point ▲▼◄►( VOLUME + / – ) buttons – Select an item or adjust the value in the On-Screen Menu. (p21) – Pan the image in Digital zoom + mode. (p35) – Adjust the volume level.
Part Names and Functions Remote Control Battery Installation 1 Open the battery compartment lid. 2 Install new batteries into the compartment. 3 Replace the compartment lid. Two AA size batteries For correct polarity (+ and –), be sure battery terminals are in contact with pins in the compartment. To ensure safe operation, please observe the following precautions: ● Use two (2) AA or LR6 type alkaline batteries. ● Always replace batteries in sets. ● Do not use a new battery with a used battery.
Installation Positioning the Projector For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the screen. Notes: • The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image. • All measurements are approximate and may vary from the actual sizes. A ：B ＝ 9 ：1 37.6’ (11.47 m) 23.6’ (7.2 m) 300" 15.7’ (4.8 m) Max. Zoom 11.8’ (3.6 m) 200" 7.9’ (2.
Installation Connecting the AC Power Cord This projector uses nominal input voltages of 100-120 V or 200–240 V AC and it automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. If you are not sure of the type of power being supplied, consult your authorized dealer or service station.
Installation Connecting to a Computer Cables used for connection • VGA Cable (Mini D-sub 15 pin)* • Audio Cables (*One cable is supplied; other cables are not supplied with the projector.
Installation Connecting to Video Equipment Cables used for connection • Video and Audio Cable (RCA x 3) • S-VIDEO Cable • Audio Cable (Cables are not supplied with the projector.) Composite Video and Audio Output (Video) S-video Output (L) (R) External Audio Equipment Video and audio cable S-video cable Audio Input VIDEO AUDIO IN S-VIDEO Audio cable (stereo) AUDIO OUT (stereo) Notes: • When the AUDIO OUT is plugged-in, the projector’s built-in speaker is not available.
Installation Connecting to Component Video Equipment Cables used for connection • Audio Cables • Scart-VGA Cable • Component Cable • Component-VGA Cable (Cables are not supplied with the projector.
Basic Operation Turning On the Projector 1 Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector. 2 Connect the projector’s AC power cord into an AC outlet. The POWER indicator lights red. Open the slide shutter (see pages 9,56). Press the ON/STAND-BY button on the top control or on the remote control. The POWER indicator lights green and the cooling fans start to operate. The preparation display appears on the screen and the count down starts.
Basic Operation Turning Off the Projector 1 Press the POWER ON/STAND-BY button on the top control or on the remote control, and “Power off?” appears on the screen. 2 Press the POWER ON/STAND-BY button again to turn off the projector. The POWER indicator starts to blink red, and the cooling fans keep running. (You can select the level of fans’ quietness and speed. See “Fan” on page 52.) At this time, you can unplug the AC power cord even if the fans are still running.
Basic Operation How to Operate the On-Screen Menu The projector can be adjusted or set via the On-Screen Menu. For each adjustment and setting procedure, refer to the respective sections in this manual. Top Control MENU button 1 Press the MENU button on the top control or the remote control to display the On-Screen Menu. 2 Use the Point ◄► buttons to select a Menu icon. Use the Point ▲▼ buttons to select an item in the selected menu. 3 Press the SELECT button to show the item data.
Basic Operation Menu Bar For detailed functions of each menu, see “Menu Tree” on pages 63-64. For computer source Guide Window PC System Menu Image Select Menu Screen Menu Setting Menu Show the selected Menu of the On-Screen Menu. Used to select computer system. (p.28) Used to select an image mode among Dynamic, Standard, Real, Blackboard(Green), and Image 1 ~ 4. (p.32) Used to adjust size of image. [Normal / True / Wide / Full / Custom / Digital zoom +/–] (pp.
Basic Operation Zoom and Focus Adjustment Rotate the Zoom Lever to zoom in and out. Rotate the Focus Ring to adjust the focus of the image. Zoom Lever Focus Ring Auto Setup Function Auto setup function is provided to automatically correct Keystone distortion according to the projector’s tilt and adjust the computer display parameters (Fine sync, Total dots, and Picture position) by just pressing the AUTO SETUP button on the top control.
Basic Operation Sound Adjustment Top Control Direct Operation VOLUME+/buttons Volume Press the VOLUME+/– buttons on the top control or on the remote control to adjust the volume. The volume dialog box appears on the screen for a few seconds. Remote Control Mute Press the MUTE button on the remote control to temporarily turn off the sound. To turn the sound back on, press the MUTE button again or press the VOLUME +/– buttons. The Mute function is also effective for the AUDIO OUT jack.
Basic Operation Remote Control Operation Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu. COMPUTER/VIDEO button Remote Control Press the COMPUTER or VIDEO button on the remote control to select the input source. See pages 27, 36-37 for details.
Basic Operation NO SHOW button Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO SHOW button again or press any other button. When a projected image is captured and set as “User” in the Logo selection (p.45), the screen changes each time you press the NO SHOW button as follows. black out the captured image normal ••••• “No show” disappears after 4 seconds. P-TIMER button Press the P-TIMER button on the remote control.
Computer Input Input Source Selection Direct Operation Top Control INPUT button Choose either Computer 1 or Computer 2 by pressing the INPUT button on the top control or press the COMPUTER button on the remote control. Before using these buttons, correct input source should be selected through Menu operation as described below. Computer 1 Computer 2 VIDEO REMOTE CONTROL COMPUTER button Computer 1 Computer 2 Menu Operation 1 Press the MENU button to display the On-Screen Menu.
Computer Input Computer System Selection This projector automatically tunes to various types of computers based on VGA, SVGA, XGA, SXGA, WXGA, or UXGA with its Multi-scan system and Auto PC Adjustment. If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (Signal formats provided in this projector are shown on pages 66.
Computer Input Auto PC Adjustment Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical positions to conform to your computer. Direct Operation Remote Control The Auto PC adjustment function can be operated directly by pressing the AUTO PC button on the remote control. AUTO PC button Menu Operation PC Adjust Menu Auto PC Adj. 1 Press the MENU button to display the On-Screen Menu.
Computer Input Manual PC Adjustment Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has five independent memory areas to store those parameters manually adjusted. It allows you to recall the setting for a specific computer. 1 Press the MENU button to display the On-Screen Menu.
Computer Input Display area H Use the Point ◄► buttons to adjust the horizontal area displayed by this projector. Display area V Use the Point ◄► buttons to adjust the vertical area displayed by this projector. Move the red frame pointer to the desired item and press the SELECT button. Reset To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select [Yes]. All adjustments will return to their previous figures.
Computer Input Image Mode Selection Direct Operation Remote Control Select the desired image mode from among Dynamic, Standard, Real, Blackboard (Green), Image 1, Image 2, Image 3, and Image 4 by pressing the IMAGE button on the remote control. Dynamic For viewing pictures in a bright room. IMAGE button Dynamic Standard IMAGE button Real Blackboard(Green) Standard Normal picture mode preset on the projector. Image 1 Real Picture mode with improved halftone for graphics.
Computer Input Image Adjustment 1 Press the MENU button to display the On-Screen Menu. Use the Point ◄►buttons to move the red frame pointer to the Image Adjust Menu icon. 2 Use the Point ▲▼ buttons to move the red frame pointer to the desired item and then press the SELECT button to display the adjustment dialog box. Use the Point ◄► buttons to adjust the setting value. Image Adjust Menu Image Adjust Menu icon Move the red frame pointer to the desired item and then press the SELECT button.
Computer Input Store To store the adjusted data, select Store and press the SELECT button. Use the Point ▲▼buttons to select one from Image 1 to 4 and press the SELECT button. A confirmation box appears and then select [Yes]. Stored data can be called up by selecting an “Image (1–4)” in the Image Mode Selection on page 32. Image Mode Menu Move the red frame pointer to an image item to be set and then press the SELECT button. Quit Exit the Image Adjust Menu.
Computer Input Custom Adjust the screen scale and position manually with this function. Press the SELECT button at Custom and the “Custom” is displayed on the screen for a few seconds and then the Aspect dialog box appears. Scale H/V........... Adjust the Horizontal/Vertical screen scale. H&V.................... When set to “On,” the aspect ratio is fixed. The “Scale V” appears dimmed and becomes unavailable. Adjust “Scale H,” then the screen scale is automatically modified based on the aspect ratio.
Video Input Input Source Selection (Video, S-video) Direct Operation Top Control INPUT button Choose Video by pressing the INPUT button on the top control or the VIDEO button on the remote control. Before using these buttons, correct input source should be selected through menu operation as described below. Computer 1 Computer 2 VIDEO REMOTE CONTROL VIDEO button Menu Operation 1 2 Input Menu icon Input Menu Press the MENU button to display the On-Screen Menu.
Video Input Input Source Selection (Component, RGB Scart 21-pin) Direct Operation Top Control INPUT button Choose Computer 2 by pressing the INPUT button on the top control or press the COMPUTER button on the remote control. Before using these buttons, correct input source should be selected through Menu operation as described below. Computer 1 Computer 2 Video Menu Operation 1 REMOTE CONTROL COMPUTER button Press the MENU button to display the On-Screen Menu.
Video Input Video System Selection 1 Press the MENU button to display the On-Screen Menu. Use the Point ◄► buttons to move the red frame pointer to the AV System Menu icon. 2 Use the Point ▲▼ buttons to move the red arrow pointer to the desired system and then press the SELECT button. Video or S-Video AV System Menu (Video or S-Video) Auto The projector automatically detects an incoming video system, and adjusts itself to optimize its performance.
Video Input Image Mode Selection Direct Operation Remote Control Dynamic Select the desired image mode from among Dynamic, Standard, Cinema, Blackboard (Green), Image 1, Image 2, Image 3, and Image 4 by pressing the IMAGE button on the remote control. Dynamic For viewing pictures in a bright room. IMAGE button Standard Cinema IMAGE button Standard Normal picture mode preset on the projector. Blackboard (Green) Image 1 Cinema Picture mode adjusted with fine tone.
Video Input Image Adjustment 1 Press the MENU button to display the On-Screen Menu. Use the Point ◄► buttons to move the red frame pointer to the Image Adjust Menu icon. 2 Use the Point ▲▼ buttons to move the red frame pointer to the desired item and then press the SELECT button to display the adjustment dialog box. Use the Point ◄► buttons to adjust the setting value. Contrast Image Adjust Menu Image Adjust Menu icon Move the red frame pointer to the desired item and then press the SELECT button.
Video Input Sharpness Press the Point ◄ button to decrease the sharpness of the image; press the Point ► button to increase the sharpness of the image (from 0 to 15). Gamma Use the Point ◄► buttons to adjust the gamma value to obtain a better balance of contrast (from 0 to 15). Noise reduction Noise interference on the screen can be reduced. Select one of the following options to get smoother images. Off........... Disabled. L1........... Lower reduction L2...........
Video Input Screen Size Adjustment This projector has the picture screen resize function, which enables you to customize the image size. 1 Press the MENU button to display the On-Screen Menu. Use the Point ◄► buttons to move the red frame pointer to the Screen Menu icon. 2 Use the Point ▲▼ buttons to move the red frame pointer to the desired function and then press the SELECT button. Normal Provide the image at the 4:3 normal video aspect ratio.
Setting Setting This projector has a Setting menu that allows you to set up the other various functions described below. Press the MENU button to display the On-Screen Menu. Use the Point ◄► buttons to move the red frame pointer to the Setting Menu icon. Use the Point ▲▼ buttons to move the red frame pointer to the desired item and then press the SELECT button. The Setting dialog box appears. Setting Menu (Language) 1 2 Set the red frame pointer to the item and press the SELECT button.
Setting Keystone This function is used to store or reset the keystone correction when the AC power cord is unplugged. Use the Point ◄► buttons to switch between each option. Store......... Keep the keystone correction even when the AC power cord is unplugged. Reset........ Release the keystone correction when the AC power cord is unplugged. To correct keystone distortion, press the SELECT button. The “Keystone” appears on the screen. Use the Point ▲▼ buttons to correct keystone distortion (p.23).
Setting Logo (Logo and Logo PIN code lock settings) This function allows you to customize the screen logo with Logo select, Capture, and Logo PIN code lock functions. Note: Logo select • When “On” is selected in the Logo PIN code lock function, Logo select and Capture functions cannot be selected. Logo select This function decides on the starting-up display from among following options. User.......... Show the image you captured Default...... Show the factory-set logo Off.............
Setting Logo PIN code lock Logo PIN code lock This function prevents an unauthorized person from changing the screen logo. Off............. The screen logo can be changed freely from the Logo Menu (p.45). On............. The screen logo cannot be changed without a Logo PIN code. If you want to change the Logo PIN code lock setting, press the SELECT button and the Logo PIN code dialog box appears. Enter a Logo PIN code by following the steps below.
Setting Ceiling Ceiling When this function is set to “On,” the picture will be top/ bottom and left/right reversed. This function is used to project the image from a ceiling-mounted projector. Rear When this function is set to “On,” the picture will be left/right reversed. This function is used to project the image from rear of the screen. Rear Input search This function detects the input signal automatically. When a signal is found, the search will stop.
Setting Power management Power management For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the projector is not operated for a certain period. Time left before Lamp is off. If the input signal is interrupted and no button is pressed for more than 30 seconds, the timer display with “No signal” appears. It starts the countdown until the lamp is turned off. Use the Point ◄► buttons to set the countdown timer.
Setting Lamp control This function allows you to change brightness of the screen. Auto ����������� The brightness according to the input signal (between High and Eco mode). High ����������� Brighter than the Normal mode. Normal........ Normal brightness Eco ������������ Lower brightness reduces the lamp power consumption and extends the lamp life. Remote control This projector provides two different remote control codes; the factory-set, initial code (Code 1) and the secondary code (Code 2).
Setting Security (Key lock and PIN code lock) Key lock This function allows you to use the Key lock and PIN code lock function to set the security for the projector operation. Key lock On 1 This function locks the top control and remote control buttons to prevent operation by unauthorized persons. ...... Unlocked. ...... Lock the operation of the top control. To unlock, use the remote control. ...... Lock the operation of the remote control. To unlock, use the top control.
Setting Enter a PIN code Enter a PIN code Use the Point ▲▼ buttons to enter a number. Press the Point ► button to fix the number and move the red frame pointer to the next box. The number changes to “.” If you fixed an incorrect number, use the Point ◄ button to move the pointer to the number you want to correct, and then enter the correct number. Repeat this step to complete entering a four-digit number. After entering the four-digit number, move the pointer to “Set.
Setting Fan Fan This function provides the following options in the cooling fans’ operation when the projector is turned off (p.20). L1....... Normal operation L2....... Slower and lower-sound than the normal operation (L1), but it takes more time to cool the projector down. Fan control Choose the running speed of cooling fans from the following options according to the ground elevation under which you use the projector. Off.......Normal speed.
Setting Filter counter Filter counter This function is used to set a frequency for the filter cleaning. When the projector reached a specified time between cleanings, a Filter warning icon appears on the screen, notifying the cleaning is necessary. After cleaning the filter, be sure to select RESET and set the timer. The Filter warning icon will not turn off until the filter counter is reset. On 1 Use the Point ◄► buttons to set the timer.
Maintenance and Cleaning Warning Indicator The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance. The projector is shut down and the WARNING indicator is blinking red. Top Control WARNING blinking red When the temperature inside the projector reaches a certain level, the projector will be automatically shut down to protect the inside of the projector.
Maintenance and Cleaning Cleaning the Filters Filters prevents dust from accumulating on the optical elements inside the projector. Should the filters become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup and adversely affect the life of the projector. If a “Filter warning” icon appears on the screen, clean the filters immediately. Clean the filter by following the steps below.
Maintenance and Cleaning Slide Shutter Slide Shutter is provided to protect the surface of the lens against scratches and dirt. When you are not using the projector, close the Slide Shutter. To open or close, slide the Slide Shutter on the front of the cabinet. Do not close the shutter when the projection lamp is on. Slide Shutter Cleaning the Projection Lens Unplug the AC power cord before cleaning.
Maintenance and Cleaning Lamp Replacement When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and LAMP REPLACE indicator lights yellow. Replace the lamp with a new one promptly. The timing when the LAMP REPLACE indicator should light is depending on the lamp mode.
Maintenance and Cleaning Resetting the Lamp Counter Be sure to reset the Lamp counter after the lamp is replaced. When the Lamp counter is reset, the LAMP REPLACE indicator stops lighting and the Lamp replacement icon disappears. 1 Press the MENU button to display the On-Screen Menu. Use the Point ◄► buttons to move the red frame pointer to the Setting Menu icon. 2 Use the Point ▲▼ buttons to move the red frame pointer to Lamp counter and then press the SELECT button.
Appendix Troubleshooting Before calling your dealer or service center for assistance, check the items below once again. –Make sure you have properly connected the projector to peripheral equipment as described on pages 16-18. –Make sure all equipment is connected to AC outlet and the power is turned on. –When the projector does not project an image from the connected computer, restart the computer. Problem: – Solutions No power – Plug the power cord of the projector into the AC outlet.
Appendix No image – Check the connection between your computer or video equipment and the projector. (See pages 16-18) – See if the input signal is correctly output from your computer. Some laptop computers may need to change the setting for monitor output when connecting to a projector. See your computer’s instruction manual for the setting. – It takes about 30 seconds to display an image after turning on the projector.
Appendix The image is distorted or runs off. – Check "PC adjustment" menu or "Screen" menu and adjust them. (see pages 29,30, 34,35) PIN code dialog box appears – PIN code lock is being set. Enter a PIN code (the “1234” or numbers at start-up. you have set).( See pages 19, 50,51) The Remote Control does – Check the batteries. not work. – Make sure no obstruction is between the projector and remote control. – Make sure you are not too far from the projector when using the remote control.
Appendix WARNING : High voltages are used to operate this projector. Do not attempt to open the cabinet. If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Specify the model number and explain about the problem. We will advise you how to obtain service. The CE Mark is a Directive conformity mark of the European Community (EC).
Appendix Menu Tree Computer Input/Video Input Computer 1 Input Go to System (1) Computer 2 RGB Go to System (1) Component Go to System (2) RGB( Scart ) N/A Quit Video Auto Go to System (3) Video Go to System (3) S-Video Go to System (3) Quit N/A - - - not applicable Sound Volume Mute Quit Sound 0–63 On/Off Computer Input SVGA 1 Mode 1 Mode 2 ---- System (1) Image Select Dynamic Standard Real Blackboard (Green) Image 1 Image 2 Image 3 Image 4 Image Adjust Contrast Brightness Color
Appendix Setting Video Input Language Auto setup Auto PAL SECAM NTSC NTSC 4.43 PAL-M PAL-N System (3) Image Select Setting Auto 1080i 1035i 720p 575p 480p 575i 480i System (2) Keystone Blue back Display Logo Store/Reset On/Off On/Countdown off/Off Logo select Off Default User Capture Yes/No Logo PIN code lock Off/On Logo PIN code change Quit Quit Ceiling Rear Input search On/Off On/Off Off/On1/On2 Dynamic Standard Cinema Blackboard (Green) Image 1 Image 2 Image 3 Image 4 16 languages provided.
Appendix Indicators and Projector Condition Check the indicators for projector condition. Indicators POWER Projector Condition LAMP WARNING REPLACE red/green red yellow The projector is off. (The AC power cord is unplugged.) The projector is in stand-by mode. Press the POWER ON/STANDBY button to turn on the projector. The projector is operating normally. The projector is preparing for stand-by or the projection lamp is being cooled down.
Appendix Compatible Computer Specifications Basically this projector can accept the signal from all computers with the V-, H-Frequency mentioned below and less than 140 MHz of Dot Clock for analog signal. When selecting these modes, PC adjustment can be limited.
Appendix Technical Specifications Mechanical Information Projector Type Multi-media Projector Dimensions (W x H x D) 334 mm x 78 mm x 262 mm (Not including protrusion) Net Weight 3.6 kg Feet Adjustment 0˚ to 8.9˚ Panel Resolution LCD Panel System 0.8” TFT Active Matrix type, 3 panels Panel Resolution 1,024 x 768 dots Number of Pixels 2,359,296 (1,024 x 768 x 3 panels) Signal Compatibility Color System High Definition TV Signal Scanning Frequency PAL, SECAM, NTSC, NTSC4.
Appendix Accessories Owner’s Manual (CD-ROM) Quick Reference Guide AC Power Cord Remote Control and Batteries VGA Cable Serial Control Cable PIN Code Label Soft Carrying Case ● The specifications are subject to change without notice. ● LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.
Appendix Configurations of Terminals COMPUTER IN 1 /COMPUTER IN 2 /COMPONENT IN /MONITOR OUT (ANALOG) Terminal: Analog RGB (Mini D-sub 15 pin) 4 5 10 15 3 9 14 2 8 13 1 2 3 4 5 6 7 8 1 7 12 6 11 Red (R/Cr) Input/ R Output Green (G/Y) Input/ G Output Blue (B/Cb) Input/ B Output 9 10 11 12 13 14 15 ----Ground (Horiz.sync.) Ground (Red) Ground (Green) Ground (Blue) +5V Power / --Ground (Vert.sync.) Ground DDC Data / --Horiz. sync. Input (Composite H/V sync.) Vert. sync.
Appendix PIN Code Number Memo Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service station. PIN Code Lock No. Factory default set No: 1 2 3 4* Logo PIN Code Lock No. Factory default set No: 4 3 2 1* *Should the four-digit number be changed, the factory set number will be invalid. While the projector is locked with the PIN code.
EIKI International, Inc. 30251 Esperanza Rancho Santa Margarita CA 92688-2132 U.S.A. Tel : 800-242-3454 (949)-457-0200 Fax : 800-457-3454 (949)-457-7878 E-Mail : usa@eiki.com Deutschland & Österreich EIKI Deutschland GmbH Am Frauwald 12, 65510 Idstein Deutschland Tel : 06126-9371-0 Fax : 06126-9371-14 E-Mail : info@eiki.de China Canada EIKI CANADA - Eiki International, Inc. P.O. Box 156, 310 First St.
