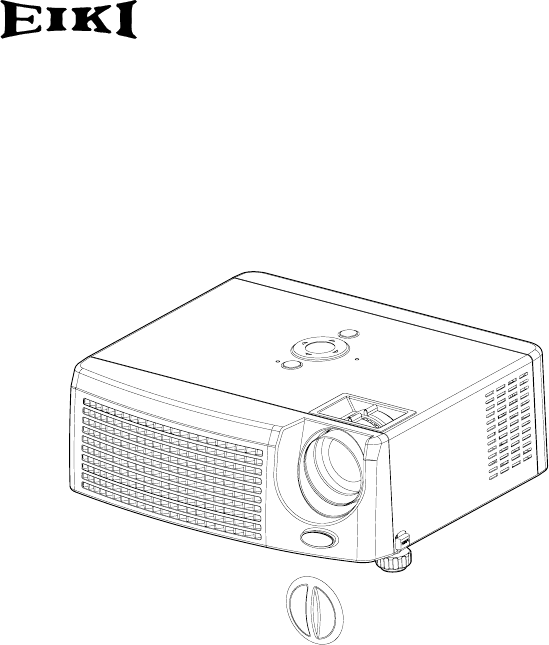

MULTIMEDIA PROJECTOR MODEL EIP-S200 OWNER’S MANUAL
Federal Communication Commission Notice Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Safety Instructions Read all of these instructions before you operate your projector and save for future reference. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.
1. Check that the operating voltage of your unit is identical with the voltage of your local power supply. 2. Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by the qualified personnel before operating it further. 3. Do not attempt to service this product yourself, as opening or removing covers may damage the components inside and will void your warranty. 4. Do not place this product on an unstable cart, stand, or table.
14. The projector is equipped with ventilation holes (intake) and ventilation holes (exhaust). Do not block or place anything near these slots, or internal heat build-up may occur, causing picture degradation or damage to the projector. 15. When you replace the projector lamp, never touch the new bulb with your bare hands. The invisible residue left by the oil on your hands may shorten the bulb life. Use lint-free gloves or finger cots are recommended. 16.
Notes on AC Power Cord AC Power Cord must meet requirement of country where you use a projector. Confirm an AC plug type with graphics below and proper AC Power Cord must be used. If supplied AC Power Cord does not match your AC outlet, contact your sales dealer. This projector is equipped with a grounding type AC line plug. Make sure that your outlet fits the plug. Do not defeat the safety purpose of this grounding type plug.
CONTENTS Introduction ........................................................................................................... 7 Projector Features ............................................................................................. 7 Package Contents .............................................................................................. 8 Projector Overview ........................................................................................... 9 Using the Product ....................
Introduction Projector Features The projector integrates high-performance optical engine projection and a user-friendly design to deliver high reliability and ease of use. The projector offers the following features: Single chip 0.55" Texas Instruments DLP® technology SVGA (800 x 600 pixels) true resolution 1.07x manual zoom lens Auto image re-sizing (Auto-Sync.
Package Contents When you unpack the projector, make sure you have all these components: Projector with Lens Cap AC Power Cord Composite Video Cable S-Video Cable Remote Control (IR) with Lithium battery Owner’s Manual VGA Cable (D-Sub to D-Sub) Quick Start Guide Audio Cable Projector Carrying Case Save the original shipping carton and packing material; they will come in handy if you ever to ship your unit. For maximum protection, repack your unit as it was originally packed at the factory.
Projector Overview Front View 9 1 1 2 3 4 5 2 3 Ventilation holes Projection lens Front IR remote control sensor Lens cap Elevator foot 8 7 4 5 6 7 8 9 6 1 Elevator button Zoom ring Focus ring Control panel EN-9
Rear View 1 2 3 4 5 6 7 8 Rear IR remote control sensor Ventilation holes Terminals Elevator button Elevator foot Speaker 1 AC power socket Kensington lock 2 3 8 7 2 6 5 4 Bottom View 1 Lamp cover 2 Ceiling mount 2 2 2 1 This projector can be used with a ceiling mount for support. The ceiling mount is not included in the package.
Using the Product Control Panel LED 1 Lamp LED indicator Refer to “LED Indicator Messages”. (p.30) 2 Power LED indicator Refer to “LED Indicator Messages”. (p.30) 1 2 3 4 8 5 7 6 Button Function 3 Power Refer to “Powering On/Off the Projector”. T 4 Keystone S /T Adjusts image distortion caused by tilting the projector. 5 Auto X Automatically adjusts frequency, total dots. This function is available for computer mode only. 6 Menu Displays or exits the on-screen display menus.
Terminals 1 2 3 4 5 6 1 SERIAL When operating the projector via a computer, connect this to the controlling computer’s RS-232C port. 2 USB(COMPUTER) This connector is for firmware update. 3 COMPUTER IN Connects image input signal (analog) to this jack. 4 S-VIDEO Connects S-Video output from video equipment to this jack. 5 VIDEO Connects composite video output from video equipment to this jack. 6 AUDIO IN Connects an audio output from video equipment to this jack.
Remote Control 1 Power Refer to “Powering On/Off the Projector”. (p. 17) 2 Four directional buttons Use four directional buttons to select items or make adjustments to your selection. (p. 22) 3 Menu Displays or exits the on-screen display menus. (p. 22) 4 Enter To select the desired setting. (p. 25) 5 Keystone c/d Adjusts image distortion caused by tilting the projector. (p. 11, 23) 6 Volume c/d Press the Volume c button to increase the volume press the Volume d button to reduce the volume. (p.
For the first time use: Remove the transparent insulation tape by pulling it before use. Catch Battery holder For battery change: 1. Push the catch to the right and remove the battery holder. 2. Remove the old Lithium coin cell and install new one (CR2025). Ensure that the side with the mark “+” is up. 3. Push the battery holder back into the remote control until you feel a click. Keep the battery out of the reach of children. There is a danger of death by accidentally swallowing the battery.
Remote Control Operation Point the remote control at the infrared remote sensor and press a button. Operating the projector from the front 10 15 5m 5m 7m Operating the projector from the rear 10 15 5m 5m 7m The remote control may not operate when there is sunlight or other strong light such as a fluorescent lamp shining on the remote sensor. Operate the remote control from a position where the remote sensor is visible. Do not drop the remote control or jolt it.
Installation Connecting the Projector 1 2 3 4 RS232 Cable USB Cable VGA Cable (D-Sub to D-Sub) Audio Cable 5 Composite Video Cable 6 S-Video Cable 7 VGA (D-Sub) to HDTV (RCA) Cable Laptop type Desktop type 1 7 2 6 3 5 4 When connecting cable, power cords of both a projector and external equipment should be disconnected from AC outlet. The figure above is a sample connection. This does not mean that all of these devices can or must be connected simultaneously.
Powering On/Off the Projector Powering on the projector: 1. Remove the projector lens cap. 2. Complete the AC power cord and peripheral signal cable(s) connections. 3. The Power LED blinks Green in standby mode. 4. Press button on the control panel or remote control to turn on the projector. The Power LED lights on Amber and Lamp LED lights on Green when the lamp is on. 5. Turn on your source (computer, notebook, DVD, etc.). The projector automatically detects your source.
Adjusting the Projected Image Adjusting the Projector Height Elevator button Elevator foot The projector is equipped with an elevator foot to adjust the image height. To raise the image: 1. Press the elevator button. 2. Raise the image to the desired height angle, then release the button to lock the elevator foot into position. To lower the image: 1. Press the elevator button. 2. Lower the image, then release the button to lock the elevator foot into position.
Adjusting the Projector Zoom and Focus Zoom ring Focus ring 1. Focus the image by rotating the focus ring. A still image is recommended for focusing. 2. Adjust the image by rotating the zoom ring. Rotate to the right to reduce the image. Rotate to the left to enlarge the image.
Adjusting Projection Image Size Refer to the graphic and table below to determine the screen size and projection distance. The values shown below are approximate and may vary from actual size. 277.8 138.9 A 83.35 259.62 55.56 129.81 33.34 77.89 51.93 31.1 B A:B=8.3:1.2 1.2m (Min.) 2.0m 3.0m 5.0m 10.0m (Max.) PROJECTION 1.2 2.0 3.0 5.0 10.0 Wide 33.34 55.56 83.35 138.9 277.8 Tele 31.1 51.93 77.89 129.81 259.
Menu Operation The projector has multilingual On Screen Display menus that allow you to make image adjustments and change a variety of settings.
How to operate 1. Press Menu button to open the OSD menu. 2. When OSD is displayed, use W / X buttons to select any feature in the main menu. After selecting the desired main menu feature, press T button to enter sub-menu for feature setting. 3. Adjust the settings with W / X buttons. 4. To return to the main menu, press Menu button. 5. To exit OSD, press Menu button. The OSD menu will close and the projector will automatically save the new settings.
Image (Computer / Video Mode) Contrast The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image. Q Q Press W to decrease the contrast. Press X to increase the contrast. Brightness Adjusts brightness of the image. Q Q Press W to darken the image. Press X to lighten the image. Keystone Adjusts image distortion caused by tilting the projector.
Red Manually adjusts red. Green Manually adjusts green. Blue Manually adjusts blue. Video (Video Mode) Saturation Adjusts a video image from black and white to fully saturated color. Q Press W to decrease the amount of color in the image. Q Press X to increase the amount of color in the image. Tint Adjusts the color balance of red and green. Q Press W to increase the amount of green in the image. Q Press X to increase the amount of red in the image. Sharpness Adjusts the sharpness of the image.
Language (Computer / Video Mode) Choose the multilingual OSD menu. Use S / T to select your preferred language. Press “W / X / Enter” to finalize the selection. Advanced (Computer / Video Mode) Auto Source Select Automatically scans the input source. Press “W / X / Enter” to confirm or cancel the selection. Rear The image is reversed horizontally. Press “W / X / Enter” to confirm or cancel the selection. Ceiling The image is inverted vertically. Press “W / X / Enter” to confirm or cancel the selection.
Maintenance The projector needs proper maintenance. You should keep the lens clean as dust, dirt or spots will project on the screen and diminish image quality. If any other parts need replacing, contact your dealer or qualified service personnel. When cleaning any part of the projector, always switch off and unplug the projector first. Warning: Never open any of the covers on the projector. Dangerous electrical voltages inside the projector can cause severe injury.
Replacing the Lamp Projector lamps have a finite life. Replace the lamp when: J The image becomes darker and hues become weaker after a lamp has been for a long period of time. J The projector lamp LED indicator turns into amber. Refer to section titled “LED Indicator Messages” (p.30) for further details. J J J J J J J J J The lamp becomes high temperature after turning off the projector with the power button. If you touch the lamp, you may scald your finger.
1. Turn off the projector and unplug the AC power cord. Allow the projector to cool for at least 45 minutes. 2. Place a protective sheet (cloth) beneath the projector. Turn the projector over so you can access the lamp cover. 3. Loosen the screws on the lamp cover and open it. 4. Loosen the screws on the bottom of the lamp assembly. 5. Grasp the lamp handle and pull the lamp assembly directly out of the projector. 6. Replace with the new lamp. 7. Tighten the screws on the bottom of lamp assembly. 8.
Specifications Display Type Resolution (Pixels) Uniformity Lens Contrast Ratio Aspect Ratio Screen Size Throw Distance Lamp Projection Type Video Compatibility Input Source Single 0.55" DLP panel 800 x 600 85% Manual Zoom (1.07x) F=2.4 6mm f=19 .91- 21.36mm 2000 : 1 4:3 (Default) , 16:9 31.1" - 277.8" 1.2m - 10m 200W Front, Rear, Ceiling NTSC4.
Appendix LED Indicator Messages LED Type Projector Lamp LED Power LED Status Color Status Color Status Standby Green Flashing Solid Lamp ignition Amber Meaning Off - The projector is powered and ready. Off - The projector system has some problems with its fan, so the projector failure Power on Amber Solid Green Solid cannot start up. The projector is operating normally. Lamp life Solid Amber Solid The lamp has reached its end of life Amber and must be changed soon.
Compatibility Modes Computer: Mode 480P VGA VGA VGA VGA VGA SVGA SVGA SVGA SVGA XGA XGA XGA XGA Mac16” SXGA SXGA 720P XGA XGA SXGA SXGA Mac 480-66A Resolution 640 x 480 640 x 480 640 x 480 640 x 480 720 x 400 720 x 400 800 x 600 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1024 x 768 832 x 624 1280 x 1024 1280 x 1024 1280 x 720 1024 x 768 1024 x 768 1152 x 870 1152 x 864 640 x 480 fH (kHz) 31.46 37.86 37.5 43.2 31.5 37.9 35.1 37.8 48.0 46.8 48.3 56.4 60.0 68.8 49.7 63.98 79.9 45.0 48.
Troubleshooting Refer to the symptoms and measures listed below before sending the projector for repairs. If the problem persists, contact your dealer or service center. Please refer to “LED Indicator Messages” (p.30) as well. Solution Cause The AC power cord is not Plug in the AC power card. plugged in. The AC power cord is not Connect the AC power cord to the projector correctly. connected to the projector. Tighten the screws on the lamp The lamp cover is loose. cover.
Symptom Cause Solution R e m o t e c o n t r o l The battery could be weak. Replace with a new battery. The remote control is not being Use the remote control within doesn’t work. used within the effective range. the effective range. There are some obstructions Check that there are not between the remote control and obstructions between the projector. remote control and projector.
U.S.A. Canada EIKI International, Inc. 30251 Esperanza Rancho Santa Margarita CA 92688-2132 U.S.A. Tel : 800-242-3454 (949)-457-0200 Fax : 800-457-3454 (949)-457-7878 E-Mail : usa@eiki.com EIKI CANADA -Eiki International, Inc. P.O. Box 156, 310 First St. - Unit 2, Midland, ON, L4R 4K8, Canada Tel : 800-563-3454 (705)-527-4084 Fax : 800-567-4069 (705)-527-4087 E-Mail : canada@eiki.
