- Eicon Technology DIVA Mobile PC Card User's Guide Model Number 800-241
Table Of Contents
- DIVAMobile PC Card
- Contents
- Getting Started
- Introduction
- Packaging
- Requirements
- Installation
- Installation of the DIVA Mobile PC Card
- Software Installation under Windows 95
- Software Installation under Windows 95 OEM Software Release 2 (OSR2)
- Using the ISDN Setup Wizard
- V.34 Modem Country Selector
- Checking the configured components
- Connecting to the ISDN / analog Network
- Changing SPIDs and ISDN Numbers
- Removing
- Applications
- Solving Problems
- Commands, Codes, and Protocols
- Technical and Regulatory Information
10 DIVA Mobile User’s Guide
Installation of the DIVA Mobile PC Card
1 Close all applications on your notebook.
2 Connect the ISDN S/T dongle to the DIVA Mobile’s ISDN socket (the
larger one); connect the modem cable into the DIVA Mobile’s analog
socket (the smaller one which has only 4 poles).

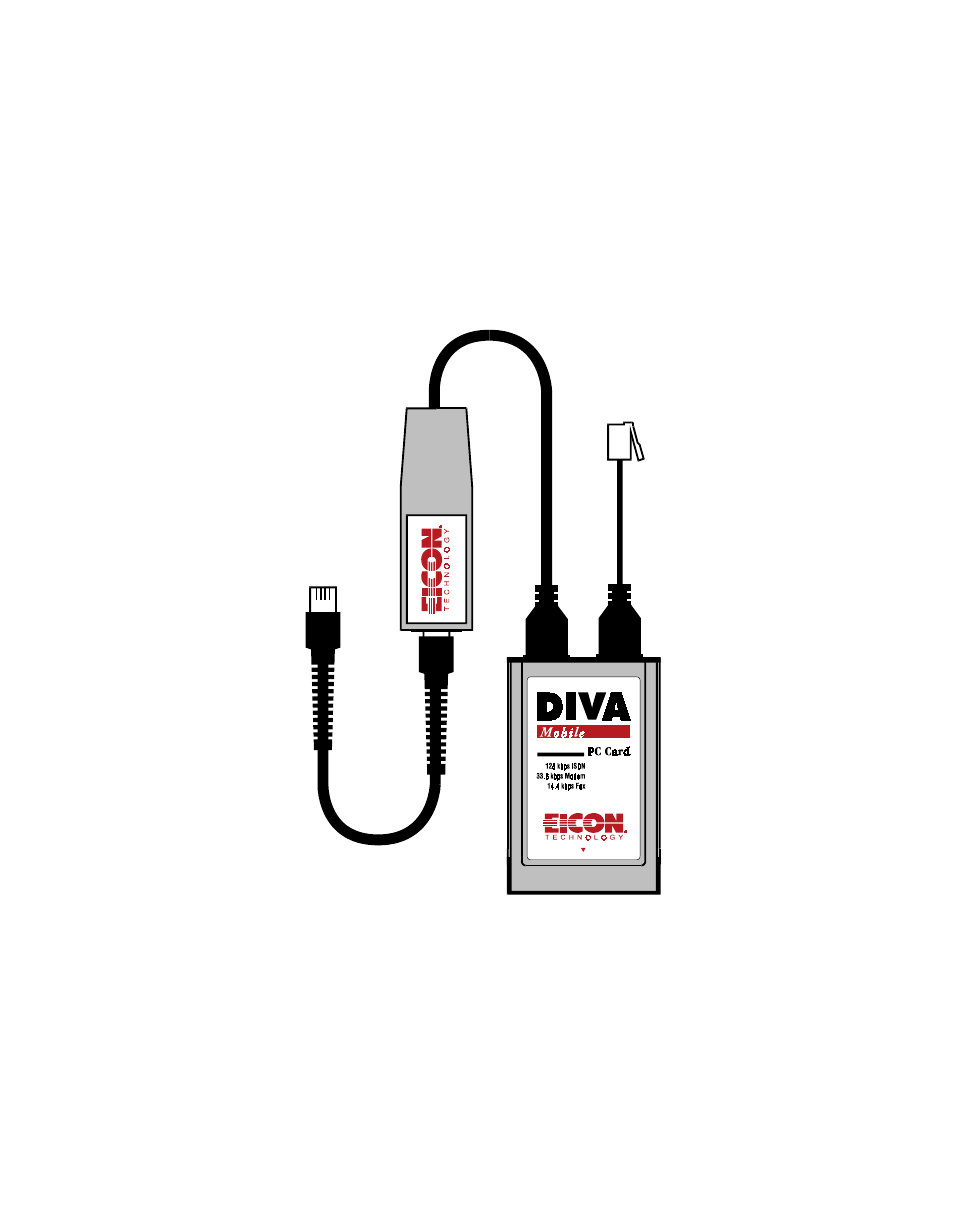

See the schema below for that:
Note: If you prefer, you can attach the cables after the DIVA Mobile has been
inserted into the Notebook. However, it is easier to connect the cables prior
to insertion.
3 Insert the DIVA Mobile into your system’s PC Card slot (type II or III).
ISDN S/T Dongle
ISDN Cable
DIVA Mobile PC Card
Analog
Modem
Cable
