EFCO CORPORATION 6/2012 Page 6
S-5500 Curtain Wall Router & Jig Use Instructions

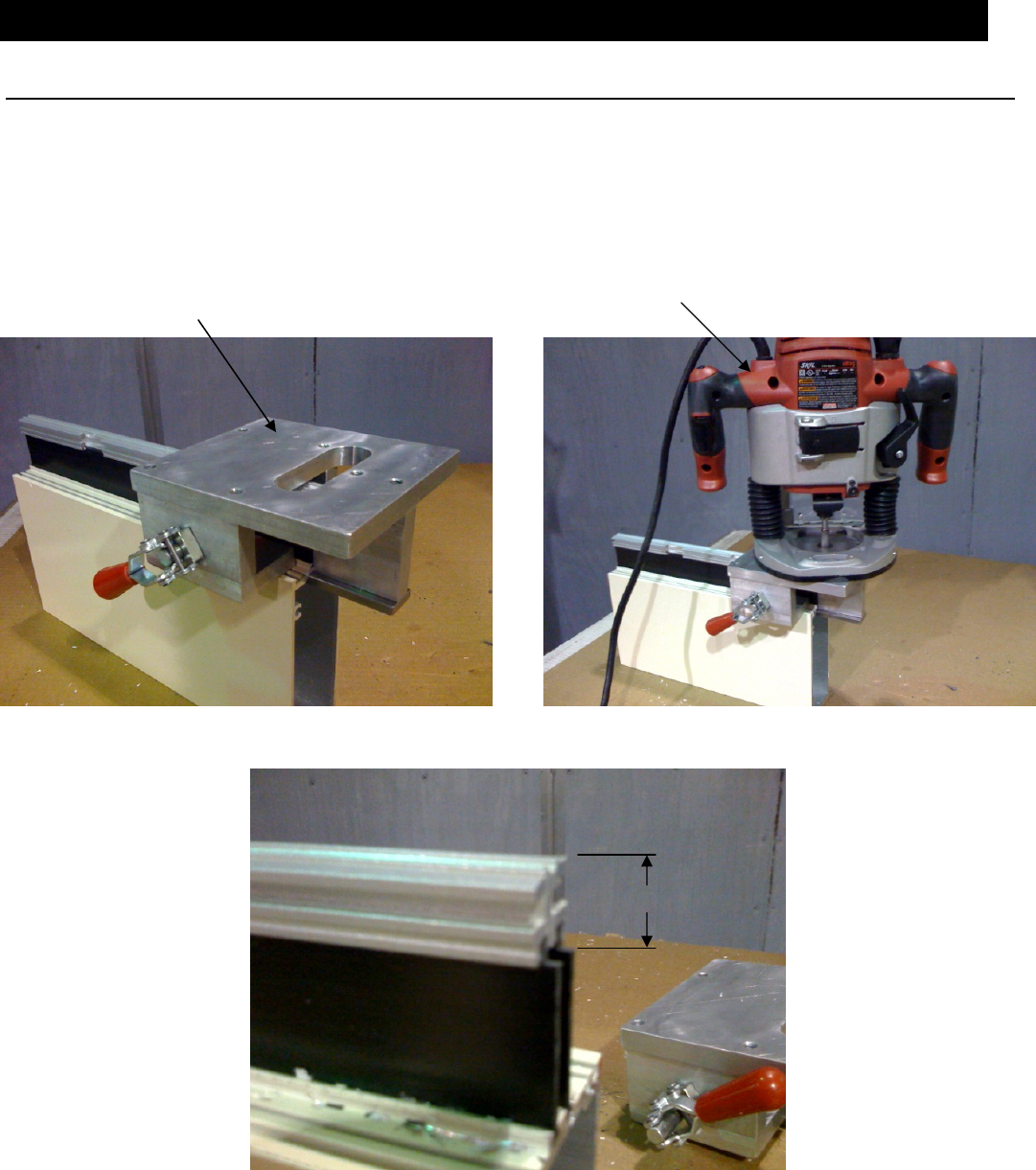

Router Fixture (DJ37) for Continuity Notch at Intermediate Horizontal and Sill
1. Slide router fixture (DJ37) on the end of the horizontal until it hits the stop. See Figure 13.
2. Clamp fixture to the horizontal.
3. Ensure that the router bit (DJ41) is set to the correct depth. Notch will be 5/8” deep. See
Figure 15.
DJ37
DJ30
5/8”
[Fig. 13]
[Fig. 14]
[Fig. 15]
