Table 1. 107DV2 Series AdaptaBeacon Strobes
Mounting Conduit Flash Strobe Tube
Catalog Number Method Voltage Current Size Rate Replacement
107DV2PST*-N5 Pendant 120V 60 Hz 0.1A 3/4" NPT Approx. 92-ST
107DV2BST*-N5 Bracket 65 fpm
107DV2CST*-N5 Ceiling
107DV2PST*-R5 Pendant 240V 60 Hz 0.05A 3/4" NPT Approx. 92-ST
107DV2BST*-R5 Bracket 65 fpm
107DV2BST*-R5 Ceiling
107DV2PST*-EK Pendant 12-48V DC 1.2-0.38A 3/4" NPT Approx. 92-ST
107DV2BST*-EK Bracket 65 fpm
107DV2CST*-EK Ceiling
107DV2PST*-S1 Pendant 250V DC 0.1A 3/4" NPT Approx. 92-ST
107DV2BST*-S1 Bracket 65 fpm
107DV2BST*-S1 Ceiling
*Letter in this position denotes color of the globe: A - amber, B - blue, C - clear, G - green, R - red or
M - magenta

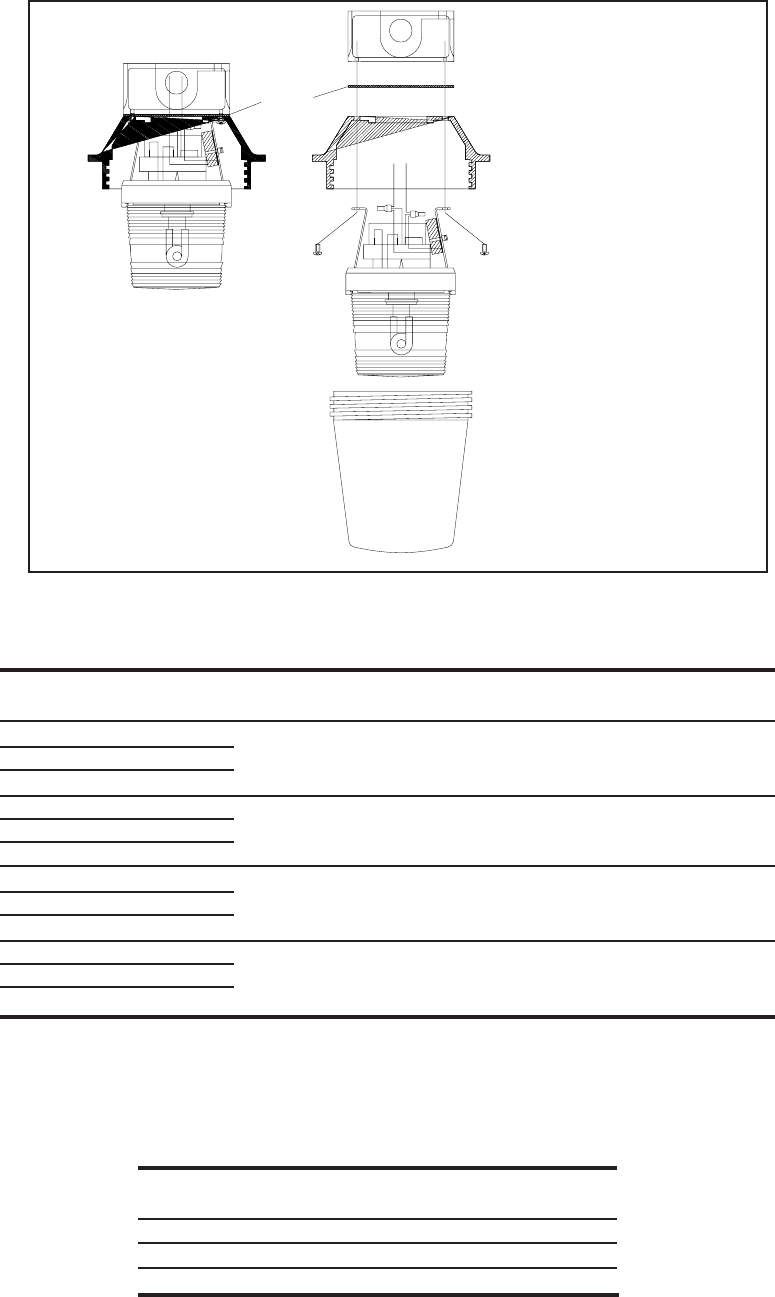

Figure 4. Disassembly of the 107DV2 Series Adaptabeacons
Table 2. Supply Wire Temperature Markings
Ambient Supply Wire
Temperature Temperature Marking
40°C 60°C
55°C 75°C
65°C 90°C
OUTER GLOBE
(2) SCREWS HOLDING CIRCUI
T
ASSEMBLY TO THE FIXTURE
CEILING MOUNT
OUTLET BOX
GASKET
