51

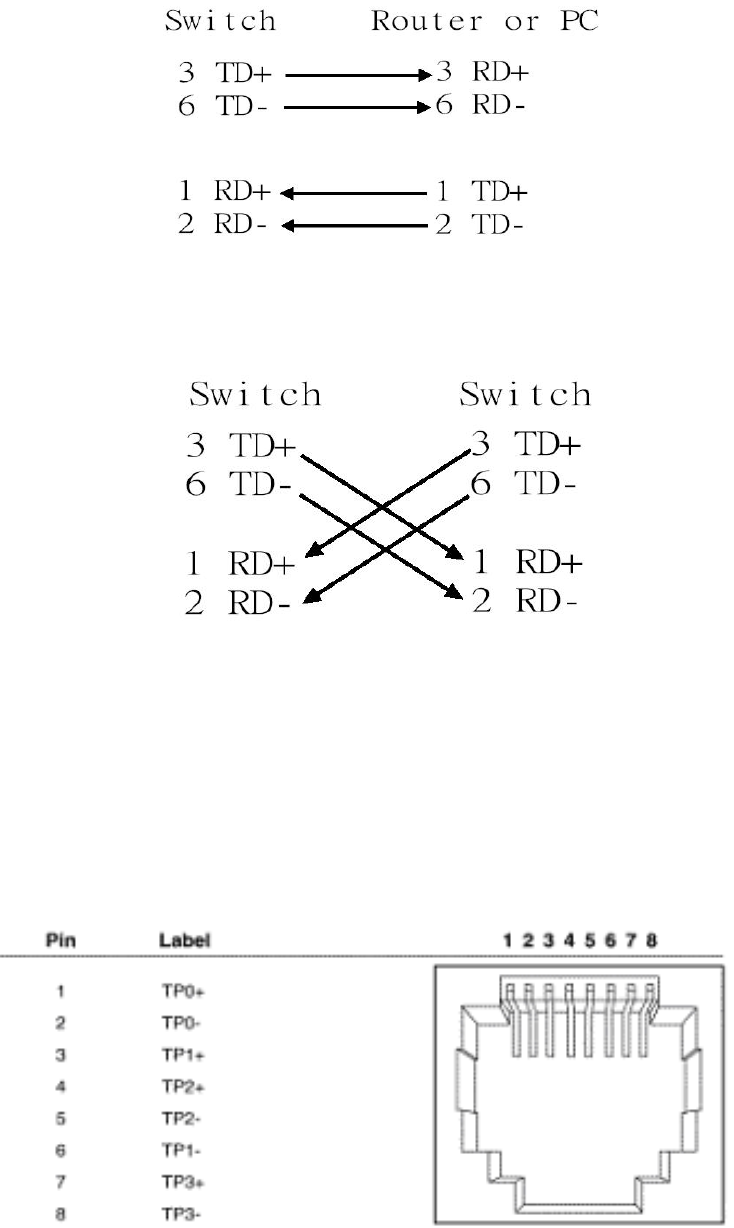

Straight-through cable schematic
Cross over cable schematic
10/100/1000Base-TX Pin outs
The following figure shows the 10/100/1000 Ethernet RJ-45 pin outs.
