User's Manual

2-7-5 Wi-Fi Protected Setup (WPS)

Wi-Fi Protected Setup (WPS) is the simplest way to build connection

between wireless network clients and this wireless router. You don‟t

have to select encryption mode and input a long encryption passphrase

every time when you need to setup a wireless client, you only have to

press a button on wireless client and this wireless router, and the WPS

will do the rest for you.

This wireless router supports two types of WPS: Push-Button

Configuration (PBC), and PIN code. If you want to use PBC, you have

to push a specific button on the wireless client to start WPS mode, and

switch this wireless router to WPS mode too. You can push Reset/WPS

button of this wireless router, or click „Start PBC‟ button in the web

configuration interface to do this; if you want to use PIN code, you have

to know the PIN code of wireless client and switch it to WPS mode,

then provide the PIN code of the wireless client you wish to connect to

this wireless router. The detailed instructions are listed follow:

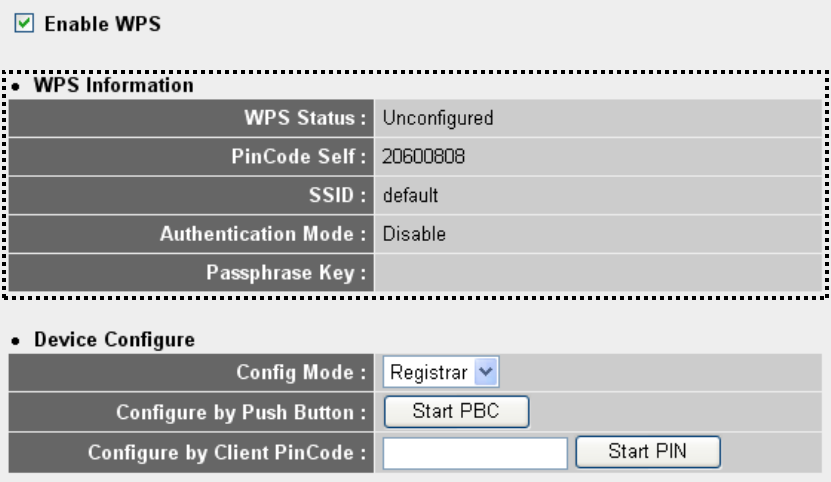

Please click „Wireless‟ menu on the left of web management interface,

then click „WPS‟, and the following message will be displayed on your

web browser:
