2-7-1-5 Setup procedure for ‘AP Bridge – WDS’
In this mode, you can expand the scope of network by combining up to
four other access points together, and every access point can still accept
wireless clients.

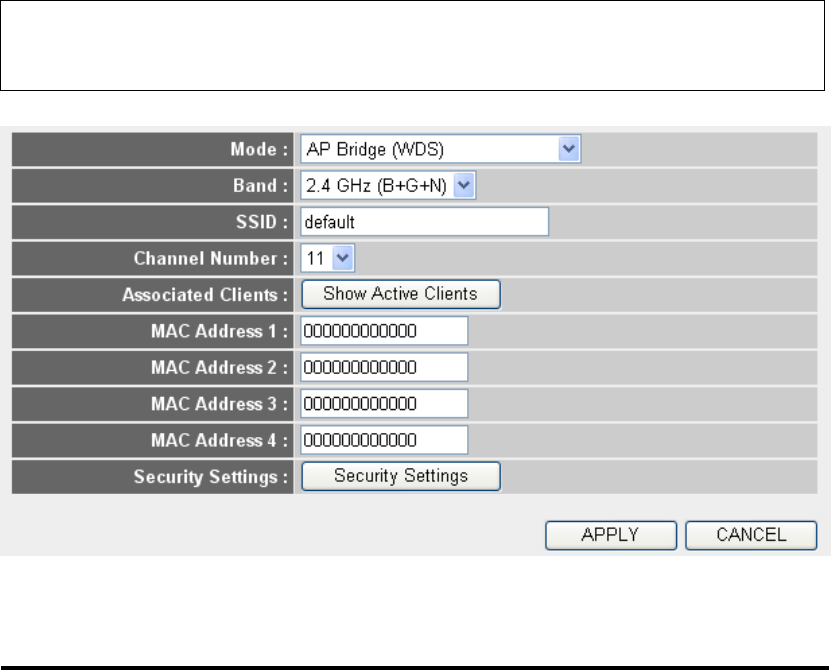

Here are descriptions of every setup items:
Band (2): Select the band you want to use, all the wireless
routers must use the same setting.
SSID (3): Input the SSID of your wireless router, the setting
should be the same with other wireless routers for
the convenience of roaming.
Channel Select the channel you want to use, all the wireless
Number (4): routers must use the same setting.
Associated Clients (5):Click „Show Active Clients‟ button, then an
“Active Wireless Client Table” will pop up. You
can see the status of all active wireless stations
that are connecting to the access point.
1
2
3
4
5
7
8
6
9
10
NOTE: For WDS mode, the output signal nature is the same as that of
normal AP mode.
