User's Manual

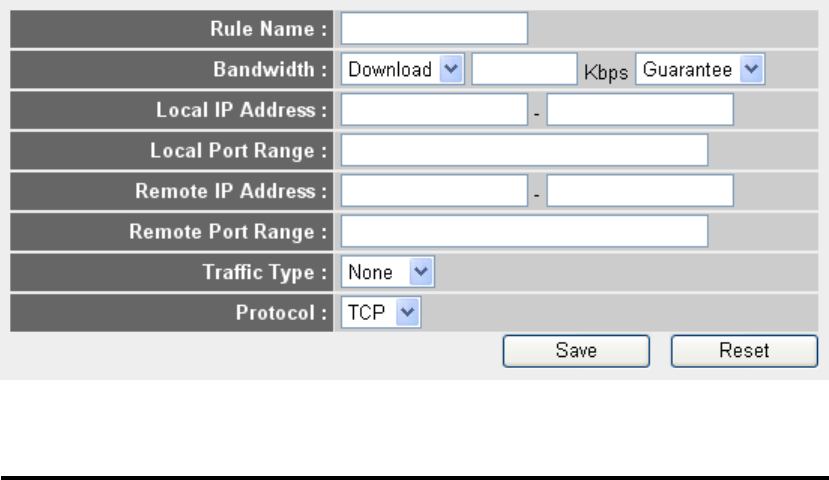

Here are descriptions of every setup items:

Rule Name (a): Please give a name to this QoS rule (up to 15

alphanumerical characters)

Bandwidth (b): Set the bandwidth limitation of this QoS rule. You

have to select the data direction of this rule

(Upload of Download), and the speed of

bandwidth limitation in Kbps, then select the type

of QoS: „guarantee‟ (guaranteed usable bandwidth

for this rule) or „max‟ (set the maximum bandwidth

for the application allowed by this rule).

Local IP Specify the local (source) IP address

Address (c): that will be affected by this rule. Please input the

starting IP address in the left field, and input the

end IP address in the right field to define a range

of IP addresses, or just input the IP address in the

left field to define a single IP address.

Local Port Please input the range of local (source)

Range (d): port number that will be affected by this rule. If

you want to apply this rule on port 80 to 90, please

input ‟80-90‟; if you want to apply this rule on a

single port, just input the port number, like „80‟.
