2-3-4 Setup procedure for ‘PPTP xDSL’:

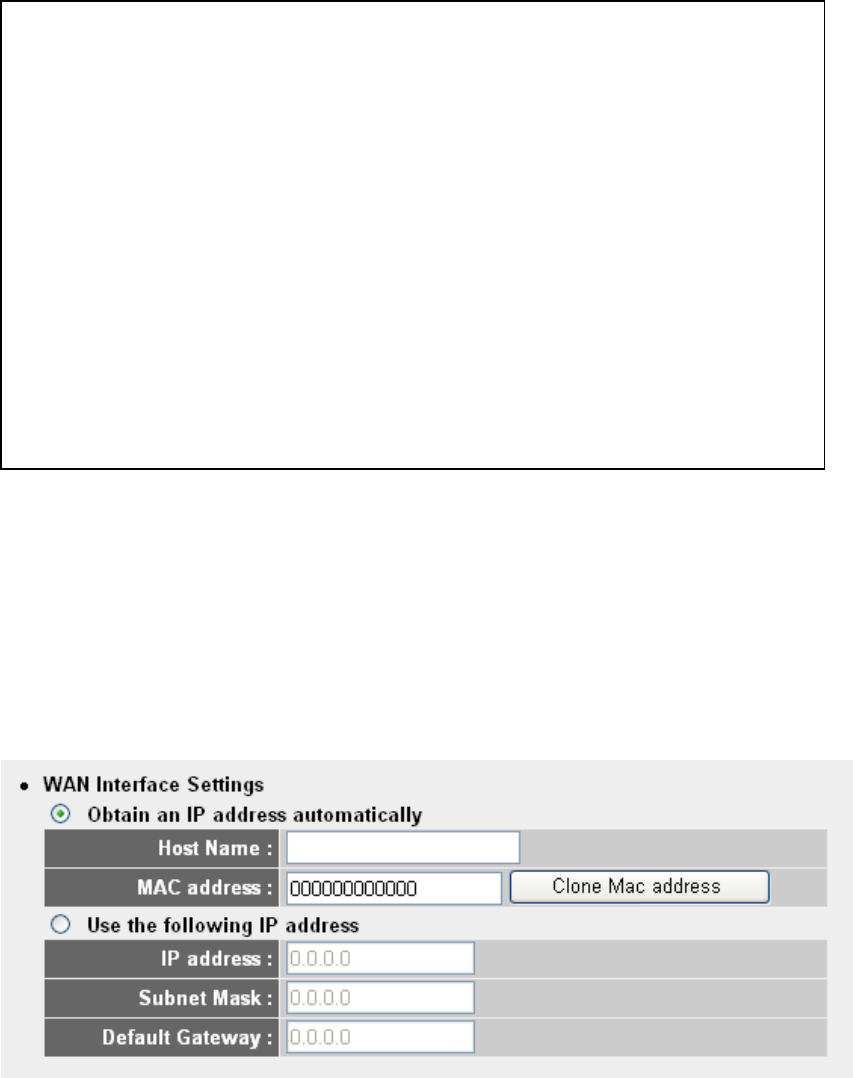

PPTP xDSL requires two kinds of setting: WAN interface setting (setup

IP address) and PPTP setting (PPTP user name and password). Here we

start from WAN interface setting:

Select the type of how you obtain IP address from your service provider

here. You can choose „Obtain an IP address automatically‟ (equal to

DHCP, please refer to „Cable Modem‟ section above), or „Use the

following IP address‟ (i.e. static IP address).

WAN interface settings must be correctly set, or the Internet connection

will fail even those settings of PPTP settings are correct. Please contact

MTU - Please use default value if you don’t know what it is, or ask

your service provider for a proper value.

Connection Type - There are 3 options: ‘Continuous’ - keep internet

connection alive, ‘Connect on Demand’ - only connects to Internet

when there’s a connect attempt, and ‘Manual’ - only connects to

Internet when ‘Connect’ button on this page is pressed, and

disconnects when ‘Disconnect’ button is pressed.

Idle Time Out: Specify the time to shutdown internet connect after no

internet activity is detected by minute. This option is only available

when connection type is ‘Connect on Demand’.
