Port Triggering
– 76 –
◆ Incoming Protocol - The protocol used for Incoming Ports Range,
either TCP or UDP, or ALL (all protocols supported by the Router).
◆ Status - The status of this entry either Enabled or Disabled.
To add a new rule, follow the steps below.
1. Click the Add New button.
2. Select a common application from the Common Applications drop-down
list, then the Trigger Port field and the Incoming Ports field will be
automatically filled. If the Common Applications do not have the
application you need, enter the Trigger Port and the Incoming Ports
manually.
3. Select the protocol used for Trigger Port from the Trigger Protocol drop-
down list, either TCP, UDP, or All.
4. Select the protocol used for Incoming Ports from the Incoming Protocol
drop-down list, either TCP or UDP, or All.
5. Select Enable in Status field.
6. Click the Save button to save the new rule.

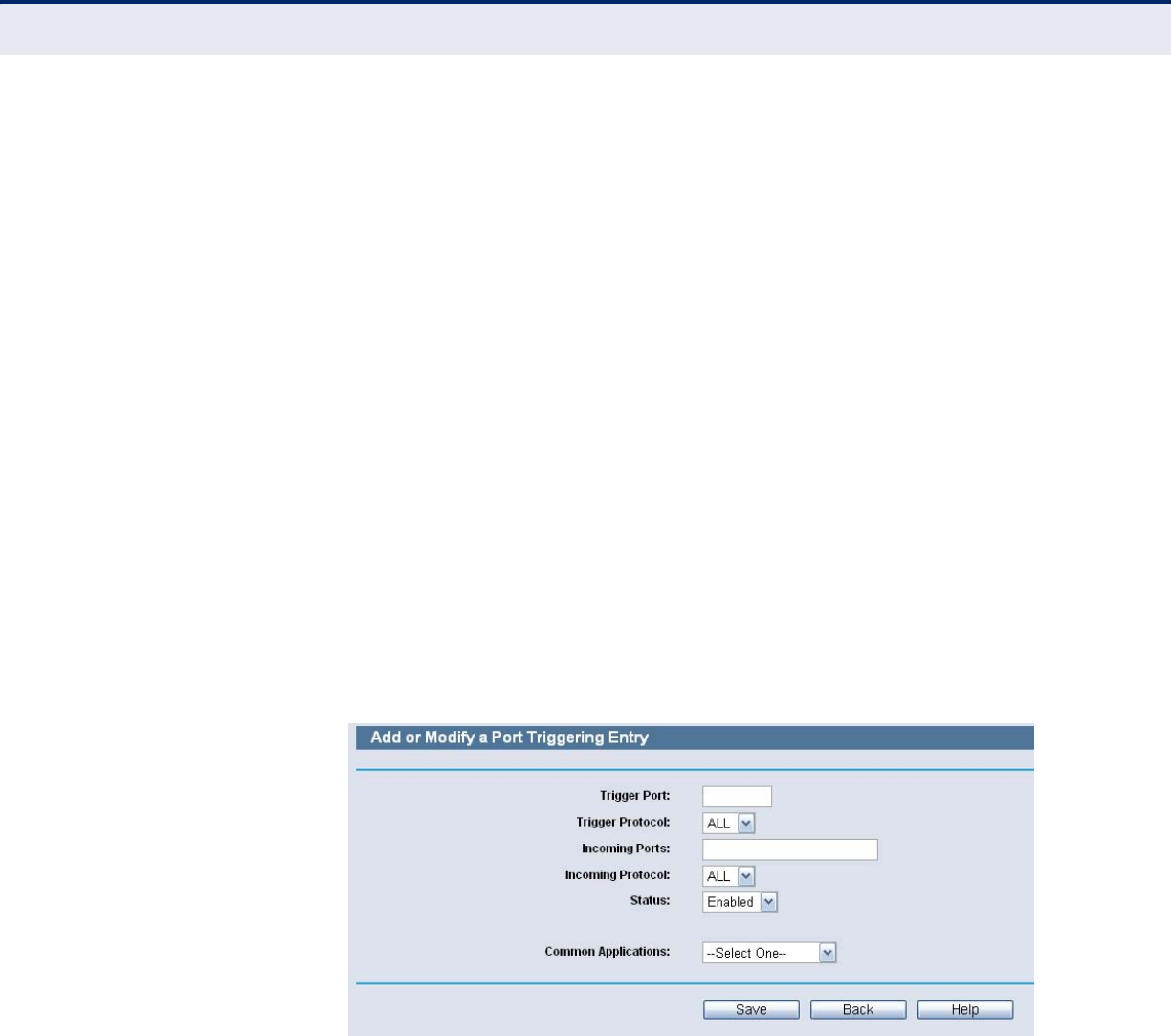

Figure 67: Add or Modify a Triggering Entry
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete
the entry, click the Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable All button to make all entries enabled
Click the Disabled All button to make all entries disabled.
