CHAPTER 7 | DHCP Settings Address Reservation ◆ Lease Time - The time of the DHCP client leased. After the dynamic IP address has expired, a new dynamic IP address will be automatically assigned to the user. You cannot change any of the values on this page. To update this page and to show the current attached devices, click the Refresh button. ADDRESS RESERVATION Choose menu “DHCP->Address Reservation”, you can view and add a reserved addresses for clients via the following figure.

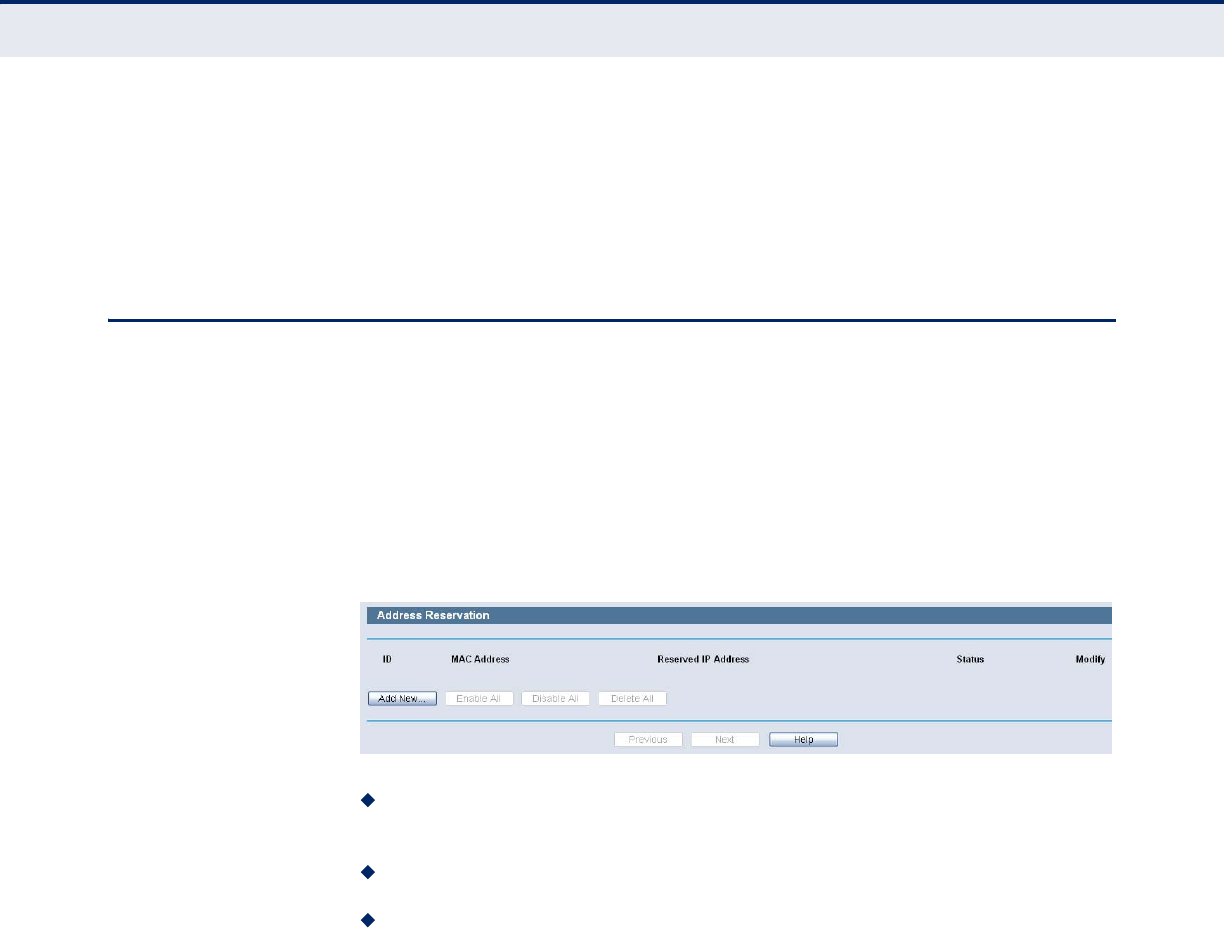

CHAPTER 7 | DHCP Settings Address Reservation Figure 59: Add or Modify an Address Reservation Entry To modify or delete an existing entry: 1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete. 2. Modify the information. 3. Click the Save button.
8 USB STORAGE SETTINGS There are two submenus under the Network Sharing menu: Sharing Service and User Accounts. Click any of them, and you will be able to configure the corresponding function. SHARING SERVICE Choose menu “Network Sharing->Sharing Service”, you can configure a USB disk drive attached to the Router on this page. Figure 60: Network Sharing Service Status - Indicates the Network Sharing service's current status. Volume - The volume name of the USB drive the users have access to.
CHAPTER 8 | USB Storage Settings Sharing Service ◆ Properties - Displays the Edit link to specify a volume that the Network Sharing users can access. Click the Start button to start the Network Sharing service. Click the Stop button to stop the Network Sharing service. Click the Eject Disk button to safely remove the USB storage device that is connected to USB port. This takes the drive offline. A message will appear on your web browser when it is safe to detach the USB disk.
CHAPTER 8 | USB Storage Settings User Accounts Figure 62: Sharing Settings - Edit NOTE: The Router cannot automatically locate new USB drive. You have to click the Rescan button manually to display a list of volumes and information about them. NOTE: The new settings will not take effect until you restart the service. NOTE: To unplug the USB drive, click Eject Disk button first. Simply pulling USB drive out of the USB port can cause damage to the device and loss of data.
CHAPTER 8 | USB Storage Settings User Accounts Figure 63: User Accounts ◆ User Name - Type the user name that you want to give access to the USB drive. The user name must be composed of alphanumeric symbols not exceeding 15 characters in length. ◆ Password - Enter the password in the Password field. The password must be composed of alphanumeric symbols not exceeding 15 characters in length. For security purposes, the password for each user account is not displayed.
9 SPECIAL APPLICATION SETTINGS There are four submenus under the Special Application menu: Virtual Servers, Port Triggering, DMZ and UPnP. Click any of them, and you will be able to configure the corresponding function. VIRTUAL SERVERS Choose menu “Special Application->Virtual Servers”, you can view and add virtual servers in the following screen. Virtual servers can be used for setting up public services on your LAN, such as DNS, Email and FTP.
CHAPTER 9 | Special Application Settings Virtual Servers To setup a virtual server entry: 1. Click the Add New button. 2. Select the service you want to use from the Common Service Port list. If the Common Service Port list does not have the service that you want to use, type the number of the service port or service port range in the Service Port box. 3. Type the IP Address of the computer in the IP Address box. 4. Select the protocol used for this application, either TCP or UDP, or All. 5.
CHAPTER 9 | Special Application Settings Port Triggering NOTE: If you set the service port of the virtual server as 80, you must set the Web management port on System Tools –> Remote Management page to be any other value except 80 such as 8080. Otherwise there will be a conflict to disable the virtual server. PORT TRIGGERING Choose menu “Special Application->Port Triggering”, you can view and add port triggering in the following screen.
CHAPTER 9 | Special Application Settings Port Triggering ◆ Incoming Protocol - The protocol used for Incoming Ports Range, either TCP or UDP, or ALL (all protocols supported by the Router). ◆ Status - The status of this entry either Enabled or Disabled. To add a new rule, follow the steps below. 1. Click the Add New button. 2. Select a common application from the Common Applications drop-down list, then the Trigger Port field and the Incoming Ports field will be automatically filled.
CHAPTER 9 | Special Application Settings DMZ Click the Delete All button to delete all entries NOTE: 1. When the trigger connection is released, the according opening ports will be closed. 2. Each rule allowed to be used only by one host on LAN synchronously. The trigger connection of other hosts on LAN will be refused. 3. Incoming Port Range cannot overlap each other. DMZ Choose menu “Special Application->DMZ”, you can view and configure DMZ host in the screen.
CHAPTER 9 | Special Application Settings UPnP UPNP Choose menu “Special Application->UPnP”, you can view the information about UPnP(Universal Plug and Play) in the screen. The UPnP feature allows the devices, such as Internet computers, to access the local host resources or devices as needed. UPnP devices can be automatically discovered by the UPnP service application on the LAN. Figure 69: UPnP Settings Current UPnP Status - UPnP can be enabled or disabled by clicking the Enable or Disable button.
10 SECURITY SETTINGS There are two submenus under the Security menu: Basic Security, and Advanced Security. Click any of them, and you will be able to configure the corresponding function. BASIC SECURITY Choose menu “Security->Basic Security”, you can configure the basic security in the following screen. Figure 70: Basic Security Settings ◆ Firewall - A firewall protects your network from the outside world. Here you can enable or disable the Router’s firewall.
CHAPTER 10 | Security Settings Basic Security ◆ ■ PPTP Passthrough - Point-to-Point Tunneling Protocol (PPTP) allows the Point-to-Point Protocol (PPP) to be tunneled through an IP network. To allow PPTP tunnels to pass through the Router, keep the default, Enabled. ■ L2TP Passthrough - Layer 2 Tunneling Protocol (L2TP) is the method used to enable Point-to-Point sessions via the Internet on the Layer 2 level. To allow L2TP tunnels to pass through the Router, keep the default, Enabled.
CHAPTER 10 | Security Settings Advanced Security ADVANCED SECURITY Choose menu “Security->Advanced Security”, you can protect the Router from being attacked by TCP-SYN Flood, UDP Flood and ICMP-Flood in the following screen. Figure 71: Advanced Security Settings ◆ Packets Statistics Interval (5~60) - The default value is 10. Select a value between 5 and 60 seconds from the drop-down list. The Packets Statistics Interval value indicates the time section of the packets statistics.
CHAPTER 10 | Security Settings Advanced Security ◆ Enable UDP-FLOOD Filtering - Enable or Disable the UDP-FLOOD Filtering. ◆ UDP-FLOOD Packets Threshold (5~3600) - The default value is 500. Enter a value between 5 ~ 3600. When the current UPD-FLOOD Packets number is beyond the set value, the Router will startup the blocking function immediately. ◆ Enable TCP-SYN-FLOOD Attack Filtering - Enable or Disable the TCP-SYN-FLOOD Attack Filtering.
11 ACCESS CONTROL SETTINGS There are five submenus under the Access Control menu: Rule, Host, Target, Schedule and Parental Control. Click any of them, and you will be able to configure the corresponding function. RULE Choose menu “Access Control->Rule”, you can view and set Access Control rules in the screen as shown in the following.
CHAPTER 11 | Access Control Settings Rule ◆ Action - Here displays the action the Router takes to deal with the packets. It could be Allow or Deny. Allow means that the Router permits the packets to go through the Router. Deny means that the Router rejects the packets to go through the Router. ◆ Status - This field displays the status of the rule. Enabled means the rule will take effect, Disabled means the rule will not take effect. ◆ Modify - Here you can edit or delete an existing rule.
CHAPTER 11 | Access Control Settings Rule Figure 73: Add or Modity Internet Access Control Entry For example: If you desire to allow the host with MAC address 00-11-2233-44-AA to access www.google.com only from 18:00 to 20:00 on Saturday and Sunday, and forbid other hosts in the LAN to access the Internet, you should follow the settings below: 1. Click “Access Control->Host” in the left to enter the Host Settings page.
CHAPTER 11 | Access Control Settings Host ■ Click Save to complete the settings. Then you will go back to the Access Control Rule Management page and see the following list. Figure 74: Display Access Control Entry HOST Choose menu “Access Control->Host”, you can view and set a Host list in the following screen. The host list is necessary for the Access Control Rule. Figure 75: Host Settings Host Description - Here displays the description of the host and this description is unique.
CHAPTER 11 | Access Control Settings Host 1) In Host Description field, create a unique description for the host (e.g. Host_1). 2) In MAC Address field, enter the MAC address. 3. Click the Save button to complete the settings. Click the Delete All button to delete all the entries in the table. Click the Next button to go to the next page, or click the Previous button return to the previous page.
CHAPTER 11 | Access Control Settings Target Figure 78: Host Settings TARGET Choose menu “Access Control->Target”, you can view and set a Target list in the screen as shown in the following figure. The target list is necessary for the Access Control Rule. Figure 79: Target Settings Target Description - Here displays the description about the target and this description is unique. Information - The target can be IP address, port, or domain name. Modify - To modify or delete an existing entry.
CHAPTER 11 | Access Control Settings Target Common Service Port drop-down list doesn’t have the service you want, specify the Target Port manually. 4) In Protocol field, select TCP, UDP, ICMP or ALL. ■ If you select Domain Name, the screen shown is Figure 80. 1) In Target Description field, create a unique description for the target (e.g. Target_1). 2) In Domain Name field, enter the domain name, either the full name or the keywords (for example google) in the blank.
CHAPTER 11 | Access Control Settings Schedule For example: If you desire to restrict the internet activities of host with MAC address 00-11-22-33-44-AA in the LAN to access www.google.com only, you should first follow the settings below: 1. Click the Add New button. 2. In Mode field, select Domain Name from the drop-down list. 3. In Target Description field, create a unique description for the target (e.g. Target_1). 4. In Domain Name field, enter www.google.com. 5. Click Save to complete the settings.
CHAPTER 11 | Access Control Settings Schedule ◆ Time - Here displays the time period in a day. ◆ Modify - Here you can edit or delete an existing schedule. To add a new schedule, follow the steps below. 1. Click the Add New button shown in Figure 82 and the next screen will pop-up. 2. In Schedule Description field, create a unique description for the schedule (e.g. Schedule_1). 3. In Day field, select the day or days you need. 4.
CHAPTER 11 | Access Control Settings Parental Control 4. In Time field, enter 1800 in Start Time field and 2000 in Stop Time field. 5. Click Save to complete the settings. Then you will go back to the Schedule Settings page and see the following list. Figure 85: Schedule Settings PARENTAL CONTROL Choose menu “Parental Control”, and you can configure the parental control in the screen as shown in the following figure.
CHAPTER 11 | Access Control Settings Parental Control ◆ MAC Address of Your PC - This field displays the MAC address of the PC that is managing this Router. If the MAC Address of your adapter is registered, you can click the Copy To Above button to fill this address to the MAC Address of Parental PC field above. ◆ Website Description - Description of the allowed website for the PC controlled. ◆ Schedule - The time period allowed for the PC controlled to access the Internet.
CHAPTER 11 | Access Control Settings Parental Control Figure 87: Add or Modify Parental Control Entry For example: If you desire that the child PC with MAC address 00-11-2233-44-AA can access www.google.com on Saturday only while the parent PC with MAC address 00-11-22-33-44-BB is without any restriction, you should follow the settings below. 1. Click “Parental Control” menu on the left to enter the Parental Control Settings page.
CHAPTER 11 | Access Control Settings Parental Control 4. Click Save to complete the settings. Then you will go back to the Parental Control Settings page and see the following list, as shown in the following figure.
12 ADVANCED ROUTING STATIC ROUTING LIST Choose menu “Advanced Routing”, you can configure the static route in the next screen. A static route is a pre-determined path that network information must travel to reach a specific host or network. Figure 89: Static Routing To add static routing entries: 1. Click the Add New button. Figure 90: Add or Modify a Static Route Entry 2.
CHAPTER 12 | Advanced Routing Static Routing List 3. Select Enabled or Disabled for this entry on the Status pull-down list. 4. Click the Save button to make the entry take effect. Other configurations for the entries: Click the Delete button to delete the entry. Click the Enable All button to enable all the entries. Click the Disable All button to disable all the entries. Click the Delete All button to delete all the entries.
13 QOS SETTINGS There are two submenus under the QoS menu: QoS Settings and Rules List. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below. QOS SETTINGS Choose menu “QoS->QoS Settings”, you can configure the Egress Bandwidth and Ingress Bandwidth in the next screen. Their values you configure should be less than 100000Kbps.
CHAPTER 13 | QoS Settings Rules List RULES LIST Choose menu “QoS->Rules List”, you can view and configure the QoS rules in the screen below. Figure 92: QoS Rules List Description - This is the information about the rules such as address range. Egress bandwidth - This field displays the max and mix upload bandwidth through the WAN port, the default is 0. Ingress bandwidth - This field displays the max and mix download bandwidth through the WAN port, the default is 0.
CHAPTER 13 | QoS Settings Rules List – 100 –
14 SYSTEM TOOLS Choose menu “System Tools”, and you can see the submenus under the main menu: Time Settings, Diagnostic, Setting Management, Password, System Log, Statistics, Local Management and Remote Management. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below. TIME SETTING Choose menu “System Tools->Time Setting”, you can configure the time on the following screen.
CHAPTER 14 | System Tools Diagnostic 3. Click Save to save the configuration. To configure the system automatically: 1. Select your local time zone. 2. Enter the IP address for NTP Server Prior. 3. Click the Get GMT button to get system time from Internet if you have connected to the Internet. NOTE: This setting will be used for some time-based functions such as firewall. You must specify your time zone once you login to the router successfully, otherwise, these functions will not take effect.
CHAPTER 14 | System Tools Diagnostic ◆ Diagnostic Tool - Check the radio button to select one diagnostic too. ■ Ping - This diagnostic tool troubleshoots connectivity, reachability, and name resolution to a given host or gateway. ■ Traceroute - This diagnostic tool tests the performance of a connection. NOTE: You can use ping/traceroute to test both numeric IP address or domain name.
CHAPTER 14 | System Tools Settings Management SETTINGS MANAGEMENT FIRMWARE UPGRADE Choose menu “System Tools->Firmware Upgrade”, you can update the latest version of firmware for the Router on the following screen. Figure 97: Firmware Upgrade ◆ Firmware Version - This displays the current firmware version. ◆ Hardware Version - This displays the current hardware version. The hardware version of the upgrade file must accord with the Router’s current hardware version.
CHAPTER 14 | System Tools Settings Management FACTORY DEFAULTS Choose menu “System Tools-> Factory Defaults”, and you can restore the configurations of the Router to factory defaults on the following screen. Figure 98: Restore Factory Default Click the Restore button to reset all configuration settings to their default values. ◆ The default User Name: admin ◆ The default Password: smcadmin ◆ The default IP Address: 192.168.2.1 ◆ The default Subnet Mask: 255.255.255.
CHAPTER 14 | System Tools Settings Management ■ Click the Restore button. NOTE: The current configuration will be covered by the uploading configuration file. The upgrade process lasts for 20 seconds and the Router will restart automatically. Keep the Router on during the upgrading process to prevent any damage. REBOOT Choose menu “System Tools->Reboot”, you can click the Reboot button to reboot the Router via the next screen.
CHAPTER 14 | System Tools Password PASSWORD Choose menu “System Tools->Password”, you can change the factory default user name and password of the Router in the next screen as shown in the following figure. Figure 101: Password It is strongly recommended that you should change the factory default user name and password of the Router, because all users who try to access the Router's Web-based utility or Quick Setup will be prompted for the Router's default user name and password.
CHAPTER 14 | System Tools System Log SYSTEM LOG Choose menu “System Tools->System Log”, you can view the logs of the Router. Figure 102: System Log Auto Mail Feature - Indicates whether auto mail feature is enabled or not. Mail Settings - Set the receiving and sending mailbox address, server address, validation information as well as the timetable for Auto Mail Feature, as shown in Figure 101. Log Type - By selecting the log type, only logs of this type will be shown.
CHAPTER 14 | System Tools System Log ◆ Clear Log - All the logs will be deleted from the Router permanently, not just from the page. Figure 103: Mail Account Settings ◆ From - Your mail box address. The Router would connect it to send logs. ◆ To - Recipient’s address. The destination mailbox where the logs would be received. ◆ SMTP Server - Your smtp server. It corresponds with the mailbox filled in the From field.
CHAPTER 14 | System Tools Statistics Click Back to return to the previous page. Click the Next button to go to the next page, or click the Previous button return to the previous page. STATISTICS Choose menu “System Tools->Statistics”, you can view the statistics of the Router, including total traffic and current traffic of the last Packets Statistic Interval. Figure 104: Statistics Current Statistics Status - Enable or Disable. The default value is disabled. To enable, click the Enable button.
CHAPTER 14 | System Tools Local Management Table 3: Statistics Table IP/MAC Address Total Current The IP/MAC Address displayed with statistics Packets The total amount of packets received and transmitted by the Router. Bytes The total amount of bytes received and transmitted by the Router Packets The total amount of packets received and transmitted in the last Packets Statistic interval seconds.
CHAPTER 14 | System Tools Remote Management By default, the radio button “All the PCs on the LAN are allowed to access the Router's Web-Based Utility” is checked. If you want to allow PCs with specific MAC Addresses to access the Setup page of the Router's WebBased Utility locally from inside the network, check the radio button “Only the PCs listed can browse the built-in web pages to perform Administrator tasks”, and then enter each MAC Address in a separate field.
CHAPTER 14 | System Tools Remote Management ◆ Remote Management IP Address - This is the current address you will use when accessing your Router from the Internet. This function is disabled when the IP address is set to the default value of 0.0.0.0. To enable this function change 0.0.0.0 to a valid IP address. If set to 255.255.255.255, then all the hosts can access the Router from internet.
A FAQ How do I configure the Router to access Internet by ADSL users? 1. First, configure the ADSL Modem configured in RFC1483 bridge model. 2. Connect the Ethernet cable from your ADSL Modem to the WAN port on the Router. The telephone cord plugs into the Line port of the ADSL Modem. 3. Login to the Router, click the “Network” menu on the left of your browser, and click "WAN" submenu. On the WAN page, select “PPPoE” for WAN Connection Type.
APPENDIX A | FAQ How do I configure the Router to access Internet by Ethernet users? 1. Login to the Router, click the “Network” menu on the left of your browser, and click "WAN" submenu. On the WAN page, select “Dynamic IP” for "WAN Connection Type", finish by clicking “Save”. 2. Some ISPs require that you register the MAC Address of your adapter, which is connected to your cable/DSL Modem during installation.
APPENDIX A | FAQ Figure 110: Virtual Servers Figure 111: Virtual Servers NOTE: Your opposite side should call your WAN IP, which is displayed on the “Status” page. 4. How to enable DMZ Host: Log in to the Router, click the “Special Application” menu on the left of your browser, and click "DMZ" submenu. On the "DMZ" page, click Enable radio button and type your IP address into the “DMZ Host IP Address” field, using 192.168.2.169 as an example, remember to click the Save button. Figure 112: DMZ 5.
APPENDIX A | FAQ Figure 113: Basic Security I want to build a WEB Server on the LAN, what should I do? 1. Because the WEB Server port 80 will interfere with the WEB management port 80 on the Router, you must change the WEB management port number to avoid interference. 2. To change the WEB management port number: Log in to the Router, click the “Security” menu on the left of your browser, and click "Remote Management" submenu.
APPENDIX A | FAQ 3. Log in to the Router, click the “Special Application” menu on the left of your browser, and click the "Virtual Servers" submenu. On the "Virtual Servers" page, Click the Add New button, then on the “Add or Modify a Virtual Server” page, enter “80” into the blank next to the “Service Port”, and your IP address next to the “IP Address”, assuming 192.168.2.188 for an example, remember to Enable and Save.
B CONFIGURING THE PCS In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows XP. First make sure your Ethernet Adapter is working, refer to the adapter’s manual if needed. 1. Install TCP/IP component a. On the Windows taskbar, click the Start button, point to Settings, and then click Control Panel. b. Click the Network and Internet Connections icon, and then click on the Network Connections tab in the appearing window. c.
APPENDIX B | Configuring the PCs Figure 118: Select TCP/IP 1.5 The following TCP/IP Properties window will display and the IP Address tab is open on this window by default.
APPENDIX B | Configuring the PCs Setting IP address manually 1. Select Use the following IP address radio button. And the following items available 2. If the Router's LAN IP address is 192.168.2.1, type IP address is 192.168.2.x (x is from 2 to 254), and Subnet mask is 255.255.255.0. 3. Type the Router’s LAN IP address (the default IP is 192.168.2.1) into the Default gateway field. 4. Select Use the following DNS server addresses radio button.
C HARDWARE SPECIFICATIONS STANDARDS IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T 802.11b 802.11g 802.11n PROTOCOL TCP/IP, PPPoE, DHCP, ICMP, NAT, SNTP NUMBER OF PORTS 1 10/100/1000 Mbps Auto-Negotiation WAN RJ-45 port 4 10/100/1000 Mbps Auto-Negotiation LAN RJ-45 ports supporting Auto MDI/MDIX 1 USB 2.
APPENDIX C | Hardware Specifications MODULATION DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM SECURITY WEP/WPA/WPA2/WPA2-PSK/WPA-PSK SENSITIVITY @PER 270M: -68dBm@10% PER; 130M: -68dBm@10% PER 108M: -68dBm@10% PER; 54M: -68dBm@10% PER 11M: -85dBm@8% PER; 6M: -88dBm@10% PER 1M: -90dBm@8% PER RF POWER 20dBm (max EIRP) ANTENNA GAIN 3dBi*3 TEMPERATURE Operating: 0 °C to 40 °C (32 to 104 °F) Storage: -40 °C to 70 °C (-40 to 158 °F) HUMIDITY Operating: 10% to 90% (non-condensing) Storge: 5%-90% (non-condensing) – 1
GLOSSARY IEEE 802.11B A wireless standard that supports wireless communications in the 2.4 GHz band using Direct Sequence Spread Spectrum (DSSS). The standard provides for data rates of 1, 2, 5.5, and 11 Mbps. IEEE 802.11G A wireless standard that supports wireless communications in the 2.4 GHz band using Orthogonal Frequency Division Multiplexing (OFDM). The standard provides for data rates of 6, 9, 12, 18, 24, 36, 48, 54 Mbps. IEEE 802.11g is also backward compatible with IEEE 802.11b. IEEE 802.
GLOSSARY ISP (INTERNET SERVICE A company that provides access to the Internet. PROVIDER) MTU (MAXIMUM The size in bytes of the largest packet that can be transmitted. TRANSMISSION UNIT) NAT (NETWORK NAT technology translates IP addresses of a local area network to a ADDRESS TRANSLATION) different IP address for the Internet. PPPOE (POINT TO POINT PPPoE is a protocol for connecting remote hosts to the Internet over an PROTOCOL OVER always-on connection by simulating a dial-up connection.
