Chapter 22 Recording

22.1 General Information 

A thermal dot matrix recorder is used for the monitor and can support many recording types and

output patient information, measurement data, review data waveform and so forth.

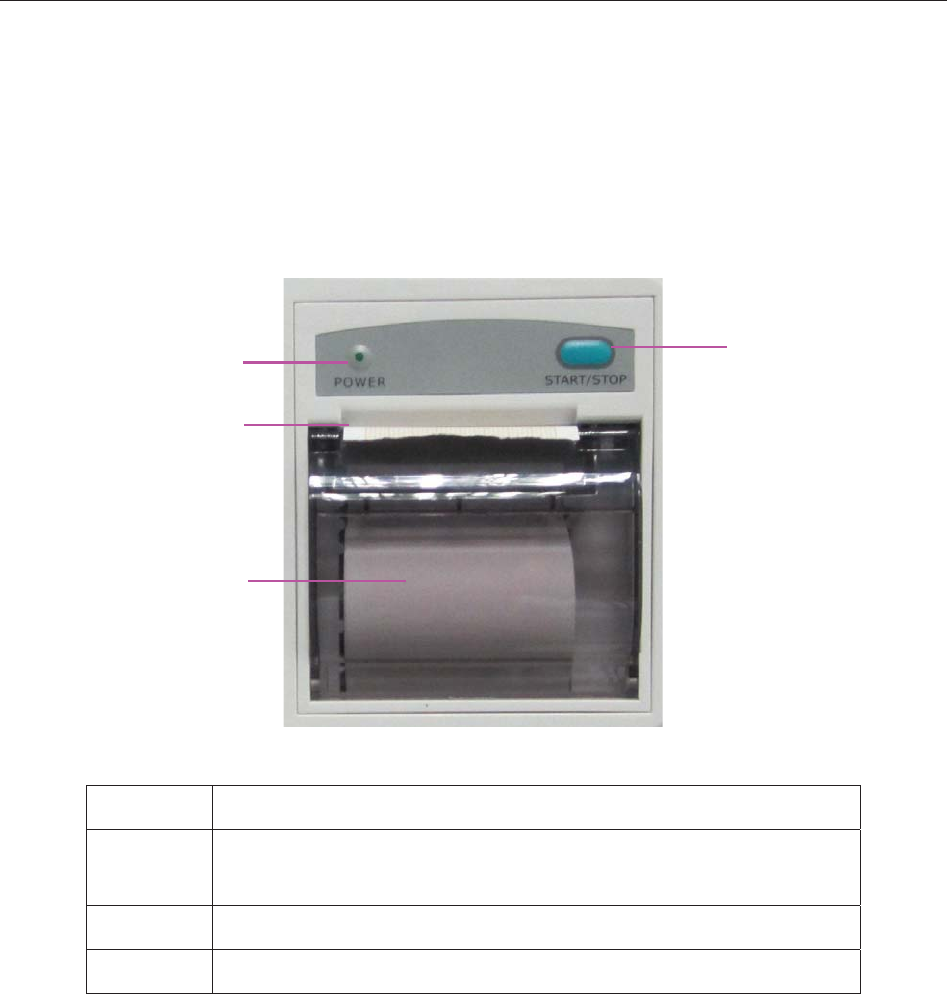

1 Recording indicator

2 Paper feeding key: press this key to start or stop feeding

recording paper without outputting anything on the paper

3 Paper outlet

4 Recorder door

22.2 Performance of the Recorder

 Waveform record is printed at the rate of 25 mm/s or 50 mm/s.

 48mm wide printout paper.

 It can record up to three waveforms.

 User-selectable real-time recording time and waveform.

 Auto recording interval is set by the user, and the waveform is in accordance with the real

time recording.

NOTE:

It is suggested that the user should not use the recorder when the low battery displays, or

the monitor may be turned off automatically.
