User's Manual

PADECG User Manual Preparations Before Operation
- 18 -
F
LL
Left leg/Upper leg as close to torso as possible
N
RL
Right leg/Upper leg as close to torso as possible

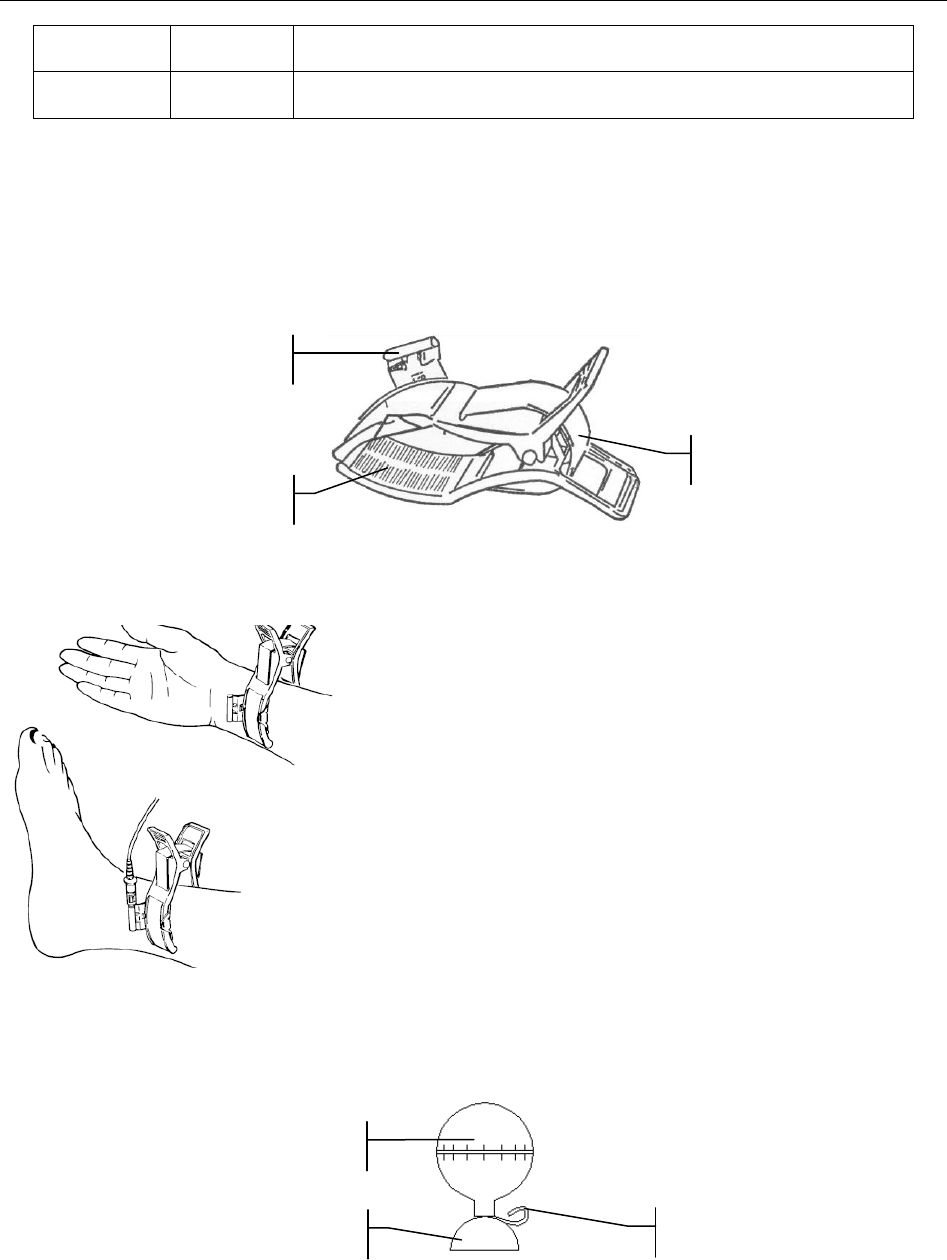

3.3.2 Attaching the Reusable Electrodes
3.3.2.1 Attaching the Limb Electrodes
Limb Electrode
Limb Electrode Connection:
1) Ensure that the electrodes are clean;
2) Clean the electrode area which is a short distance
above the ankle or the wrist with 75% alcohol;
3) Daub the electrode area on the limb with gel evenly;
4) Place a small amount of gel on the metal part of the
limb electrode clamp;
5) Connect the electrode to the limb, and make sure that
the metal part is placed on the electrode area above
the ankle or the wrist;
6) Attach all limb electrodes in the same way.
3.3.2.2 Attaching the Chest Electrodes
Chest Electrode
Reed
Connecting to a Lead Wire
Clamp
Suction Bulb
Connecting to a Lead Wire
Metal Cup
