Transmitter

Frequency 2.4GHz

Battery AA x 4

Servo

Power Supply 4.8V~6V

Output Torque 161 oz-in @ 6.0V (4.56 kg-cm)

Operating Speed 0.24sec/60° @ 6.0V

Size 55.6 x 18 x 30mm

Electronic Speed Control (ESC)

Input Voltage 2S Li-Po / 5–7 cell Ni-Mh

Constant/Peak 45A/290A

BEC Voltage 6V

Size 48mm x 35.2mm x 35.2mm

Weight 2.6 oz (74 g [including wires])

Quick Start....................................................................................................4

Vehicle Preparations ....................................................................................4

Charging the Vehicle Battery ....................................................................4

Charging Warnings ...................................................................................4

Installing the Battery.................................................................................5

Transmitter Controls .................................................................................. 5

Installing Transmitter Batteries ................................................................5

Binding ......................................................................................................6

Changing the Throttle Limit ......................................................................6

Getting Started..........................................................................................6

Operation......................................................................................................7

When You Are Finished................................................................................7

Maintenance ................................................................................................8

Setting the Gear Mesh..............................................................................8

Electronic Speed Control (ESC) .................................................................8

Electrical Layout ........................................................................................ 8

Shock Cleaning..........................................................................................9

Fasteners ................................................................................................... 9

Troubleshooting Guide ...............................................................................10

Limited Warranty .......................................................................................11

Warranty and Service Contact Information ...............................................12

FCC Information..........................................................................................12

IC Information.............................................................................................12

Ruckus Parts Diagram ......................................................................... 46–47

Torment Parts Diagram ....................................................................... 48–49

Replacement Parts .............................................................................. 50–51

Optional Parts.............................................................................................51

TABLE OF CONTENTS

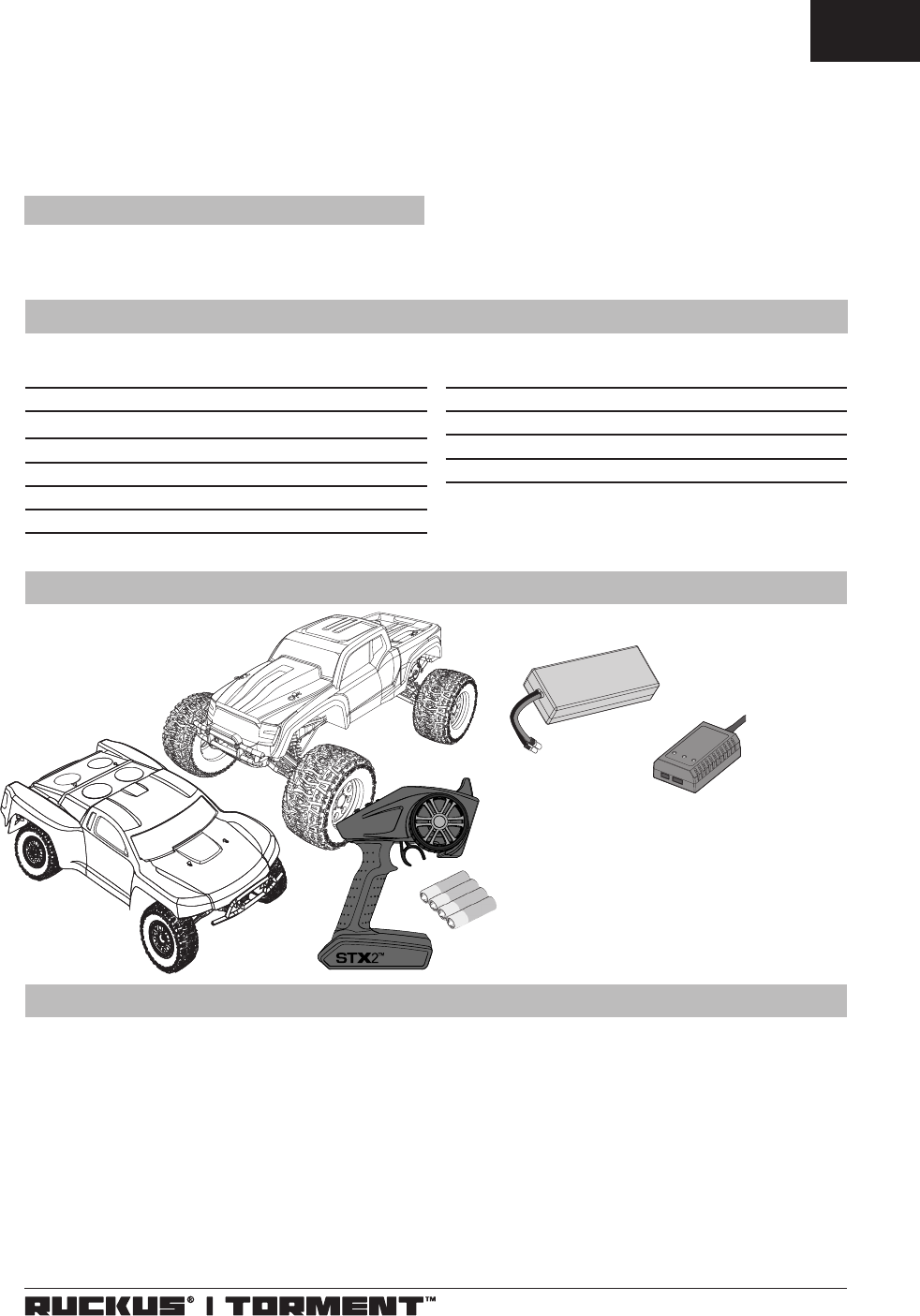

COMPONENTS

• ECX

Ruckus

Monster Truck or Torment

™

Short Course Truck

• Spektrum

™

STX2

2-CH Transmitter

• AA (4) Batteries

• 20W LiPo AC Balance Charger

• Dynamite

7.4V 3000mAh 2S 20C LiPo, Hardcase with EC3

™

connector

• Dynamite

1/10 Tazer

™

6-Pole Brushless Motor

• Dynamite

Tazer

™

45A Sensorless, Brushless WP ESC

• Spektrum

™

SRX200 2-CH Receiver

SPECIFICATIONS

Wet Conditions Maintenance

• Remove the battery pack(s) and dry the contacts. If you have an air

compressor or a can of compressed air, blow out any water that may be

inside the recessed connector housing.

• Remove the tires/wheels from the vehicle and gently rinse the mud and dirt

off with a garden hose. Avoid rinsing the bearings and transmission.

NOTICE: Never use a pressure washer to clean your vehicle.

• Use an air compressor or a can of compressed air to dry the vehicle and

help remove any water that may have gotten into small crevices or corners.

• Spray the bearings, drive train, fasteners and other metal parts with a

water-displacing light oil or lubricant. Do not spray the motor.

• Let the vehicle air dry before you store it. Water (and oil) may continue to

drip for a few hours.

• Increase the frequency of disassembly, inspection and lubrication of the

following:

• Front and rear axle hub assembly bearings.

• All transmission cases, gears and differentials.

• Motor—clean with an aerosol motor cleaner and re-oil the bushings

with lightweight motor oil.

2.4GHZ DIGITAL

RADIO SYSTEM
