2.0 Using Smart Repeater for charging ECPIN
2.1 With Battery
1. Put a AAA cell battery into the battery compartment of the Smart Repeater SR200.
2. Slide the power source selector to “BAT” location.

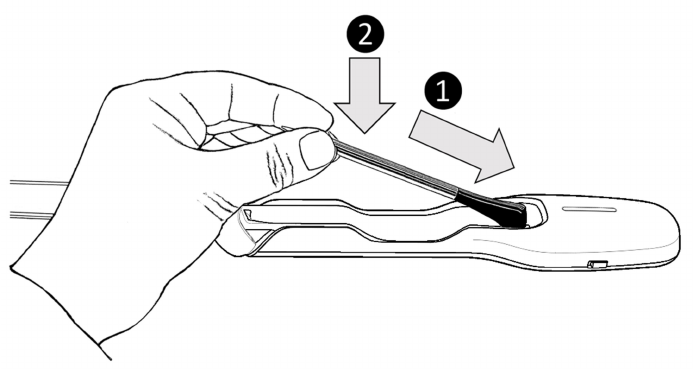

3. Insert ECPIN to the Smart Repeater SR200 and close the lid.
4. The LED will be flashing during charging process and turn off after completing the
charging process.
5. If Amber LED colour is shown, the battery level is low and it requires to replace a new
battery.
6. Slide the power source selector to “USB” location when you have completed the
charging process.
7. Please take out the battery if you are not intended to use battery as the power source
or you will not use the Smart Repeater for a long period of time.
2.2 With USB power source
1. Connect the external USB power source and the Smart Repeater SR200 with the USB
cable.
2. Slide the power source selector to “USB” location.
3. Insert ECPIN to the Smart Repeater SR200 and close the lid.
4. The LED will be flashing during charging process and turn off after completing the
charging process.
5. The LED will be flashing again with a slow flashing rate which the repeater starts
repeating the signal.
6. If you want to turn off the repeater, please disconnect the repeater with the USB power
source.
3.0 Using Smart Repeater to extend the range of operation of ECPIN
3.1 With Battery
1. Put a AAA battery into the battery compartment of the Smart Repeater SR200.
