LIVA X MINI PC USER MANUAL
Chapter 1
LABEL COMPONENTS
1. Memory 1~4 Single channel DDR3L soldered down memory
2. SYS_LED System power LED
3. POWER_BTN Power On/Off buon
4. MINI_PCIE Mini PCIE supports wireless card
5. UART_DBG UART debug header
6. eMMC Direct soldered down 32/64GB eMMC
7. BT Baery connector
8. CPU Bay Trail-M SoC
9. MSATA mSATA supports mSATA SSD

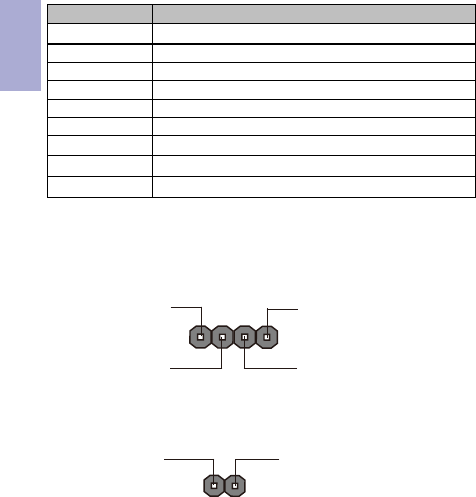

Header Pin Definion
Table of Motherboard Components
UART_DBG
BT (Baery)
PIN 1
+3VSB Ground
TXD RXD
PIN 1
+VBATGND
