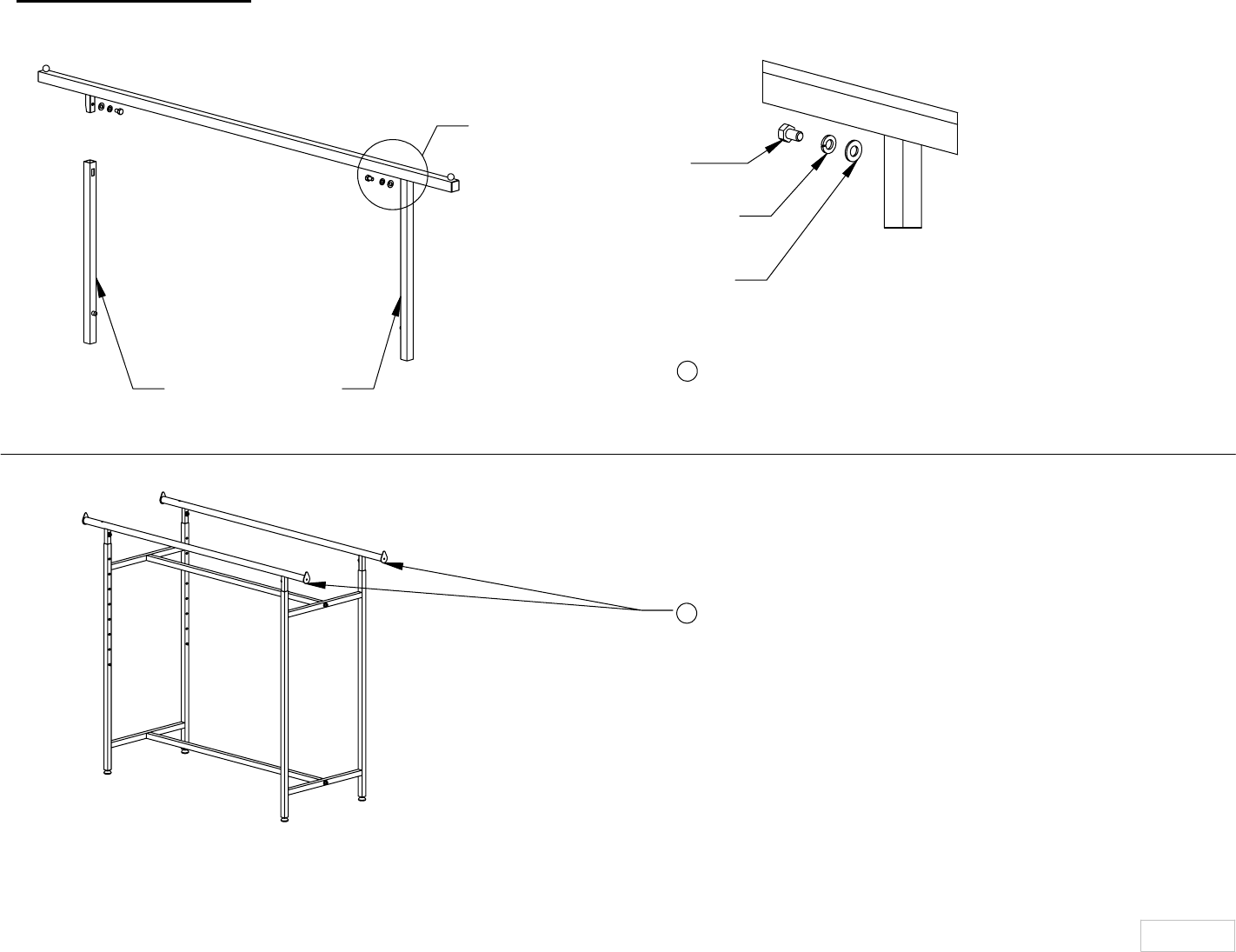

K49 HANGBAR UPRIGHTS

DETAIL A

SCALE 1 : 4

5/16"-18 X 1/2" LONG

HEX HEAD BOLT

SPRING LOCK WASHER

LOCK WASHER

ASSEMBLE AS SHOWN WITH WASHERS

ON THE K40 RACK, MAKE

SURE BOTH HANGBARS ARE

ON THE SAME LEVEL

K49 INSTRUCTIONS

PAGE 1

PAGE 1
K49 INSTRUCTIONS A 5/16"-18 X 1/2" LONG HEX HEAD BOLT SPRING LOCK WASHER LOCK WASHER 1 DETAIL A SCALE 1 : 4 ASSEMBLE AS SHOWN WITH WASHERS K49 HANGBAR UPRIGHTS 2 ON THE K40 RACK, MAKE SURE BOTH HANGBARS ARE ON THE SAME LEVEL PAGE 1
PAGE 2
FROM STEP 1 3 TAKE ASSEMBLED HANGBAR FROM STEP 1 AND INSERT IT INTO THE K49 LOWER UPRIGHTS. K49 LOWER UPRIGHT QTY. 2 B HANGBAR BRACKET 5/16"-18 X 1/2" LONG HEX HEAD BOLT DETAIL B SCALE 1 : 4 4 WITH TWO PEOPLE, CAREFULLY LIFT AND CENTER STEP 3 ONTO THE K40 RACK. ASSEMBLE AS SHOWN IN 4 PLACES.
