Step 3 – Conducting the Test
With the Gateway properly connected to computer through the USB to RS485 Network Interface adapter, activate
the dispenser. Successful events will appear on terminal session as seen in figure 11. Test the connection
between the Gateway and the Computer by pressing the letter “t” [enter]. You will see the current date time group
that is configured on the Gateway.

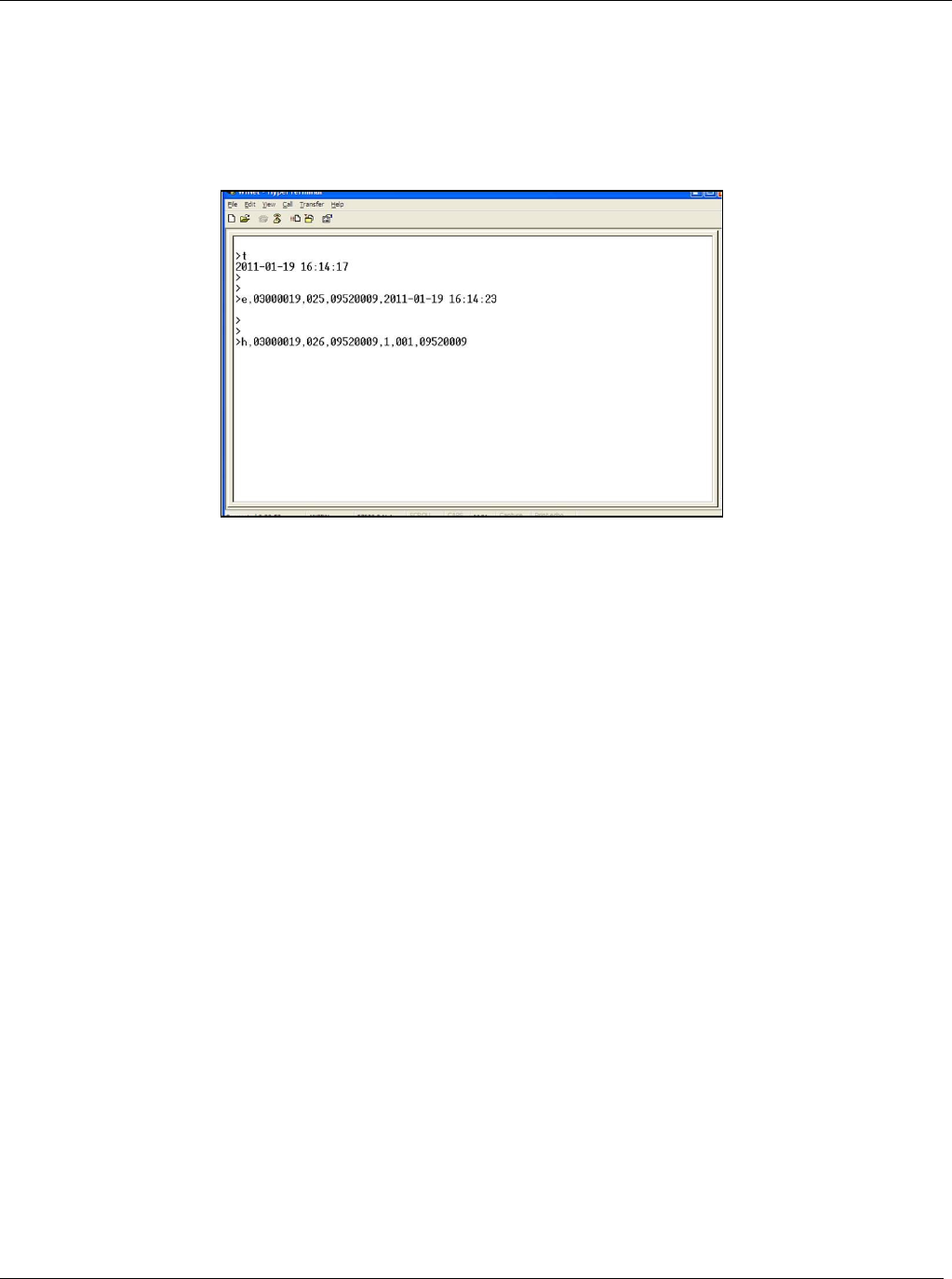

Figure 11 – Successful Tag Test result
A dispense event occurs when a dispenser, equipped with a tag, is activated. Successful dispense events will
appear on screen preceded by a lower case letter e and will look like this:
e,03000019,025,09520009,2011-01-19 16:14:23
The fields are defined as follows:
e = Dispense event
03000019 = Device identification number (unique for each device)
025 = Nonce (Unique identifier - increments by 1 each event)
09520009 = First Responder ID (FRID)
2011-01-19 = Date of event
16:14:23 = Time of event
A heartbeat occurs at regularly predetermined intervals and is designed to announce to the gateway that the
device is online and operational. Successful heartbeats will appear on screen preceded by a lower case letter h
and will look like this:
h,03000019,026,09520009,1,001,09520009
The fields are defined as follows:
h = Heartbeat
03000019 = Device identification number (unique for each device)
026 = Nonce (Unique identifier - increments by 1 each event)
09520009 = First Responder ID (FRID)
1 = Device Type (1=Tag; 2=Hub)
001 = FRQ (First Responder Link Quality)
