Connecting the Tag to the Dispenser
Step 1 – Remove Touch-free Dispenser Gearbox
Open the cover of the dispenser and remove the touch-free gearbox. To remove the touch-free gearbox, depress
the retention clip located at the top of the touch-free gearbox to unlatch and pivot forward to remove.
Step 2 – Install Cable
Locate the 6-pin port on the back of the touch-free gearbox and insert the free end of the detachable cable into
the port (see figure 7).

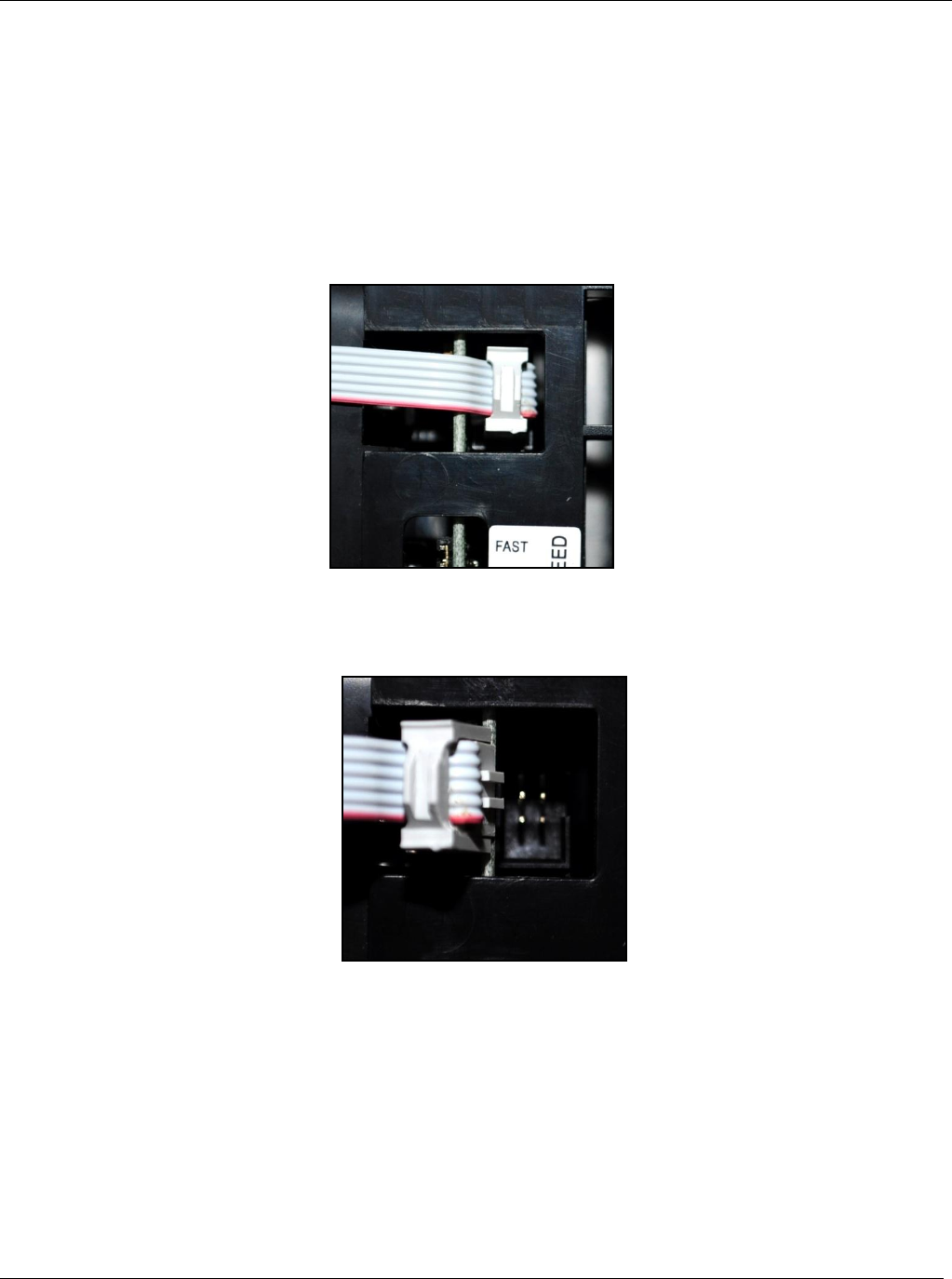

Figure 7
Insure that the two raised tabs on the top of the cable end are inserted into the corresponding opening in the 6-pin
port on the back of the touch-free gearbox (see Figure 8).
Figure 8
