Pole Saw User Manual
Table Of Contents
- Introduction
- Table of Contents
- Safety
- Emission Control (exhaust & evaporative)
- Description
- handle shaft / power head
- throttle linkage and ignition leads
- cutting attachment to drive shaft installation
- saw chain tension adjustment
- Operation
- fuel
- lubricating the guide bar and saw chain
- adjusting automatic oiler
- starting cold engine
- starting warm engine
- stopping engine
- pruning techniques
- Maintenance
- air filter
- fuel filter
- spark plug
- cooling system cleaning
- exhaust system
- carburetor adjustment
- guide bar and saw chain replacement
- filing saw chain
- Troubleshooting
- Storage
- Specifications
- Warranty Statements
- Servicing Information
14
E
F

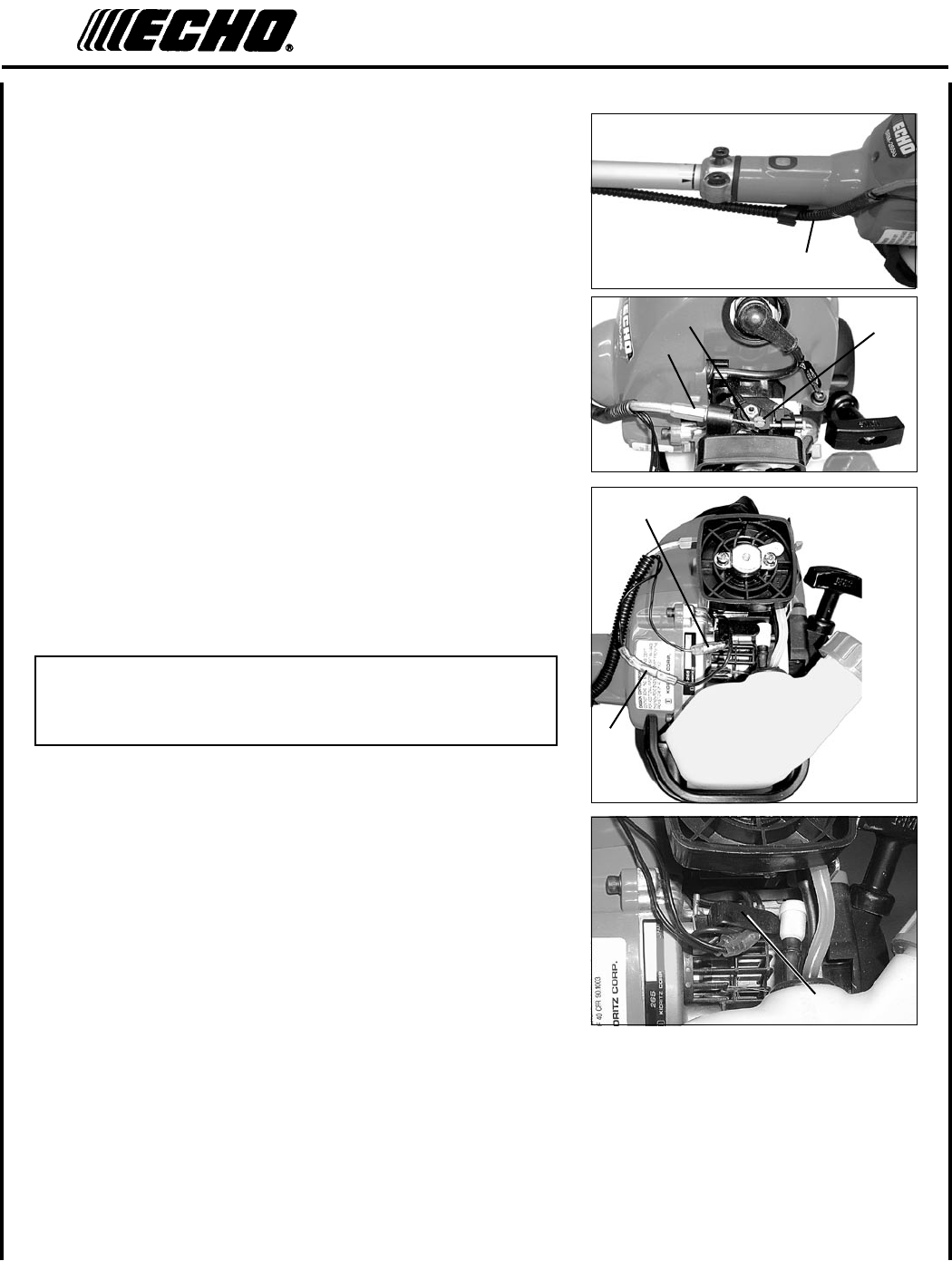

t h r o t t l e l I n k a g e a n d I g n I t I o n l e a d s
1. Install throttle linkage cable into fan cover clip (A).
2. Close choke and remove air lter cover.
3. Place throttle linkage (B) through adjustment xture (C) and install
wire end into large carburetor throttle swivel hole (D). Check
throttle for freedom of movement and that wide open throttle / low
idle extremes are adjusted properly. The throttle linkage must be
adjusted by moving the adjustment xture (C). Consult with your
Echo Dealer for correct adjustment procedure.
4. Connect 2 ignition stop leads (E, F) from throttle cable tubing to 2
ignition leads (E, F) on engine.
CAUTION:
Assure ignition terminals are completely covered by clear plastic
sleeves.
5. Secure ignition leads against engine housing with clip (G).
6. Install air lter and cover.
G
B
C
D
A
