SAFETY CS-310
6 X7503275300
© 1/2017 ECHO Inc.
1. With a basic understanding of
kickback, you can reduce or
eliminate the element of surprise.
Sudden surprise contributes to
accidents.
2. Keep a good firm grip on the saw
with both hands, the right hand
on the rear handle, and the left
hand on the front handle, when
the engine is running. Use a firm
grip with thumbs and fingers encircling the chain saw handles. A firm
grip will help you reduce kickback and maintain control of the saw.
Don’t let go.
3. Make sure that the area in which
you are cutting is free from
obstructions. Do not let the nose
of the guide bar contact a log,
branch, or any other obstruction
which could be hit while you are
operating the saw.
4. Cut at high engine speeds.
5. Do not overreach or cut above
shoulder height.
6. Follow manufacturer’s sharpening and maintenance instructions for the
saw chain.
7. Only use replacement bars and chains specified by the manufacturer or
the equivalent.
Correct Use Of Chain Brake
Chain Brake Operation
• Set the lever in the unlocked
position before starting to cut.
• If the brake is tripped by kickback
reaction, the chain will stop
immediately. Release the throttle to
avoid possible damage to the
engine or clutch.
• Do not attempt to operate the engine with the brake locked.

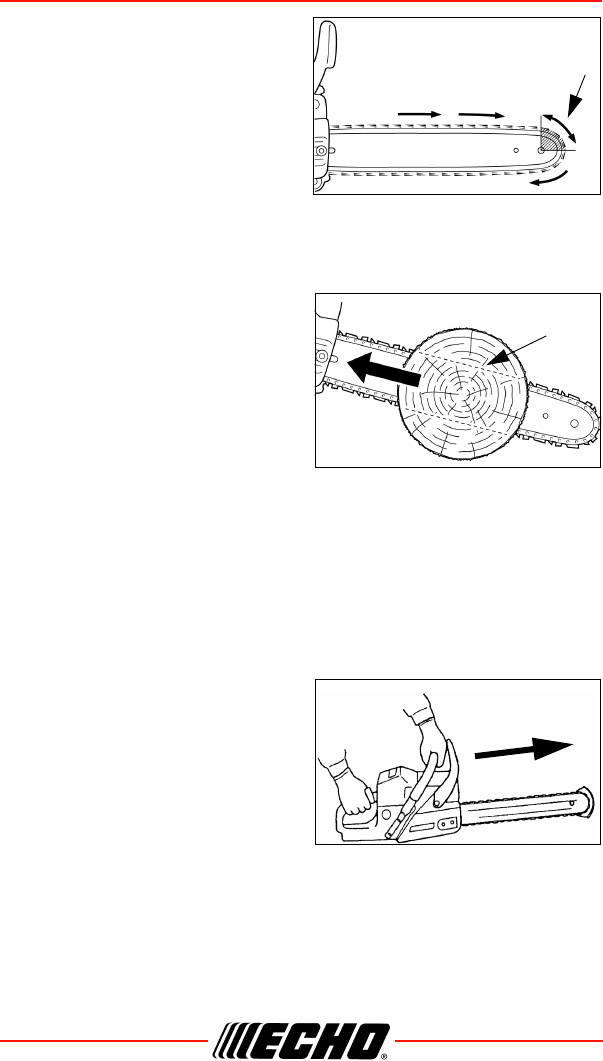

Kickback Danger Zone
Linear kickback
Kickback
Pinch
Locked
