MAINTENANCE CS-310
44 X7503275300
© 1/2017 ECHO Inc.

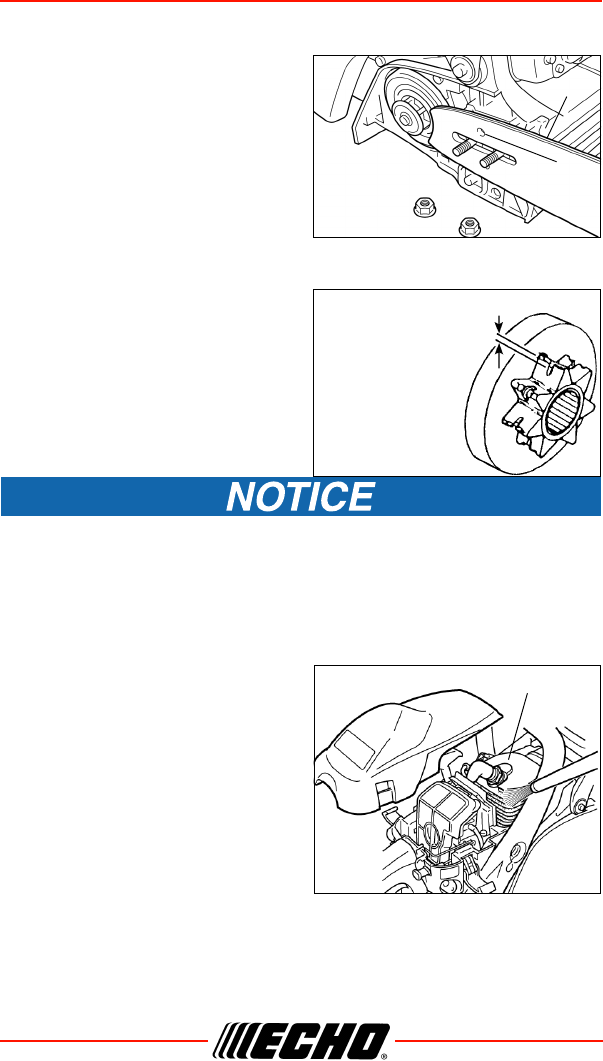

Guide Bar
1. Clean before using.
2. Clean the groove (A) of the guide
bar with a small screwdriver.
3. Clean oil holes (B) with a wire.
4. Invert guide bar periodically.
5. Clean the bar mount area before
installing of the bar.
Sprocket
• A damaged sprocket will cause
premature damage or wear of saw
chain.
• When the sprocket has worn 0.5
mm (0.020 in.) or more, replace it.
• Check sprocket when you install
new chain. Replace it if worn.
Some tree sap and resins are corrosive. Thoroughly wash the guide
bar and sprocket areas after each use, then coat metal parts with light
oil.
Cooling System Cleaning
• Check periodically.
• Clogged fins will result in poor
engine cooling.
1. Remove cylinder cover and
starter.
2. Use compressed air or wooden
tool to remove dirt and dust from
between fins to let cooling air
pass easily.
Spark Arrestor Muffler
• The spark arrestor muffler controls the exhaust noise and prevents hot,
glowing particles of carbon from leaving the muffler.
A
B
Worn: 0.5 mm (0.020 in.)
Cylinder fins
