i.LON SmartServer 2.0 Programmer’s Reference

2-10

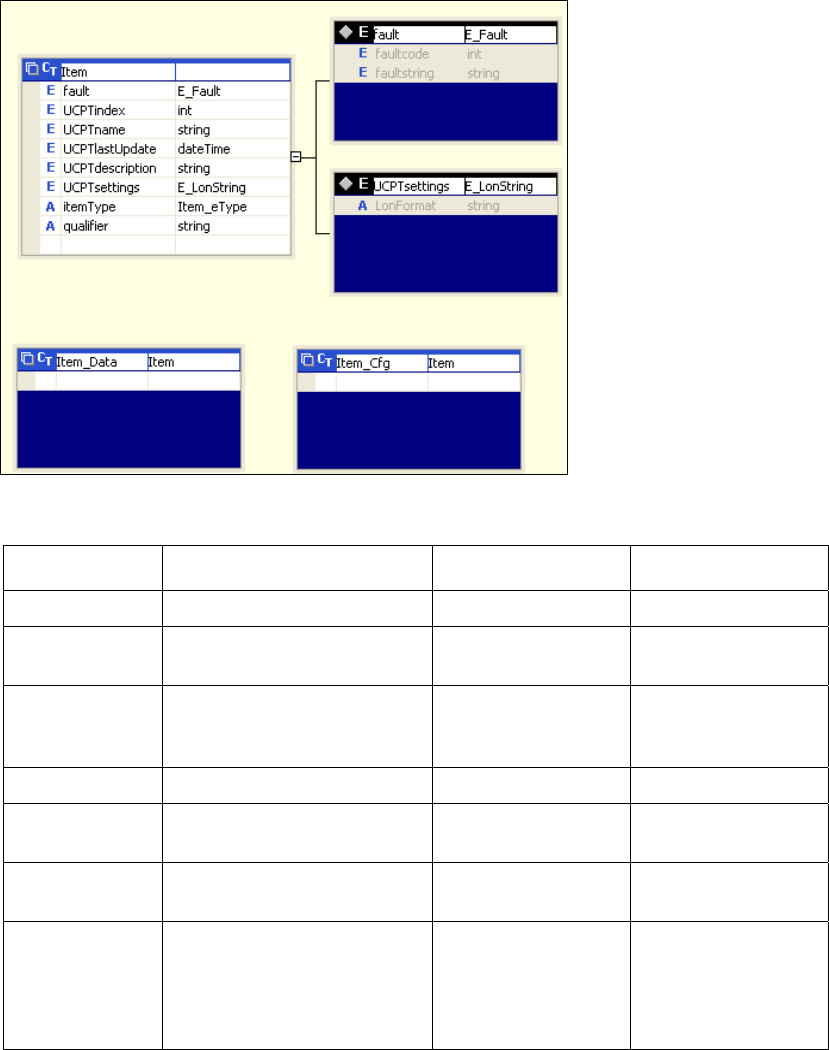

Because Item is the base class for all types passed in the Get /Set /Delete, Read /Write, and Invoke

functions, you can pass any kind of configuration or state information in the corresponding message.

Message Name Description Request Object Response Object

List Retrieves a list of Items. xSelect Item_Coll

Get Retrieves the configuration of

items.

Item_Coll Item_CfgColl

Set Creates items or overwrites

the configuration of existing

items.

Item_CfgColl Item_Coll

Delete Deletes an item. Item_Coll Item_Coll

Read Reads the value and status of

items.

Item_Coll Item_DataColl

Write Writes values or states to

items.

Item_DataColl Item_Coll

Invoke Sends a network management

command to a L

ONWORKS

device or calls special

functions on applications or

data points.

Item_Coll Item_Coll

All requests for information (Read and Get, and Delete and Invoke messages) are called with Item_Coll

as the collection type. Item_Coll is a collection of Item and can thus contain any type (also Item_Cfg

and Item_Data).

The Set-Response and Get-Request messages use the Item_CfgColl, which is a collection of types

containing configuration data. The Read-Response and Write-Request messages use the

Item_DataColl collection, which is a collection of types containing dynamic data.

Item_Data and Item_Cfg inherit from Item
