FTXL Hardware Guide 41

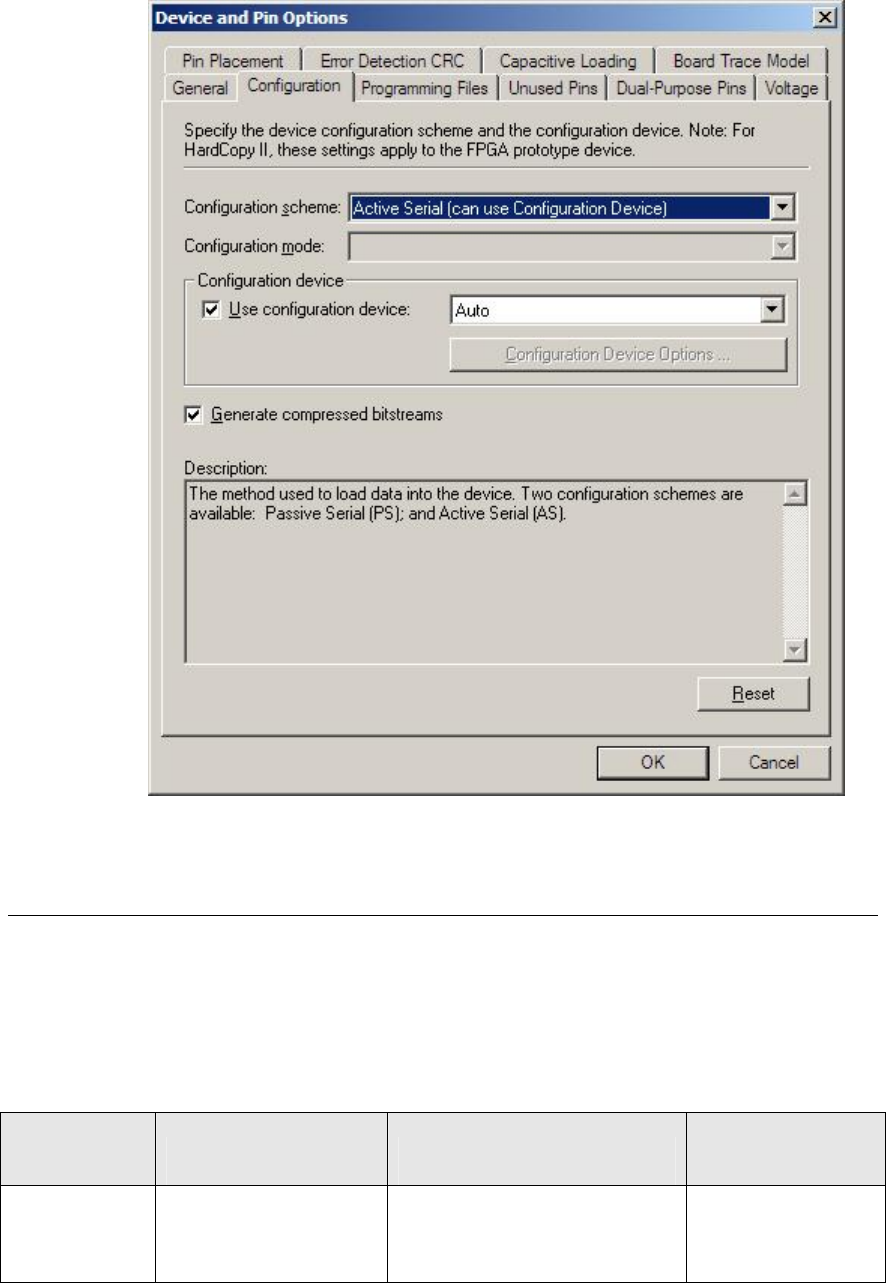

Figure 17. Quartus II Device and Pin Options Dialog
See the Altera
Configuration Handbook
for more information about FPGA
configuration devices.
FTXL Components
The FTXL Developer’s Kit includes components for the Altera SOPC Builder tool
and the Quartus II software, as listed in
Table 14. These components are
installed to the [
NiosEDS
]\components\FTXL directory. An FTXL device must
include all of these components.
Table 14. FTXL Components
Component
Name
Class Name File Names Description
FTXL Parallel
Interface
Delay
FTXL_PIO_Delay FTXL_PIO_Delay.bsf
FTXL_PIO_Delay.bdf
Parallel interface
timing delay
circuit
