FTXL Hardware Guide 33
Read Handshake
Handshake (D0)
ready
A0 high -> D0
is handshake
R/W~ low -> read
Write length = 0x13
R/W~high -> write
A0 low -> D0 is
data

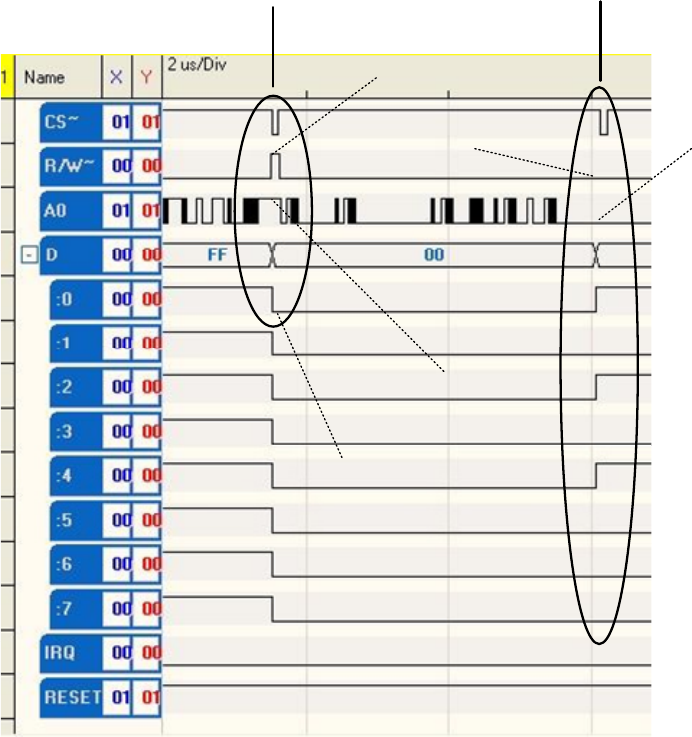

Figure 13. Timing Diagram for Writing the Length Byte
Figure 14 on page 34 shows a detailed timing diagram for writing the first two
bytes of the data. The figure also shows the read handshake for each byte of
data.
