FTXL Hardware Guide 31

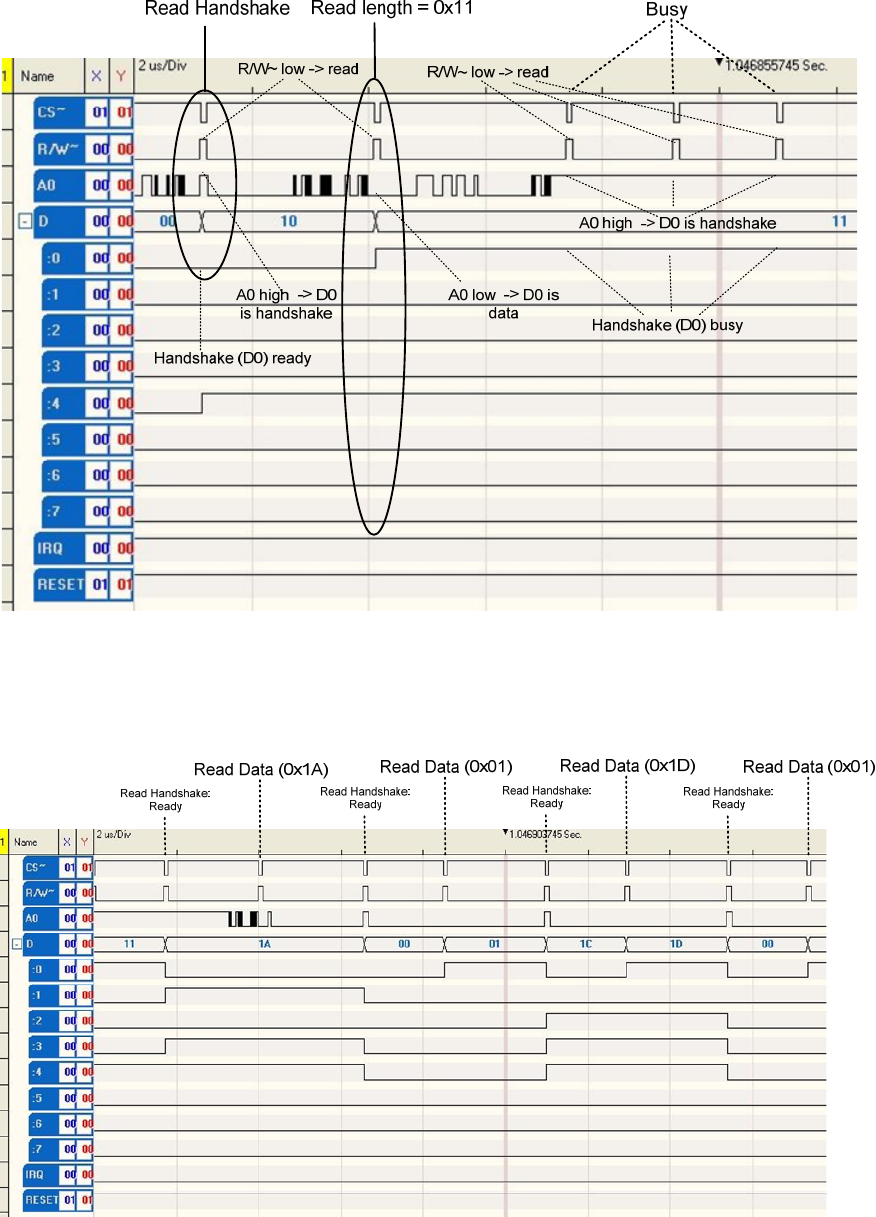

Figure 10. Timing Diagram for Reading the Length Byte
Figure 11 shows a detailed timing diagram for reading the data. The figure also
shows the read handshake for each byte of data. However, the figure shows only
the first three bytes of the data.
Figure 11. Timing Diagram for Reading Data
