FTXL Hardware Guide 11
Jumper Settings
The DBC2C20 development board includes three sets of jumpers (P10, P19, and
P21). For the FTXL Developer’s Kit, all of these jumpers remain unmounted.
Connectors and Headers
The DBC2C20 development board includes 15 connectors and headers. The
FTXL Developer’s Kit uses only the connectors that are shown in
Figure 2 and
listed in
Table 5.

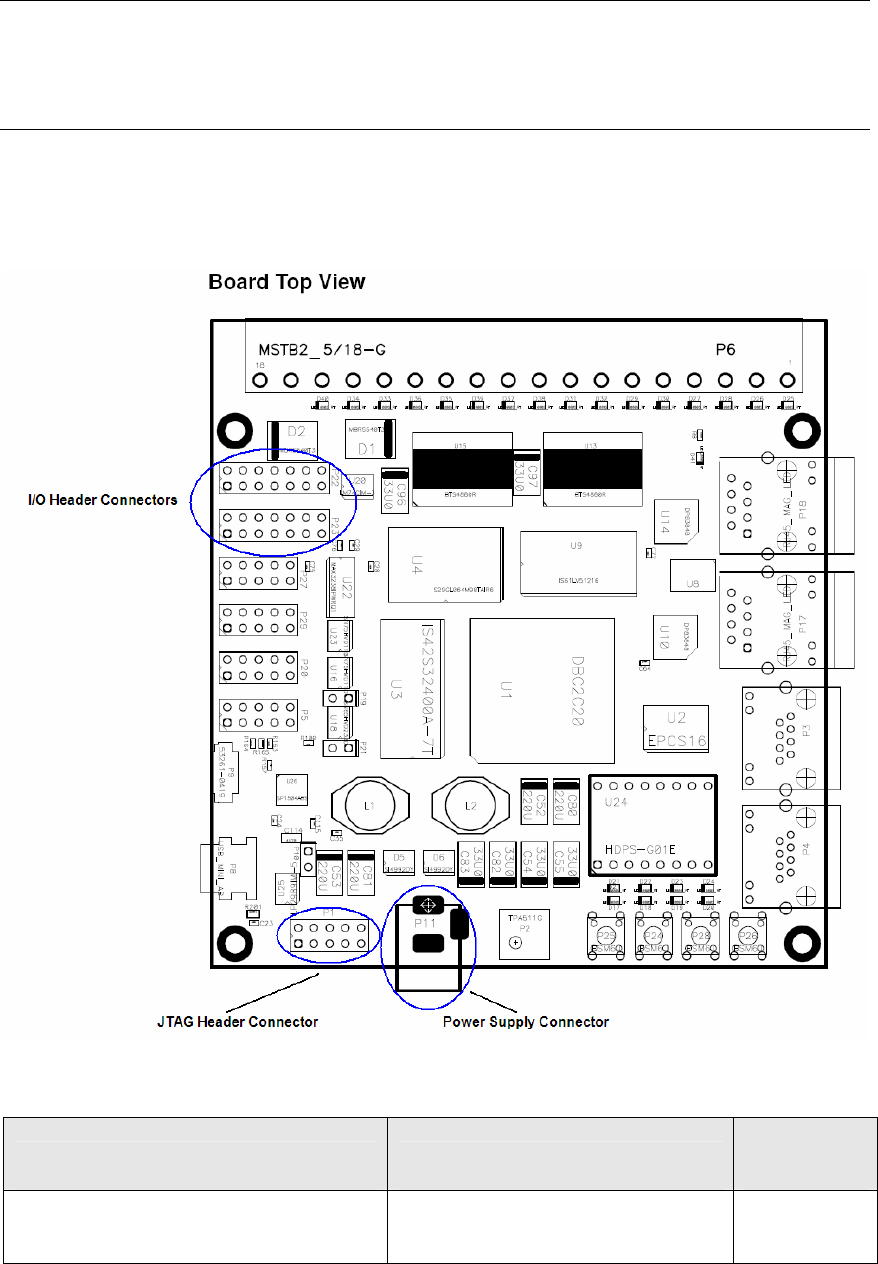

Figure 2. Connectors and Headers on the DBC2C20 Development Board
Table 5. FTXL Developer’s Kit Connectors and Headers on the DBC2C20 Development Board
FTXL Function DBC2C20 Function
DBC2C20
Name
Header for programming the Cyclone
II FPGA and flash memory
JTAG Connector for the Altera
USB-Blaster download cable
P1
