Datasheet

Product Data Sheet RET97-25/14/2TDP-052
02/01/2019 page 4 of 14
Wire Color Operation Wire size Insulation diameter
1 red + UB AWG 18 2,2 mm
2 blue - GND AWG 18 2,2 mm
3 violet PWM AWG 22 1,7 mm
4 white Tacho AWG 22 1,7 mm

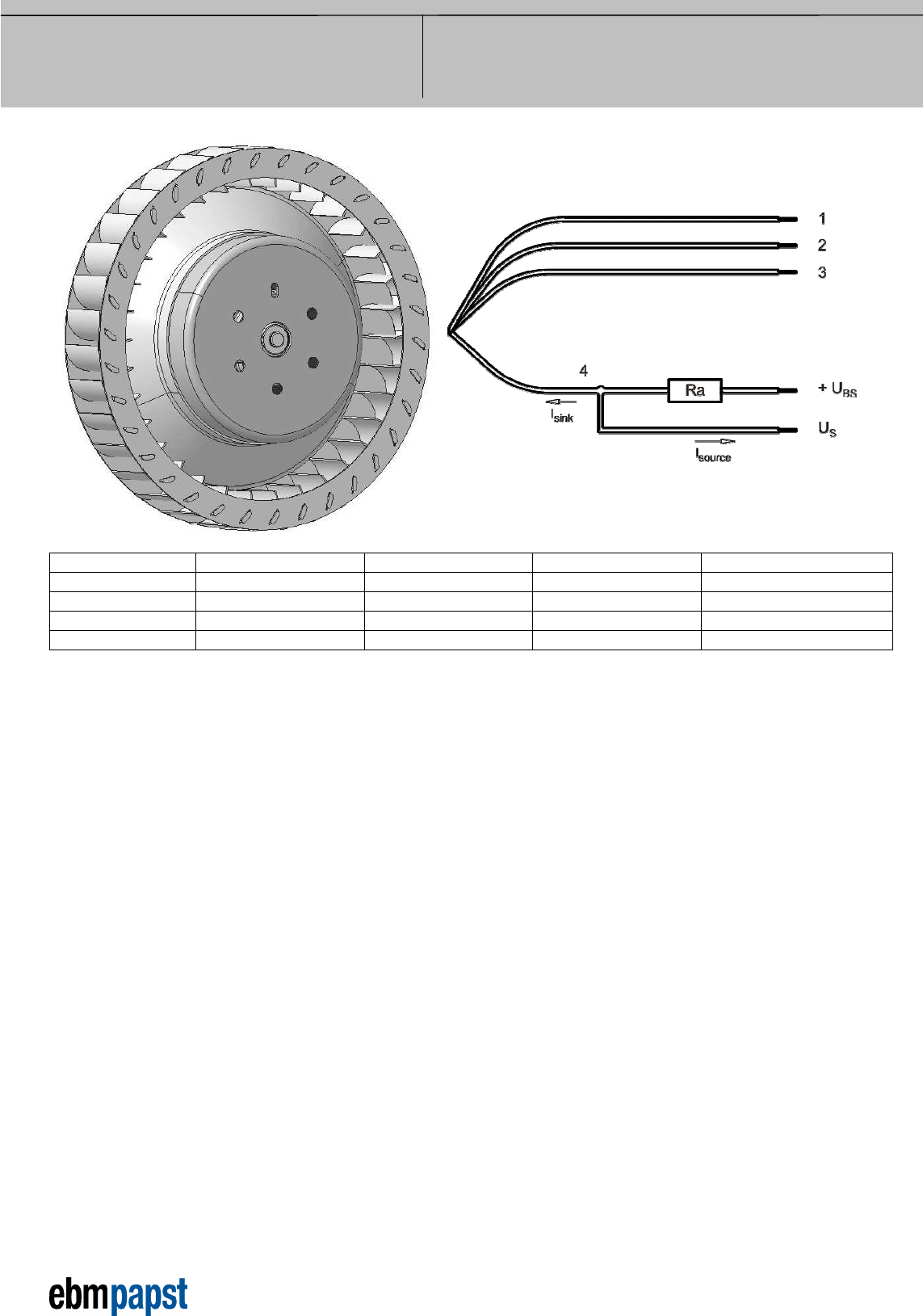

The auxilliaries shown on the schematic diagram (which are required for the intended use) are not part of our delivery.
