9.3

Metering Devices, Protective Relays, Software and Connectivity

Metering Devices

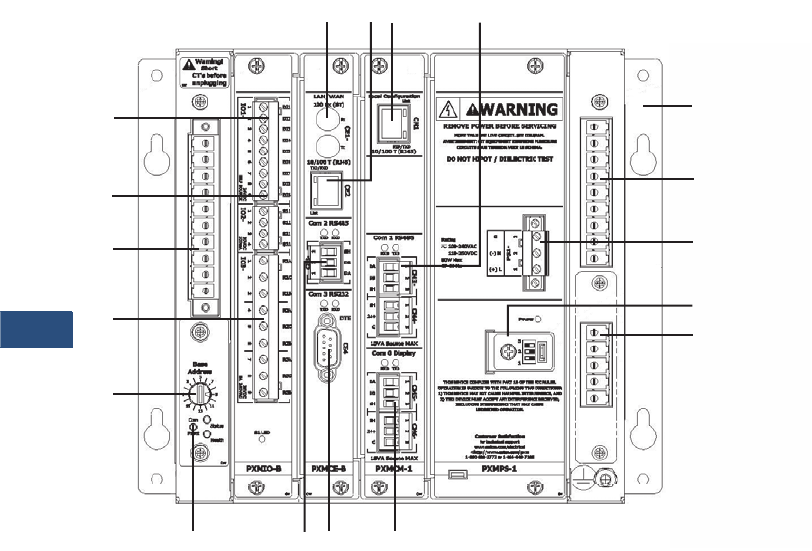

Power Xpert Meter 4000/6000/8000 Module Layout

I/O Card

a Digital inputs 1–8 (option)

b Solid-state outputs 1–2 (option)

c Relay outputs 1–3 (option)

CT and Voltage Connections

d CT input connections

e Standard three-phase voltage phase inputs

f Aux. channel voltage inputs (option)

Communication Expansion Card (LAN/WAN Ethernet Networking)

g 100FX ST-type Ethernet (multi-mode) (option)

h 10/100Base-T Ethernet (option)

i RS-485 (two-wire w/shield)—24V accessory power (com 2)

Standard Features

j Local RJ-45 config. port (non-networkable Ethernet)

k RS-485 (two-wire w/shield) Modbus RTU (com 1)

l Meter mounting brackets

m Sealable mode switch cover

n Control power (100–240 Vac and 110–250 Vdc) (±20%)

o Display RS-485 Network port (up to 15 meters)—24V accessory power (com 0)

p RS-232 (Tx Rx) Modbus RTU (com (3) (option)

q Meter base address

r Com Reset Button

ghj k

oip
