DPONI
Product Description
The DeviceNet Product
Operated Network
Interface (DPONI) enables
communication between a
DeviceNet network master
station and a host device in a
Master/Slave format over a
DeviceNet network. The
DPONI is compatible with the
MP-3000 and the MP-4000.
The DPONI is powered both
by the host product to which
it is attached and by the
DeviceNet network. The
DPONI uses opto-couplers
to isolate the two power
systems.
The DPONI communicates
at 125, 250 or 500 Kbps
selected via a front panel
DIP switch. All products on
the DeviceNet network
must be set at the same
communication rate.
The DPONI has a bi-color
network/module status
LED that functions in
accordance with the
DeviceNet specification.
An additional monocolor
LED flashes while the DPONI
is receiving a message from
the host device.
Features
Eaton’s DPONI
Product Selection
DPONI
Technical Data and Specifications
Temperature
●
–20ºC to 70ºC
Humidity
●
5%–90% noncondensing
Power
●
11–27 Vdc, 40 mA maximum
Speed
●
125, 250 or 500 Kbps
Communications
●
Standard five-wire
CAN connection

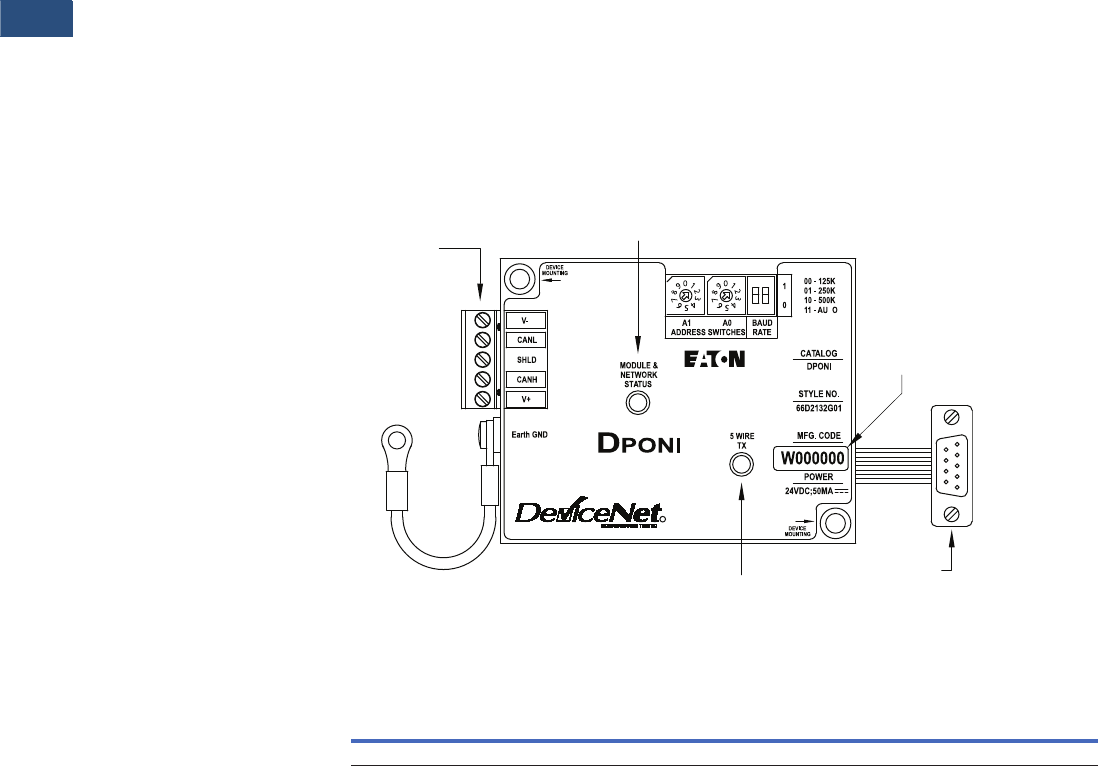

DEVICE
MOUNTING
T
R
DeviceNet
Network
Connection
(5 point plug)
Earth
GND
DeviceNet
Status
Data
Code
INCOM
Status
IQ Host
Device
Connection
Description
Catalog
Number
The DeviceNet Product Operated Network Interface DPONI
