Metering Devices, Protective Relays, Software and Connectivity
Connectivity Options
MINTII RS-232 Converter
Contents
Description Page
Power Xpert Gateways. . . . . . . . . . . . . . . . . . . . . . V3-T9-259
Power Xpert Ethernet Switches . . . . . . . . . . . . . . . V3-T9-272
Power Xpert Gateway
Series 1000 Card—Power Distribution Unit . . . . . . V3-T9-276
Power Xpert Gateway
Series 2000 Card—Uninterruptible Power Supplies V3-T9-279
mMINT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-282
MINTII RS-232 Converter
IPONI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-285
DPONI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-286
MPONI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-287
I/O Devices Digital Input Module (DIM) . . . . . . . . . V3-T9-288
Addressable Relay II . . . . . . . . . . . . . . . . . . . . . . . V3-T9-290
Breaker Interface Module II (BIM II) . . . . . . . . . . . V3-T9-293
Sub-Network Master Local Display (SMLD). . . . . . V3-T9-297
IMPCABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-299
MINTII RS-232 Converter
Product Description
Converts a network of Power
Management Software
devices to ASCII RS-232
format for access through
a serial port of a personal
computer, laptop, or
Programmable Logic
Controller.

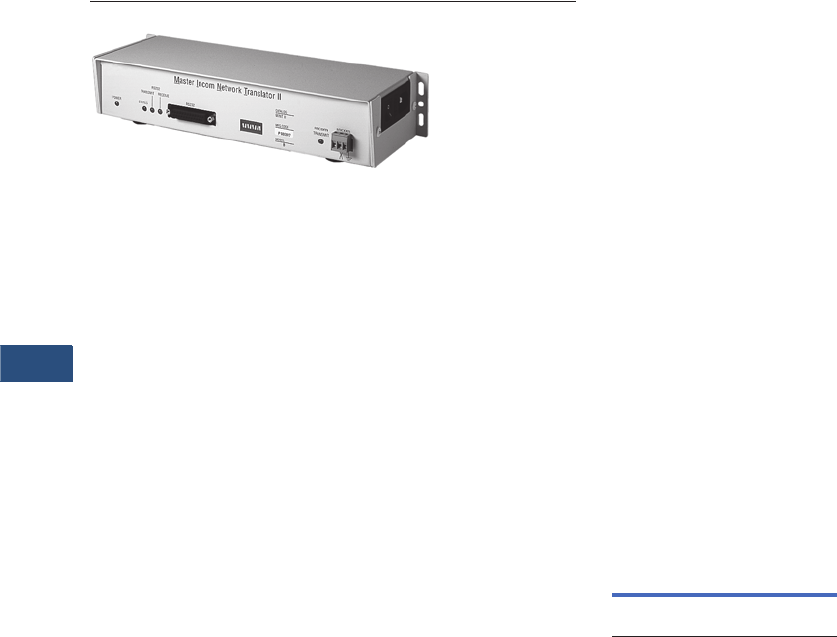

Displayed Parameters
●
Eaton’s MINTII provides
access to all parameters
monitored over the Power
Management Software
network
●
Supports INCOM networks
up to 8500 feet (2590m) in
distance and device counts
up to 1000
Application Description
The Master INCOM Network
Translator
II (MINTII) converts
the twisted shielded pair
network of INCOM devices to
an RS-232 signal. This signal
can be accessed by PLCs,
computer serial ports,
building management system
serial interface cards. The
MINTII is also often applied
as an interface to standard
line drivers and converters to
allow communication through
dedicated telephone lines,
dial-up modems, fiber-optic
line drivers, radio frequency
or wireless modems.
Product Selection
MINTII RS-232 Converter
Technical Data and
Specifications
Temperature
●
0°C to 60°C
Humidity
●
0% to 95%
Power
●
120V
Speed
●
1200, 2400 and 9600 baud
(INCOM), 19.2K baud
(RS-232)
Communications
●
INCOM, RS-232
Dimensions
●
Suitable for panel
mounting or desktop use
●
120 Vac power cord
included for plug-in to
standard duplex receptacle
●
Height: 2.25 inches
(57.2 mm)
●
Width: 11.5 inches
(292.1 mm)
●
Depth: 4.25 inches
(108.0 mm)
Description
Catalog
Number
Master INCOM Network
Translator II
MINTII
