9.5
Metering Devices, Protective Relays, Software and Connectivity
Connectivity Options
Power Xpert Gateway Series 2000 Card
Contents
Description Page
Power Xpert Gateways . . . . . . . . . . . . . . . . . . . . . . V3-T9-259
Power Xpert Ethernet Switches . . . . . . . . . . . . . . . V3-T9-272
Power Xpert Gateway
Series 1000 Card—Power Distribution Unit . . . . . . V3-T9-276
Power Xpert Gateway
Series 2000 Card—Uninterruptible Power Supplies
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-280
Standards and Certifications . . . . . . . . . . . . . . . V3-T9-280
Product Selection . . . . . . . . . . . . . . . . . . . . . . . V3-T9-281
Technical Data and Specifications . . . . . . . . . . . V3-T9-281
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-281
mMINT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-282
MINTII RS-232 Converter. . . . . . . . . . . . . . . . . . . . V3-T9-284
IPONI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-285
DPONI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-286
MPONI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-287
I/O Devices Digital Input Module (DIM) . . . . . . . . . V3-T9-288
Addressable Relay II. . . . . . . . . . . . . . . . . . . . . . . . V3-T9-290
Breaker Interface Module II (BIM II) . . . . . . . . . . . V3-T9-293
Sub-Network Master Local Display (SMLD) . . . . . . V3-T9-297
IMPCABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-299

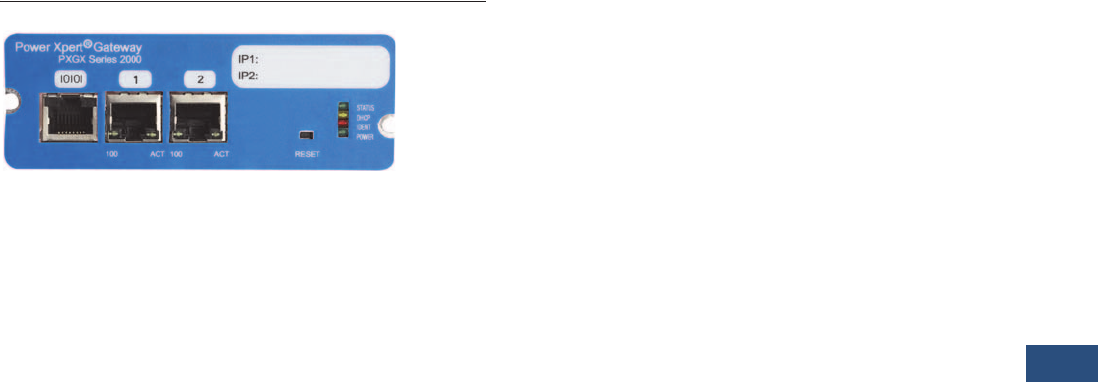

Power Xpert Gateway
Series 2000 Card—Uninterruptible Power Supplies
Product Description
The Power Xpert Gateway
Series 2000 Card (PXGX
2000) provides Web-enabled,
real-time monitoring of
Powerware Uninterruptible
Power Supplies (UPS)
through standard on-board
Web pages, Power Xpert
Software or third-party
software.
An integral part of the Power
Xpert Architecture, which
provides end-to-end
PowerChain solutions, the
PXGX 2000 provides a central
point to connect distribution
products to an Ethernet
network.
Information is presented
in organized, user-friendly
Web pages and include
the following:
●
UPS system identification
●
Voltage
●
Current
●
Frequency
●
Energy
●
Output Power
●
Power—full load %
●
Battery information
●
History and
maintenance
●
Run time remaining
●
Voltage
●
% battery left
