Power Xpert Gateway Series 1000 Card
Contents
Description Page
Power Xpert Gateways. . . . . . . . . . . . . . . . . . . . . . V3-T9-259
Power Xpert Ethernet Switches . . . . . . . . . . . . . . . V3-T9-272
Power Xpert Gateway
Series 1000 Card—Power Distribution Unit
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-277
Product Selection . . . . . . . . . . . . . . . . . . . . . . . V3-T9-278
Technical Data and Specifications . . . . . . . . . . . V3-T9-278
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-278
Power Xpert Gateway
Series 2000 Card—Uninterruptible Power Supplies V3-T9-279
mMINT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-282
MINTII RS-232 Converter . . . . . . . . . . . . . . . . . . . V3-T9-284
IPONI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-285
DPONI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-286
MPONI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-287
I/O Devices Digital Input Module (DIM) . . . . . . . . . V3-T9-288
Addressable Relay II . . . . . . . . . . . . . . . . . . . . . . . V3-T9-290
Breaker Interface Module II (BIM II) . . . . . . . . . . . V3-T9-293
Sub-Network Master Local Display (SMLD). . . . . . V3-T9-297
IMPCABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-299
Power Xpert Gateway
Series 1000 Card—Power Distribution Unit
Product Description

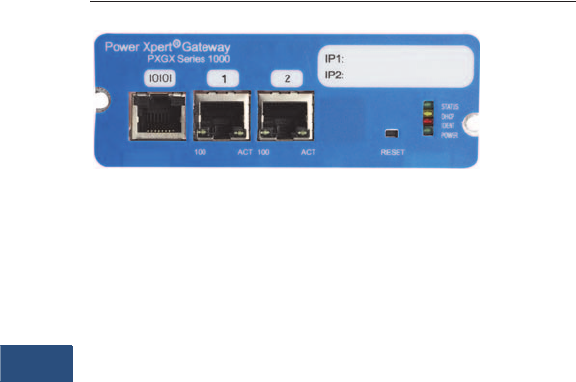

The Power Xpert Gateway
Series 1000 Card (PXGX
1000) provides Web-enabled,
real-time monitoring of
Powerware Power
Distribution Units (PDUs),
Rack Power Modules (RPM)
and Powerware Remote
Power Panels (RPPs) through
standard on-board Web
pages, Power Xpert Software
or third-party software.
An integral part of the Power
Xpert Architecture, which
provides end-to-end
PowerChain solutions, the
PXGX 1000 provides a central
point to connect distribution
products to an Ethernet
network.
Information is presented
in organized, user-friendly
Web pages and include
the following:
●
PDU system identification
●
Graphic panel layouts
●
Voltage
●
Current
●
Frequency
●
Energy
●
Power
●
THD (current and voltage)
