9.5
Metering Devices, Protective Relays, Software and Connectivity
Connectivity Options
Convenient Network Expansion
Power Xpert Ethernet Switches
Contents
Description Page
Power Xpert Gateways. . . . . . . . . . . . . . . . . . . . . . V3-T9-259
Power Xpert Ethernet Switches
Product Selection . . . . . . . . . . . . . . . . . . . . . . . V3-T9-273
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-273
Technical Data and Specifications . . . . . . . . . . . V3-T9-273
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-275
Power Xpert Gateway
Series 1000 Card—Power Distribution Unit . . . . . . V3-T9-276
Power Xpert Gateway
Series 2000 Card—Uninterruptible Power Supplies V3-T9-279
mMINT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-282
MINTII RS-232 Converter . . . . . . . . . . . . . . . . . . . V3-T9-284
IPONI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-285
DPONI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-286
MPONI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-287
I/O Devices Digital Input Module (DIM) . . . . . . . . . V3-T9-288
Addressable Relay II . . . . . . . . . . . . . . . . . . . . . . . V3-T9-290
Breaker Interface Module II (BIM II) . . . . . . . . . . . V3-T9-293
Sub-Network Master Local Display (SMLD). . . . . . V3-T9-297
IMPCABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V3-T9-299

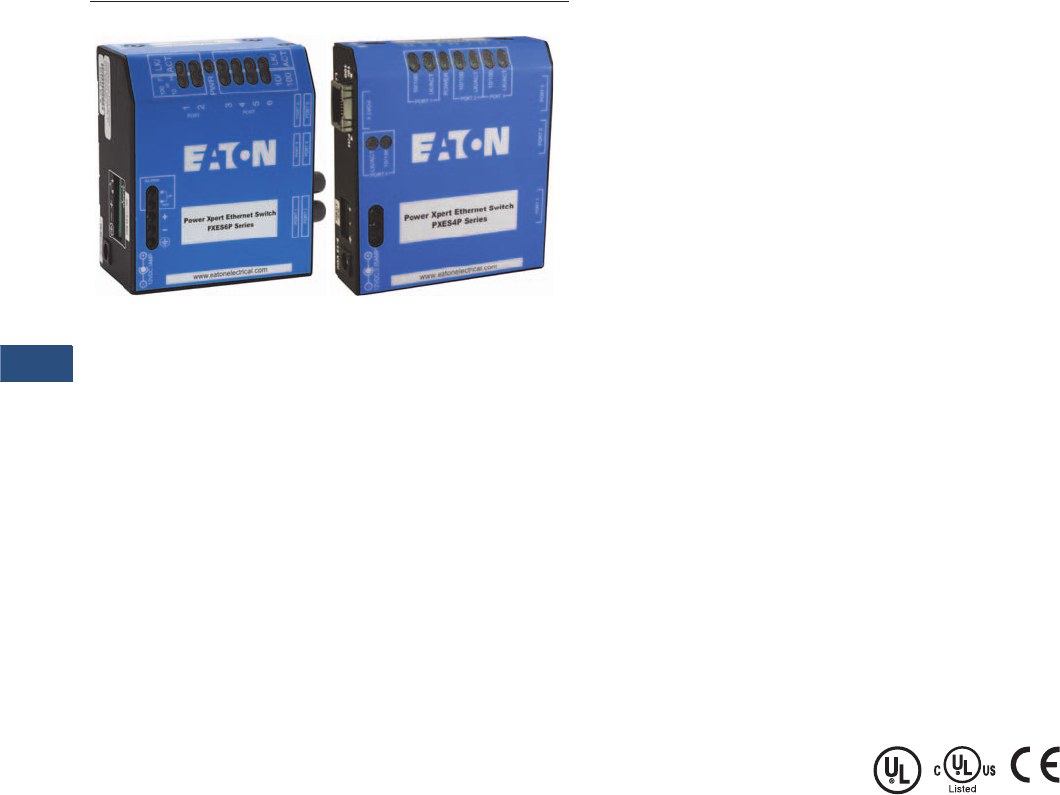

Power Xpert Ethernet Switches
Product Description
Eaton’s Power Xpert
Ethernet Switches are ideal
for extending Ethernet
networks via CAT5 wiring
or fiber in harsh, industrial
environments. Built with
high-grade components and
constructed using special
thermal techniques, PXE
Switches can withstand the
unpredictable conditions of
such environments.
Features
●
Simultaneous, full-duplex,
high-speed communication
on all ports—no network
performance bottlenecks
●
Hardened for factory
floor—ideal for both
industrial or data center
applications
●
Unmanaged, plug-and-play
implementation—no
software or additional
hardware required for
configuration
●
Seamlessly integrates into
Eaton’s Power Xpert
Architecture—quality
and reliability of Eaton
guaranteed
●
Mounting options include
standalone panel-
mounting, DIN rail
mounting, or 19-inch
standard rack mounting
PXES 6-Port Switch—10/100 Mb
with Optional 100 Mb Fiber
This compact switch provides
six Ethernet ports, with
flexible configurations. The
base models have one of
three options:
●
Two 100 Mb fiber and
four 10/100 copper ports
●
One fiber and five
copper ports
●
Six copper ports
PXES 4-Port Switch—10/100 Mb
For smaller applications
requiring fewer connection
points and no fiber, the 4-port
Power Xpert Ethernet Switch
is a versatile option. It
provides edge access
Ethernet ports in a convenient
and compact package.
Standards and Certifications
●
UL Listed (UL 60950)
●
cUL
●
CE
●
Emissions meet FCC Part
15, Class A
