Metering Devices, Protective Relays, Software and Connectivity
Connectivity Options
Features
The Eaton Power Xpert Gateway
400/600 Includes:
●
The Power Xpert
Gateway Module
●
Mounting provisions
and required hardware
for panel and DIN rail
mounting
●
CD-ROM: contains the
User Manual, Modbus
Register Maps, USB Driver
and other associated files

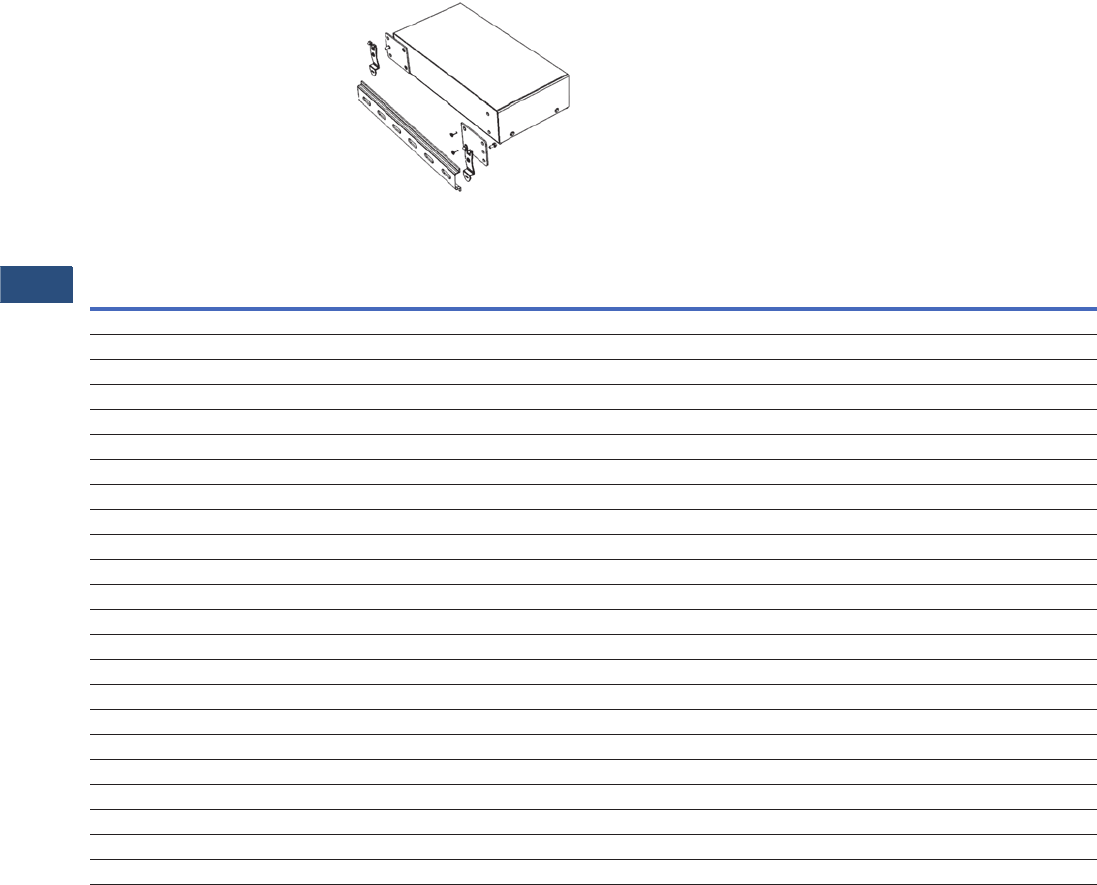

Power Xpert Gateway 400 with DIN Rail
Mounting (Brackets Included)
Features of the Power Xpert Gateway 400 vs. 600
Features PXG 400 PXG 600
Total number of supported devices 64 96
Maximum number of INCOM devices supported 64 64
Protocols supported on downstream devices: INCOM, QCPort and Modbus RTU Yes Yes
Number of downstream communication ports 23
Number of downstream protocols supported simultaneously 2 3
USB port for configuration Yes Yes
Modbus TCP/IP protocols supported Yes Yes
SNMP client access Yes Yes
INCOM slave action commands supported Yes Yes
INCOM date and time settings supported Yes Yes
Modbus writes supported Yes Yes
Device summary screen per communication port Yes Yes
Device waveform access and storage—COMTRADE file format No Yes
Set user-defined events No Yes
Trend graphs displayed No Yes
Data logs—csv file format, downloadable to Excel No Yes
Interval logs—csv file format, downloadable to Excel No Yes
Event notification via the Web interface Yes Yes
Event logs—csv file format, downloadable to Excel No Yes
E-mail notification on events and threshold alarms No Yes
Secure ethernet communications—SSL encryption Yes Yes
Secure communication ports via access control/trusted host list Yes Yes
Save and restore configuration file Yes Yes
